SS Pipe Repair Clamp 44.0 – 330.0 mm
A leaky water or gas pipe can cause significant difficulties, so it should be repaired as soon as possible but in a safe and long-lasting manner to prevent additional water or gas loss. Our stainless steel pipe fixing clamp can be used to fix broken or damaged pipelines permanently.
Pipe leak clamp is a type of device used to repair and seal a leaky pipeline. This is a long-term mending method. This procedure can be used to repair locally corrupted, damaged, and cracked pipes. Pipeline clamps are designed and manufactured by our organization. Our pipeline clamps may be customized to fit a variety of dimensions and pressure ratings. Tie-in, hot tapping, repair, leak sealing, and reinforcing are just a few of the uses. In our high-tech machine shop, we precisely machine our pipe repair clamps.
The transportation and transfer of fluids from wellheads to offshore process system pipework and pipelines to refining facilities are critical to the oil and gas industry’s safety, efficiency, and economic sustainability.
Pipe Repair Clamps
Pipe Repair Clamps
We have a wide range of superior quality Pipe Repair Clamps Manufacturer in India. We have all thermoplastic piping materials and working successfully for over 60 years.
What is the purpose of the pipe repair clamps?
The high pressure pipe repair clamps are essentially a pre-rolled stainless steel plate with a rubber lining secured with welded bolts and nuts. The clamp fasteners’ tensile strain is translated to radial pressure on the rubber liner, ensuring a secure seal.
Key Features
• Lightweight strap clamp for repair or intervention in a specific area
• Self-energised pipe-to-pipe sealing
• Installation is quick and straightforward.
• The low-profile design enables installation in tight spaces.
• Repair (Blind), Hot Tap (Flanged), or Encapsulation (Capped) seal housings are available.
• Low and high-pressure applications are both possible.
• Their design allows components to be reused for different pipe geometries.
• Sealing material is provided according to the application (NBR, HNBR, Viton, HPU)
• Carbon steel that complies with NACE standards is standard; alternative materials are available upon request.
• Single or multiple seal configurations are available.

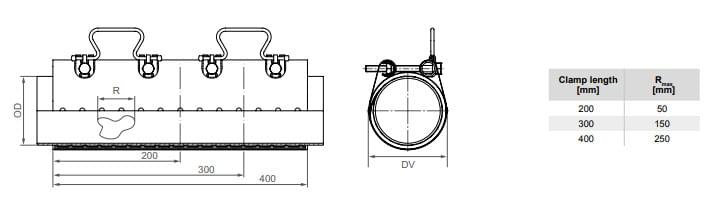

SS PIPE REPAIR CLAMP 44.0 - 330.0 mm | Technical Details
Components | Materials |
---|---|
Casing | AISI 304 |
Bolts | A2 – 70 |
Bars | AISI 304 |
Sealing sleeve | Temp.: | -5°C up to +40°C |
EPDM | Medium: | all qualities of water, waste water, air, solids and chemical products |
Sealing sleeve | Temp.: | -5°C up to +40°C |
NBR | Medium: | water, gas, oil, fuel and other hydrocarbons |
OD[mm] | Clamping range[mm] | PN 13[bar] | 2 locking bolts[mm] | 3 locking bolts[mm] | 4 locking bolts[mm] | DV[mm] | Torque rate[Nm] | Allen head[mm] | ThreadM… |
---|---|---|---|---|---|---|---|---|---|
44.0 | 44 – 48 | 16 | 200 | 300 | – | 60 | 20 | 17 | 10 |
48.0 | 48 – 52 | 16 | 200 | 300 | – | 64 | 20 | 17 | 10 |
54.0 | 54 – 58 | 16 | 200 | 300 | – | 70 | 20 | 17 | 10 |
60.0 | 60 – 67 | 16 | 200 | 300 | – | 79 | 20 | 17 | 10 |
67.0 | 67 – 74 | 16 | 200 | 300 | – | 86 | 20 | 17 | 10 |
70.0 | 70 – 77 | 16 | 200 | 300 | – | 89 | 20 | 17 | 10 |
75.0 | 75 – 83 | 16 | 200 | 300 | – | 65 | 20 | 17 | 10 |
82.0 | 82 – 89 | 16 | 200 | 300 | 400 | 101 | 20 | 17 | 10 |
87.0 | 87 – 95 | 16 | 200 | 300 | 400 | 107 | 20 | 17 | 10 |
88.0 | 88 – 98 | 16 | 200 | 300 | 400 | 110 | 20 | 17 | 10 |
95.0 | 95 – 104 | 16 | 200 | 300 | 400 | 116 | 20 | 17 | 10 |
108.0 | 108 – 118 | 16 | 200 | 300 | 400 | 120 | 20 | 17 | 10 |
113.0 | 113 – 123 | 16 | 200 | 300 | 400 | 135 | 20 | 17 | 10 |
118.0 | 118 – 128 | 16 | 200 | 300 | 400 | 140 | 20 | 17 | 10 |
120.0 | 120 – 131 | 16 | 200 | 300 | 400 | 143 | 20 | 17 | 10 |
132.0 | 132 – 142 | 16 | 200 | 300 | 400 | 154 | 35 | 19 | 12 |
135.0 | 135 – 145 | 16 | 200 | 300 | 400 | 157 | 35 | 19 | 12 |
139.0 | 139 – 149 | 16 | 200 | 300 | 400 | 161 | 35 | 19 | 12 |
145.0 | 145 – 155 | 16 | 200 | 300 | 400 | 167 | 35 | 19 | 12 |
159.0 | 159 – 170 | 16 | 200 | 300 | 400 | 182 | 35 | 19 | 12 |
167.0 | 167 – 178 | 16 | 200 | 300 | 400 | 190 | 35 | 19 | 12 |
176.0 | 176 – 187 | 16 | 200 | 300 | 400 | 199 | 35 | 19 | 12 |
193.0 | 193 – 203 | 10 | 200 | 300 | 400 | 215 | 35 | 19 | 12 |
215.0 | 215 – 225 | 10 | 200 | 300 | 400 | 237 | 35 | 19 | 12 |
228.0 | 228 – 239 | 10 | 200 | 300 | – | 251 | 35 | 19 | 12 |
240.0 | 240 – 250 | 10 | 200 | 300 | – | 262 | 35 | 19 | 12 |
261.0 | 261 – 271 | 10 | 200 | 300 | – | 283 | 35 | 19 | 12 |
269.0 | 269 – 280 | 10 | 200 | 300 | – | 292 | 35 | 19 | 12 |
280.0 | 280 – 291 | 10 | – | 300 | – | 303 | 35 | 19 | 12 |
315.0 | 315 – 325 | 10 | – | 300 | – | 337 | 40 | 19 | 12 |
320.0 | 320 – 330 | 10 | – | 300 | – | 342 | 40 | 19 | 12 |
Remarks:
- Follow fitting instructions
- Test pressure = PN x 1.5
- Different pipe diameters (transition) are not possible
- Radial length of damaged area max. 20% of pipe outside diameters
- The repair clamp must be centred over the damaged area
