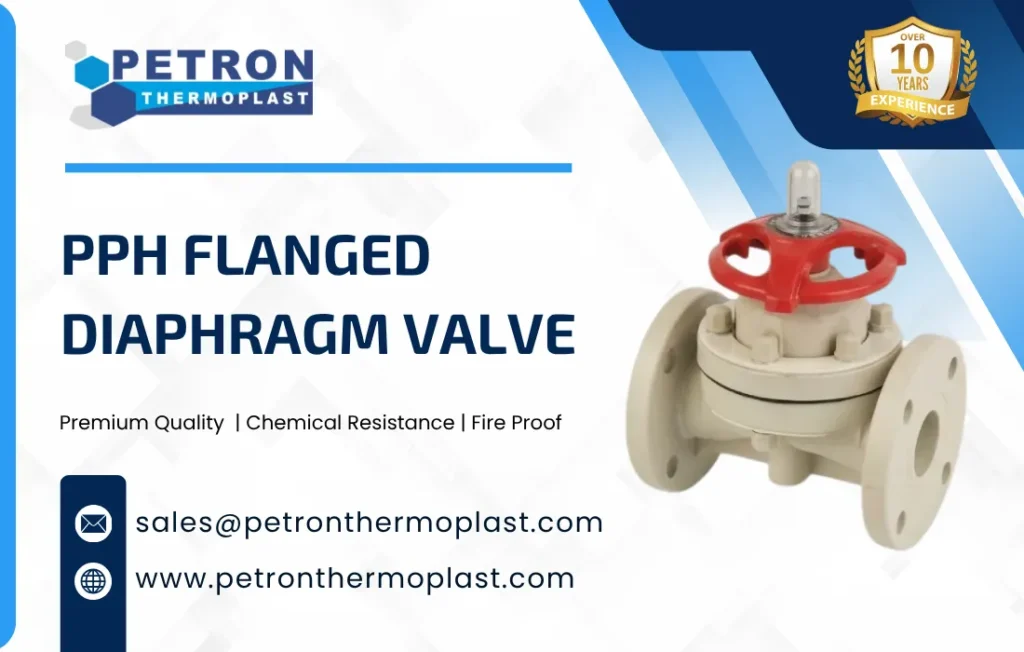

PPH Flanged Diaphragm Valve
The PPH Flanged Diaphragm Valve is a robust and chemically resistant flow control valve, specifically designed for regulating, throttling, and isolating fluids in industrial pipeline systems. Manufactured from Polypropylene Homopolymer (PPH) and equipped with flanged ends, this valve ensures safe and secure installation in pipelines that handle corrosive and abrasive media.
Its unique diaphragm sealing design eliminates direct contact between the working fluid and the operating mechanism, ensuring leak-proof performance, excellent cleanliness, and low maintenance. Commonly used in chemical processing, water treatment, and industrial fluid applications, this valve provides reliable performance in demanding conditions.
Key Features of PPH Flanged Diaphragm Valve
- Flanged End Connection – Easy integration into standard industrial pipeline systems.
- Isolated Flow Path – Diaphragm separates fluid from mechanical parts for better hygiene and corrosion protection.
- Excellent Chemical Resistance – Resistant to acids, alkalis, and aggressive chemicals.
- Smooth Flow Control – Ideal for throttling, regulating, or shut-off applications.
- Maintenance-Friendly Design – Diaphragm can be easily replaced without removing the valve body.
- Low Operating Torque – Ensures easy manual or automated operation.
- Reliable Sealing – Bubble-tight shut-off with minimal risk of leakage.
Technical Information
| Parameter | Details |
|---|---|
|
Material |
Polypropylene Homopolymer (PPH) |
|
Valve Type |
Diaphragm Valve (Flanged) |
|
Connection Type |
Flanged (DIN / ANSI / ISO standards available) |
|
Available Sizes |
DN15 to DN150 (½” to 6”) |
|
Operating Temperature |
0°C to +100°C |
|
Pressure Rating |
Up to 6 bar (depending on size and diaphragm material) |
|
Diaphragm Materials |
EPDM / FKM (Viton) / PTFE / NBR |
|
Body Design |
Weir-type or straight-through (depending on application) |
|
Standards Compliance |
ISO 161, DIN 8077/8078, ISO 15494 |
