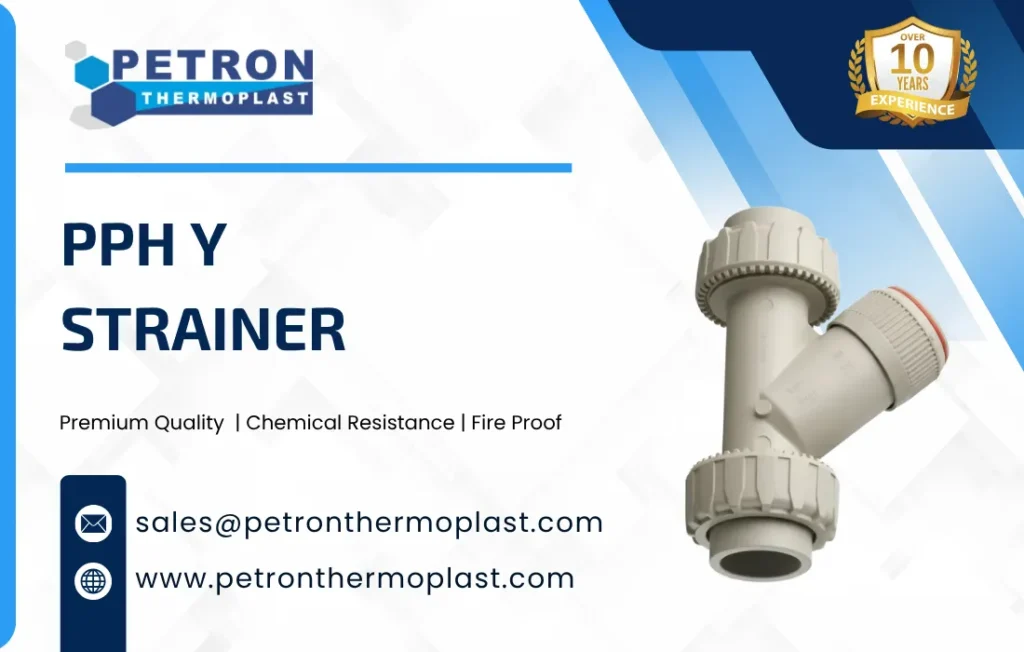

PPH Y Strainer
The PPH Y Strainer is a high-performance filtration component used in industrial piping systems to remove suspended solids and protect downstream equipment like pumps, valves, and flow meters. Constructed from Polypropylene Homopolymer (PPH), it is highly resistant to corrosive chemicals, making it ideal for use in chemical processing, wastewater treatment, and other harsh fluid-handling applications.
Its Y-shaped design allows for efficient straining of debris while maintaining low pressure drop and easy access for cleaning and maintenance. The PPH Y strainer is a reliable and economical solution for industries requiring durable non-metallic filtration systems.
Key Features of PPH Y Strainer
High Chemical Resistance: Suitable for acids, alkalis, and corrosive process fluids.
Non-Corrosive Material: PPH construction ensures long-term durability in aggressive environments.
Removable Mesh Screen: Easy to clean and replace, minimizing downtime.
Low Pressure Drop: Maintains smooth flow while capturing unwanted particulates.
Thermal Stability: Performs well under a wide temperature range for industrial applications.
Lightweight & Easy to Install: Reduces structural support and simplifies system integration.
Versatile Design: Compatible with horizontal and vertical pipeline installations.
Technical Information
| Parameter | Details |
|---|---|
|
Body Material |
PPH (Polypropylene Homopolymer) |
|
Screen Material |
PPH or 316 Stainless Steel (optional) |
|
Available Mesh Sizes |
50, 100, 150, 200 microns (custom mesh sizes on request) |
|
Working Pressure |
Up to 10 bar (145 psi) at 20°C |
|
Temperature Range |
-5°C to +90°C |
|
End Connection Types |
Threaded (BSP/NPT), Socket Weld, or Flanged Ends |
|
Size Range |
DN15 (½”) to DN100 (4”) |
|
Installation Orientation |
Horizontal or Vertical (with flow direction observed) |
|
Standards & Compliance |
DIN, ISO, and ASTM standards |
|
Applications |
Chemical Processing, Water Treatment, Industrial Filtration, Fertilizer |
PPH Valves
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
