PVDF Filter
Petron Thermoplast is a leading manufacturer and supplier of PVDF Filters designed for high-purity and corrosive chemical applications across various industries. PVDF filters are widely used in chemical processing, semiconductor manufacturing, pharmaceutical production, water treatment, electroplating, and high-purity fluid handling systems where contamination-free filtration is essential. We provide customized PVDF filter solutions in various sizes, configurations, and connection standards to meet specific process requirements, ensuring maximum filtration efficiency, reduced maintenance costs, and reliable performance for critical industrial applications worldwide.
PVDF Filter Details
Parameter | Specification |
Product Name | PVDF Filter |
Material of Construction | Virgin Polyvinylidene Fluoride (PVDF) |
Product Type | Industrial Thermoplastic Filtration Component |
Construction Type | Fabricated / CNC Machined / Welded Assembly |
Available Designs | Cartridge Filter, Basket Filter, Plate Filter, Suction Filter, Custom Fabricated Filter |
Available Sizes | DN15 to DN300 (½” to 12″) |
Filter Element Type | Slotted Screen, Perforated Plate, Cartridge, Mesh Element |
Slot Opening Size | 0.25 mm to 10 mm (Customizable) |
Filtration Rating | 1 Micron to 5000 Microns |
Connection Types | Flanged, Socket, Threaded, Butt Fusion, Custom Connections |
Flange Standards | DIN, ANSI, JIS, BS, Customized Standards |
Operating Pressure | Up to 16 Bar (Depending on Design and Temperature) |
Pressure Class | PN6, PN10, PN16 |
Operating Temperature | -40°C to +140°C |
Density | 1.77 – 1.80 g/cm³ |
Tensile Strength | 40 – 55 MPa |
Flexural Modulus | 1,500 – 2,000 MPa |
Elongation at Break | 20 – 50% |
Water Absorption | Less than 0.05% |
Thermal Conductivity | Approximately 0.19 W/m·K |
Coefficient of Thermal Expansion | 120 × 10⁻⁶/K |
Chemical Resistance | Excellent |
Corrosion Resistance | Excellent |
Abrasion Resistance | Very Good |
UV Resistance | Excellent |
Weather Resistance | Excellent |
Surface Finish | Smooth Internal and External Finish |
Color | Natural White / Off White |
Service Life | Long-Term Industrial Performance |
Filtration Direction | Inside-Out or Outside-In Configuration |
Maximum Flow Capacity | As per Filter Size and Design |
Manufacturing Tolerance | Precision Machined Dimensions |
Purity Level | High Purity and Low Extractables |
Inspection | 100% Visual and Dimensional Inspection |
Quality Standards | ASTM, ISO, DIN, ANSI, JIS |
Testing Methods | Hydrostatic Testing, Leak Testing, Dimensional Inspection, Visual Inspection |
Customization Options | Size, Micron Rating, Slot Width, Connection Type, Flange Standard, Overall Dimensions |

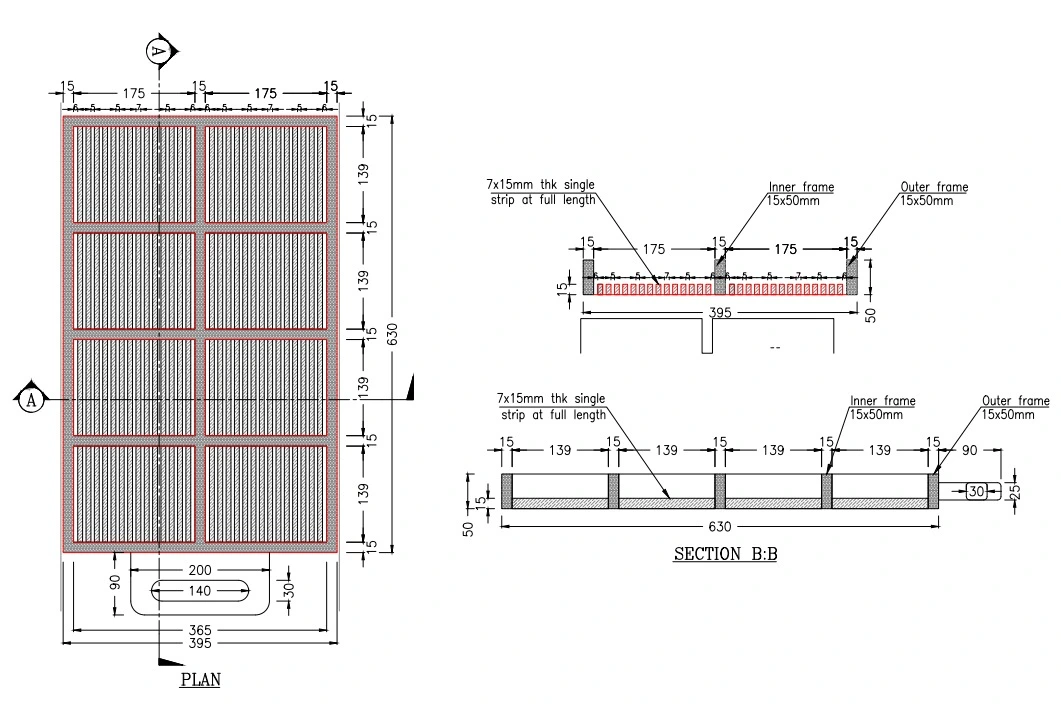

Documentation Available | Material Test Certificate (MTC), Inspection Reports, Dimensional Drawings |
Applications | Chemical Processing, Semiconductor, Pharmaceutical, Water Treatment, Electroplating, High-Purity Fluid Handling |
Installation Orientation | Horizontal and Vertical Installation |
Maintenance Requirement | Low Maintenance |
Expected Service Life | 10–20 Years (Depending on Operating Conditions) |
Key Features of PVDF Filter
Manufactured from premium-grade virgin Polyvinylidene Fluoride (PVDF)
Exceptional resistance to acids, alkalis, solvents, and aggressive chemicals
Excellent corrosion resistance for highly demanding industrial environments
High-purity construction with low extractable properties
Suitable for ultra-pure fluid and chemical processing applications
Outstanding temperature resistance from -40°C to +140°C
Superior mechanical strength and dimensional stability
Smooth internal surface for efficient flow and reduced pressure drop
Excellent resistance to oxidation and chlorinated chemicals
Non-contaminating material ideal for critical process applications
High impact strength and excellent wear resistance
Superior UV and weather resistance for outdoor installations
Low water absorption and excellent moisture resistance
Leak-proof and maintenance-friendly design
High resistance to scaling, rust, and material degradation
Available in various micron ratings and filtration capacities
Supports inside-out and outside-in filtration configurations
Suitable for continuous industrial operation and cyclic service conditions
Compatible with corrosive liquids, process chemicals, and high-purity fluids
Available with slotted, perforated, mesh, and cartridge filter elements
Offered in flanged, threaded, socket, and custom connection designs
Available in DIN, ANSI, JIS, and customized flange standards
Precision-machined and fabricated for accurate dimensions and reliable performance
Low maintenance requirements and extended service life
Excellent structural integrity under varying pressure and temperature conditions
Easy installation and replacement of filter elements
Lightweight construction compared to metallic filtration systems
Suitable for both horizontal and vertical installations
Designed for high-flow industrial filtration applications
Excellent resistance to environmental stress cracking
High operational reliability with minimal downtime
Custom sizes, dimensions, and filtration configurations available
Manufactured according to international quality standards and industrial specifications
Tested for dimensional accuracy, leakage resistance, and performance consistency
Ideal for long-term use in highly corrosive and contamination-sensitive applications
Operating Temperature | Recommended Working Pressure | Pressure Class |
20°C | 16 Bar | PN16 |
30°C | 14 Bar | PN16 |
40°C | 12 Bar | PN16 |
50°C | 10 Bar | PN10 |
60°C | 8 Bar | PN10 |
70°C | 7 Bar | PN10 |
80°C | 6 Bar | PN6 |
90°C | 5 Bar | PN6 |
100°C | 4 Bar | PN6 |
110°C | 3 Bar | PN6 |
120°C | 2 Bar | PN6 |
140°C (Maximum Service Temperature) | 1–1.5 Bar | Special Design Required |
Pressure Class Reference Table
Pressure Class | Maximum Working Pressure at 20°C | Typical Applications |
PN6 | 6 Bar | Low-pressure chemical circulation and filtration systems |
PN10 | 10 Bar | Industrial process filtration and chemical transfer systems |
PN16 | 16 Bar | High-pressure chemical processing and corrosive fluid handling applications |
Note: Pressure ratings are indicative values for virgin PVDF filter housings and fabricated components. Actual pressure capability depends on filter design, wall thickness, connection type, filter element configuration, operating media, and safety factors. Customized high-pressure PVDF filters can be engineered according to specific process requirements and international design standards.
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
Why Choose Petron Thermoplast?
Premium Virgin PVDF Material
We manufacture PVDF filters using high-quality virgin Polyvinylidene Fluoride (PVDF) resin to ensure superior chemical resistance, purity, and long-term durability.
Extensive Industry Experience
With years of expertise in industrial thermoplastics and process equipment manufacturing, we understand the demanding requirements of chemical and high-purity applications.
Customized Engineering Solutions
We offer fully customized PVDF filters in various sizes, micron ratings, connection types, and filtration configurations according to customer drawings and process specifications.
Advanced Manufacturing Facility
Our modern manufacturing infrastructure, CNC machining capabilities, and precision fabrication processes ensure consistent quality and dimensional accuracy.
Superior Chemical Resistance
Our PVDF filters are specifically engineered for handling aggressive chemicals, acids, alkalis, solvents, and corrosive process media.
High-Purity Filtration Solutions
The low extractable properties of PVDF make our filters ideal for semiconductor, pharmaceutical, and contamination-sensitive applications.
Precision Manufacturing
Every PVDF filter is manufactured with strict dimensional tolerances and superior surface finish to deliver reliable and efficient filtration performance.
Comprehensive Quality Control
Each product undergoes rigorous quality checks, including:
- Raw material verification
- Dimensional inspection
- Visual inspection
- Hydrostatic testing
- Leak testing
- Performance evaluation
International Standards Compliance
Our PVDF filters are manufactured in accordance with internationally accepted industrial standards and customer-specific requirements.
Wide Product Range
We offer a complete range of industrial PVDF filtration products, including:
- Cartridge Filters
- Basket Filters
- Suction Filters
- Plate Filters
- Custom Fabricated Filters
Fast Production and Delivery
Efficient production planning and streamlined manufacturing processes enable us to deliver products within committed timelines.
Export Support
We supply PVDF filters globally and provide complete export assistance, including:
- Material Test Certificates (MTC)
- Inspection Reports
- Packing Lists
- Commercial Invoices
- Certificates of Origin
Competitive Manufacturer Pricing
As a direct manufacturer, we offer cost-effective PVDF filtration solutions without compromising product quality and performance.
Technical Support and Consultation
Our experienced team assists customers with product selection, material compatibility, design recommendations, and installation guidance.
Long-Term Reliability
Petron Thermoplast PVDF filters are engineered for corrosion-free operation, minimal maintenance, and extended service life in demanding industrial environments.
