Cylindrical Vertical Tank Manufacturer for Industrial Storage Solutions
A Cylindrical Vertical Tank is a storage vessel with a circular base and vertical sidewalls. A top is a position to upright the store of liquids (water, chemicals, oil) or gases. Cylindrical Vertical Tanks are to minimize the footprint while offering the large capacities. They typically feature flat, conical, or dished ends and are constructed from materials like titanium or plastic.

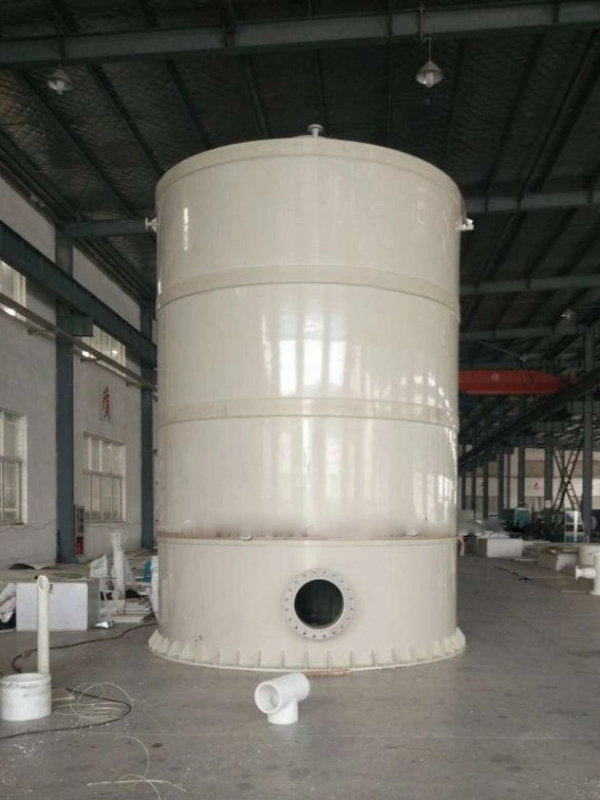

A Cylindrical Vertical Tank is a vertically mounted industrial storage tank with a cylindrical shape. Cylindrical Vertical Tanks are designed for storing, processing, and handling liquids, chemicals, water, and industrial solutions. Cylindrical Vertical Tanks are safe and efficient. The vertical cylindrical designed to allow efficient storage with minimal usage of making the floor space. Cylindrical Vertical tanks are ideal for industries where high-capacity and liquid storage to optimize the space of utilization are important. There are strong structural designs to provide excellent pressure distribution and mechanical stability during industrial operations.
Cylindrical Vertical Tank Details
| Parameter | Technical & Physical Details |
| Product Name | Cylindrical Vertical Tank |
| Material Options | HDPE, PP, FRP, PVC, PVDF, Stainless Steel, Rubber-Lined Steel |
| Tank Shape | Cylindrical Vertical |
| Tank Type | Open Top / Closed Top |
| Storage Capacity | 100 Liters to 500,000+ Liters |
| Wall Thickness | 5 mm to 60 mm (depending on capacity & application) |
| Design Standard | ASTM, ASME, ISO, DIN Standards |
| Operating Temperature | -10°C to 120°C (depends on material and application) |
| Pressure Rating | Atmospheric to customized pressure rating |
| Chemical Compatibility | Suitable for chemicals, acids, alkalis, water, and industrial liquids |
| Corrosion Resistance | Excellent resistance to corrosive chemicals and environments |
| Density of Material | HDPE: 0.94–0.97 g/cm³, PP: 0.90–0.91 g/cm³, FRP: 1.5–2.0 g/cm³ |
| UV Resistance | UV-stabilized materials available for outdoor installation |
| Color Options | Natural, Black, White, Grey, Customized |
| Mounting Type | Vertical Ground Mounted |
| Inlet Connection | Top inlet / Side inlet |
| Outlet Connection | Flanged, Threaded, Socket Weld |
| Lining Options | PTFE, Rubber, FRP, HDPE, PVDF |
| Reinforcement | FRP reinforcement / Steel support structure |
| Fabrication Method | Extrusion welding, Butt welding, Rotational molding, Fabrication |
| Surface Finish | Smooth internal finish / Anti-corrosive finish |
| Leak Protection | Leak-proof welded construction |
| Ventilation Provision | Optional vent and pressure release system |
| Level Indicator | Optional level gauge installation |
| Agitator Provision | Available on request |
| Manhole Provision | Customized manhole sizes available |
| Drainage System | Bottom drain outlet available |
| Impact Resistance | High impact and abrasion resistance |
| Thermal Stability | Suitable for moderate to high temperature applications |
| Mechanical Strength | High structural and load-bearing strength |
| Safety Features | Anti-corrosion, UV protection, chemical resistance |
| Maintenance Requirement | Low maintenance |
| Service Life | Long operational life |
| Applications | Chemical storage, water treatment, pharmaceuticals, food processing, wastewater treatment |
| Installation Type | Indoor & Outdoor installation |
| Customization | Available as per customer requirements |
1. Space-Saving Vertical Design
The vertical cylindrical shape allows maximum storage capacity while occupying minimal floor space, making it ideal for industrial installations with limited area.
2. Excellent Chemical Resistance
Manufactured using corrosion-resistant materials such as HDPE, PP, FRP, PVDF, PVC, and stainless steel for safe handling of chemicals, acids, alkalis, and industrial liquids.
3. Leak-Proof Construction
Precision fabrication and high-quality welded joints ensure leak-proof performance for safe liquid storage and transfer.
4. High Mechanical Strength
Designed with strong structural integrity to withstand industrial loads, liquid pressure, and harsh operating conditions.
5. Long Service Life
Durable construction and anti-corrosive materials provide extended operational life with minimal maintenance requirements.
6. Corrosion-Resistant Structure
Suitable for storing corrosive chemicals and aggressive industrial solutions in demanding environments.
7. Smooth Internal Surface
The smooth inner finish minimizes scaling, chemical deposits, and contamination while improving cleaning efficiency.
8. Lightweight Construction
Plastic and hybrid cylindrical vertical tanks are lightweight, making transportation, handling, and installation easier.
9. Low Maintenance Requirement
Corrosion-resistant materials and smooth surfaces reduce maintenance, cleaning, and operational costs.
10. Customizable Design
Available in customized:
- Sizes
- Capacities
- Thicknesses
- Connection types
- Lining options
- Top and bottom configurations
According to industrial requirements.
11. Multiple Material Options
Manufactured using materials such as:
- HDPE
- PP
- FRP
- PVDF
- PVC
- Stainless Steel
- Rubber-lined steel
12. Reinforced Structure
Optional FRP reinforcement or steel support structures improve tank strength and stability.
13. High Temperature Resistance
Designed to handle moderate to high operating temperatures, depending on material selection and application.
14. UV & Weather Resistance
UV-stabilized materials protect the tank from sunlight and harsh outdoor environmental conditions.
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
Application of Cylindrical Vertical Tank
1. Chemical Processing Industries
Used for storing and handling:
- Acids
- Alkalis
- Solvents
- Chemical solutions
- Industrial process liquids
2. Water Treatment Plants
Widely used in:
- Raw water storage
- Chemical dosing systems
- Treated water storage
- Neutralization processes
- Wastewater treatment operations
3. Acid & Alkali Storage
Suitable for safe storage of corrosive chemicals such as:
- Hydrochloric Acid (HCl)
- Sulfuric Acid (H₂SO₄)
- Caustic soda solutions
- Industrial alkalis
4. Pharmaceutical Industries
Used in pharmaceutical manufacturing for:
- Process liquid storage
- Purified water storage
- Chemical preparation
- Mixing and dosing systems
5. Electroplating Industries
Applied in electroplating operations for storing and circulating treatment chemicals and process liquids.
7. Wastewater Treatment Plants
Used for:
- Effluent collection
- Neutralization tanks
- Chemical treatment systems
- Sludge processing applications
8. Power Plants
Used in:
- Cooling water systems
- Chemical dosing units
- Boiler feed water treatment systems
9. Oil & Gas Industries
Suitable for storing industrial chemicals, treatment fluids, and process liquids used in refinery and processing operations.
Why Choose Petron Thermoplast?
Petron Thermoplast provides cylindrical vertical tanks that are easy to install. Cylindrical Vertical Tanks are extremely lightweight compared to industrial connectors. Cylindrical Vertical Tanks mean no concern regarding Corrosion. The flow will be smoother and consistently more cost-effective in comparison to other components.
At Petron Thermoplast, we are committed to delivering high-quality Cylindrical Vertical Tanks that meet industry standards and exceed customer expectations. Our products have been rigorously tested and certified through various tests to ensure their durability and performance.
Petron thermoplast provides a wide range of cylindrical vertical tanks that can be used to extend the performance and versatility of our storage tanks. Different sizes and types are available to suit various applications.
Conclusion
Cylindrical Vertical Tanks are used for highly efficient and reliable industrial storage solutions. Cylindrical Vertical Tanks are designed for the safe storage, handling, and processing of liquids, chemicals, water, and industrial solutions. Cylindrical Vertical Tanks are designed to allow the maximum storage capacity while minimizing the floor space usage, making them ideal for modern industrial facilities. Features include high mechanical strength, smooth internal finish, UV resistance, thermal stability, and customizable configurations. Widely used in chemical processing, water treatment, and wastewater treatment industries, Cylindrical Vertical Tanks are offered for safe and efficient liquid handling solutions. Proper fabrication, installation, testing, and maintenance further enhance their operational efficiency and long service life.
