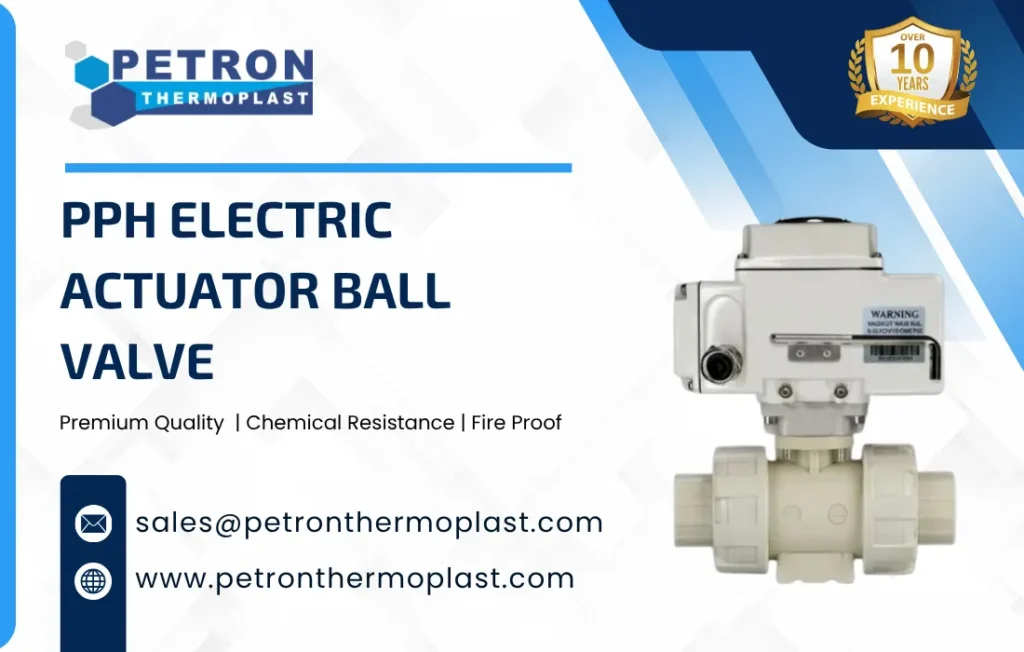

PPH Electric Actuator Ball Valve
A PPH Electric Actuator Ball Valve is a type of automated valve made from Polypropylene Homopolymer (PPH) that is used to control the flow of liquids in a piping system using an electric actuator. The valve operates with a rotating ball inside the valve body, which opens or closes the flow path when the actuator receives an electrical signal.The electric actuator automatically rotates the ball 90 degrees to open or shut the valve, allowing remote operation and precise flow control without manual intervention.
Because the valve body is made from PPH material, it offers excellent resistance to corrosion, chemicals, and harsh environments, making it suitable for chemical processing plants, water treatment systems, and industrial fluid handling applications.
- Chemical Resistance
- Low Maintenance Requirement
- Low Thermal Conductivity
- Long Service Life
- Easy Installation
- Corrosion Resistance
PPH Electric Actuator Ball Valve Details
*Technical Diagram
*Technical Data
| Parameter | Technical Specification |
| Valve Type | Electric Actuated Ball Valve |
| Body Material | PPH (Polypropylene Homopolymer) |
| Ball Material | PPH / PVC |
| Seat Material | PTFE (Teflon) |
| Seal Material | EPDM / FKM (Viton) |
| Size Range | DN15 – DN100 (½” – 4”) |
| Nominal Pressure | PN10 |
| Temperature Range | 0°C to 90°C |
| End Connection | Socket Weld / Threaded / Flanged |
| Actuator Type | Electric Actuator |
| Power Supply | 24V / 110V / 220V AC or DC |
| Operation | Quarter Turn (90° Rotation) |
| Control Type | On/Off or Modulating Control |
| Flow Direction | Bi-directional |
| Mounting Position | Horizontal or Vertical |
| Design Standard | DIN / ISO standards |
| Working Medium | Water, chemicals, acids, alkalis |
- High Chemical Resistance
The PPH material provides excellent resistance to acids, alkalis, and other corrosive chemicals. - Corrosion-Free Construction
Since the valve is made from plastic material, it does not rust or corrode like metal valves. - Lightweight Design
The lightweight structure makes the valve easy to handle, install, and maintain. - Quarter-Turn Operation
The valve opens or closes with a 90° rotation, allowing quick and simple operation. - Strong and Durable Body
PPH material offers high mechanical strength and long service life in industrial environments. - Leak-Tight Sealing
Equipped with soft sealing materials like EPDM or PTFE seats to ensure a tight shut-off. - Low Pressure Loss
The streamlined disc design allows smooth fluid flow with minimal pressure drop. - Wide Temperature Tolerance
Suitable for operating temperatures typically up to 90–95°C. - Multiple Connection Options
Available in wafer, lug, and flanged types for different piping systems. - Compatible with Automation
Can be fitted with a manual lever, gear operator, pneumatic actuator, or electric actuator for automated control.
| Valve Size (DN) | Pressure Class | Maximum Working Pressure | Test Pressure |
| DN15 – DN25 (½” – 1”) | PN10 | Up to 10 Bar | 15 Bar |
| DN32 – DN50 (1¼” – 2”) | PN10 | Up to 10 Bar | 15 Bar |
| DN65 – DN80 (2½” – 3”) | PN6 | Up to 6 Bar | 9 Bar |
| DN100 (4”) | PN6 | Up to 6 Bar | 9 Bar |
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
Benefits of Using PPH Electric Actuator Ball Valve
Automatic Operation
The electric actuator allows the valve to open and close automatically without manual effort.
Remote Control Capability
The valve can be operated remotely through electrical signals, making it suitable for automated systems.
Excellent Chemical Resistance
The PPH (Polypropylene Homopolymer) body provides strong resistance to acids, alkalis, and corrosive chemicals.
Leak-Tight Sealing
The PTFE seats and seals ensure tight shut-off and prevent leakage in the piping system.
Quick Operation
The ball valve mechanism provides fast 90° rotation, allowing quick opening and closing of the valve.
Corrosion-Free Construction
PPH material does not rust or corrode like metal valves, ensuring long service life.
Low Maintenance Requirement
The simple design and durable materials reduce maintenance needs and operational costs.
Energy Efficient
Electric actuators consume relatively low power and provide reliable valve control
Smooth Flow Performance
The ball valve design offers low pressure drop and smooth fluid flow.
Wide Industrial Applications
Suitable for chemical processing plants, water treatment systems, pharmaceutical industries, and automated industrial pipelines.
Types of PPH Electric Actuator Ball Valve
2-Way PPH Electric Actuator Ball Valve
This type has two ports (one inlet and one outlet) and is mainly used for simple ON/OFF flow control in pipelines.
3-Way PPH Electric Actuator Ball Valve
This valve has three ports and is used to divert or mix the flow of fluids between different pipelines.
On/Off Type Electric Actuator Ball Valve
This type allows the valve to operate in two positions only—fully open or fully closed, making it suitable for basic automatic control systems.
Modulating (Proportional) Electric Actuator Ball Valve
This valve can partially open or close to regulate flow precisely, commonly used in process control systems.
Full Bore (Full Port) Electric Actuator Ball Valve
This type provides maximum flow capacity with minimal pressure drop because the bore size matches the pipe diameter.
Reduced Bore Electric Actuator Ball Valve
This valve has a smaller internal passage, which helps control flow but slightly increases pressure drop.
Weatherproof / Explosion-Proof Electric Actuator Ball Valve
These types are specially designed for hazardous or outdoor environments, such as chemical plants or offshore installations.
Applications of PPH Electric Actuator Ball Valve
Process Industry
High Purity Applications
Electronic Industry
Electrical Industry
Semi-conductors Industry
Pharmaceutical Industry
Solar power panels
Sugar Industry
Paper & Pulp Industry
Nuclear Power Industry
Automotive Industry
DI water plants
Why Choose Petron Thermoplast?
Petron Thermoplast provides the industrial PPH Electric Actuator Ball Valve solutions designed to meet the demanding requirements of industrial and water treatment plants.
