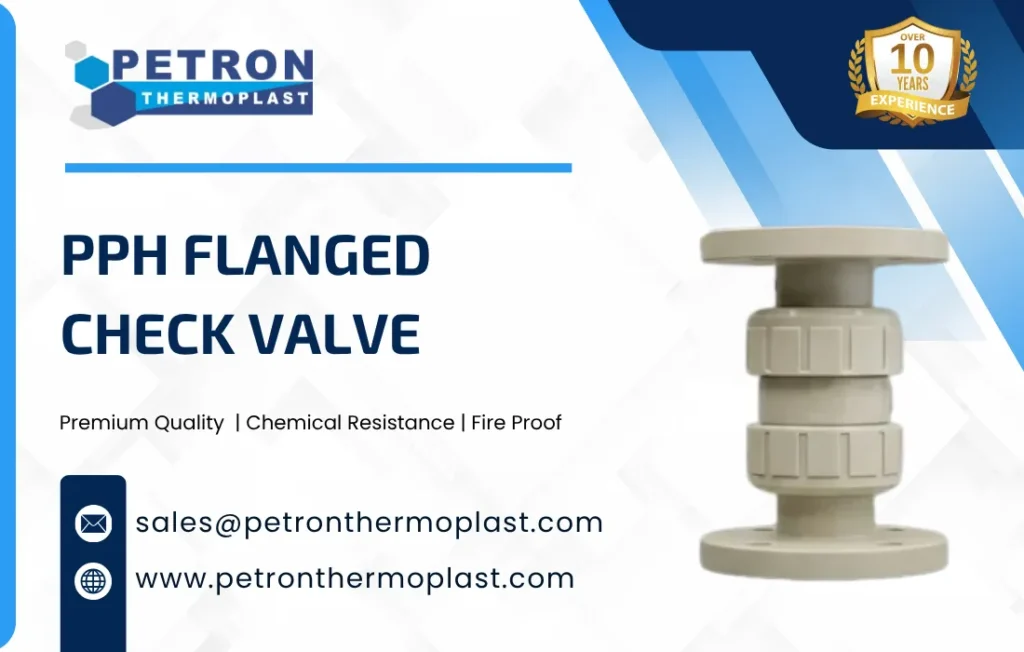

PPH Flanged Check Valve

A PPH Flanged Check Valve is a self-acting valve that permits fluid flow in one direction only and automatically prevents reverse flow in a pipeline, with a body constructed from PPH material and flanged ends for easy installation and leak-proof connections.The PPH Flanged Check Valve is a non-return valve engineered to prevent backflow in piping systems by allowing fluid to flow in only one direction, this valve is specifically designed for corrosive and aggressive fluid environments found in chemical and industrial applications.

With flanged end connections, it ensures secure installation and compatibility with standard piping systems. The valve operates automatically and closes when flow reverses, protecting pumps and equipment from potential damage due to reverse pressure.Provides excellent resistance to chemicals, corrosion, and high temperatures. They operates automatically without manual control to ensures strong, bolted connections as per standards like ANSI or DIN and Opens with forward flow and closes when flow reverses.

PPH Flanged Check Valve Details

*Technical Diagram

*Technical Data

Parameter	Specification / Details
Valve Type	Check Valve (Non-return valve)
Material of Construction	Polypropylene Homopolymer (PPH)
End Connection	Flanged (ANSI / DIN / JIS standards)
Size Range	DN15 to DN300 (½” to 12”)
Pressure Rating	PN6 / PN10 (Up to ~10 bar depending on size & design)
Test Pressure	Typically 1.5 × working pressure (Body test)
Operating Temperature	-20°C to +80°C (Max short-term up to ~100°C)
Flow Direction	Unidirectional (Arrow marked on body)
Working Principle	Automatic operation based on fluid pressure
Valve Types	Swing type / Ball type / Lift type
Sealing Type	Soft seat (PTFE / EPDM / FKM) for bubble-tight sealing
Installation Position	Horizontal or Vertical (Type dependent)
Pressure Drop	Low (Ball check slightly higher than swing type)
Leakage Class	Bubble-tight shutoff
Standards	ISO, DIN, ANSI, API testing standards
Chemical Resistance	Excellent resistance to acids, alkalis, and corrosive chemicals
Corrosion Resistance	100% corrosion-free (Non-metallic body)
Density / Weight	Lightweight (Approx. 0.90 g/cm³)
Mechanical Strength	High impact strength with good rigidity
Thermal Stability	Stable under moderate temperatures (Up to ~80°C continuous)
UV Resistance	Good resistance to UV and weathering (With stabilizers)
Surface Finish	Smooth internal surface reduces friction & scaling
Maintenance	Low maintenance, easy replacement of internal parts
Durability	Long service life in chemical and water systems
Environmental Safety	Non-toxic and recyclable material

One-Way Flow Control – Prevents reverse flow and system contamination.
Flanged End Connection – Ensures leak-proof and secure pipeline integration.
Excellent Chemical Resistance – Suitable for acids, alkalis, and corrosive industrial fluids.
Low Opening Pressure – Responds quickly to flow conditions for efficient system protection.
Non-Corrosive Construction – Made entirely from PPH for durability in harsh environments.
Maintenance-Friendly Design – Simple internal structure allows for easy inspection and cleaning.
Silent Operation – Reduces flow-induced noise and water hammer effects.

Parameter	Typical Value
Nominal Pressure Rating	PN6 to PN10
Maximum Working Pressure	Up to 6 bar to 10 bar
Test Pressure (Body)	1.5 × working pressure (≈ 9 to 15 bar)
Test Pressure (Seat)	1.1 × working pressure
Temperature Influence	Pressure rating decreases as temperature increases
Standard Reference	ISO / DIN pressure rating system

If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.

Benefits of Using PPH Flanged Check Valve

1. Excellent Chemical Resistance

Highly resistant to acids, alkalis, and corrosive chemicals
Ideal for chemical processing and wastewater systems

2. Corrosion-Free Material

Unlike metal valves, PPH does not rust or corrode
Ensures long service life in aggressive environments

3. Lightweight and Easy to Install

Much lighter than metal valves
Easier handling, transportation, and installation
Reduces structural load on pipelines

4. Flanged Connection Advantage

Provides strong, leak-proof connections
Easy to install and remove for maintenance
Compatible with standard piping systems (DIN, ANSI, JIS)

5. Automatic Backflow Prevention

Operates without manual control
Prevents reverse flow, protecting pumps and equipment
Ensures safe and efficient system operation

6. Low Maintenance Requirement

Minimal wear and tear due to non-metallic parts
Fewer maintenance and replacement needs
Cost-effective over long-term operation

7. Smooth Internal Surface

Reduces friction and pressure loss
Minimizes scaling, deposits, and clogging

8. Good Temperature Resistance

Suitable for temperatures up to ~80°C (continuous use)
Performs well in moderate industrial conditions

9. Bubble-Tight Sealing

Equipped with soft sealing materials (PTFE/EPDM)
Ensures zero leakage and reliable shutoff

10. Cost-Effective Solution

Lower cost compared to metal valves like brass
Offers good performance at an economical price

11. Versatile Applications

Used in:
- Chemical plants
- Water treatment
- Effluent systems
- Fertilizer and industrial pipelines

Types of PPH Flanged Check Valve

1. Swing Check Valve

Uses a hinged disc (flap) that swings open with forward flow
Closes when flow reverses due to gravity or back pressure
Suitable for low-velocity and horizontal pipelines
Has low pressure drop

2. Ball Check Valve

Uses a free-moving ball inside the valve body
Ball lifts with forward flow and seals the seat when flow reverses
Common in wastewater and chemical applications
Good for slurry and dirty fluids

3. Lift Check Valve

Disc moves vertically (up and down)
Opens when pressure lifts the disc; closes when flow stops or reverses
Typically used in high-pressure or clean fluid systems
Provides better sealing but slightly higher pressure drop

4. Wafer Type Check Valve (Compact Design)

Thin, lightweight design installed between flanges
Often uses swing or dual plate mechanism
Space-saving and cost-effective
Suitable for tight installation spaces

5. Dual Plate Check Valve (Butterfly Type)

Has two spring-loaded plates that open with forward flow
Plates quickly close when flow reverses
Provides fast response and low water hammer effect
Used in high-flow systems

6. Spring Loaded Check Valve

Uses a spring mechanism to assist closing
Opens when flow pressure overcomes spring force
Ensures quick shut-off and prevents backflow efficiently
Suitable for vertical and horizontal installation

Applications of PPH Flanged Check Valve

Process Industry

High Purity Applications

Electronic Industry

Electrical Industry

Semi-conductors Industry

Pharmaceutical Industry

Solar power panels

Sugar Industry

Paper & Pulp Industry

Nuclear Power Industry

Automotive Industry

DI water plants

Why Choose Petron Thermoplast?

At Petron Thermoplast, the PPH Flanged Check Valve are an important industrial valve for unidirectional flow in fluid systems by preventing backflow. These valves function accurately, responding to pressure variations, unlike electric valves. This makes them indispensable in applications requiring continuous flow without active control.
