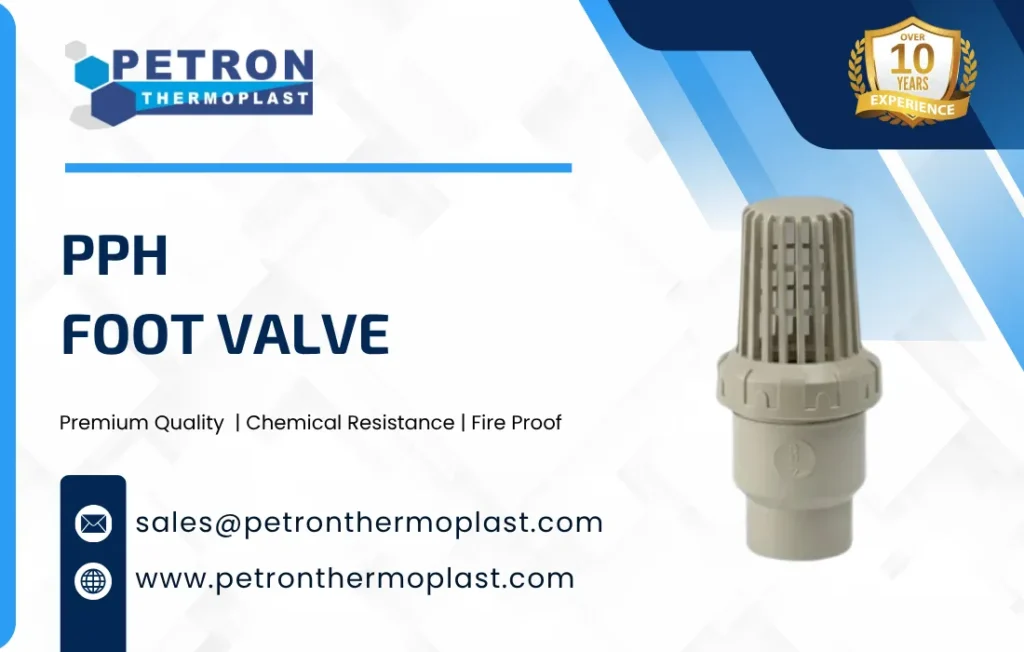

PPH Foot Valve

A PPH Foot Valve is a type of non-return (check) valve made from Polypropylene Homopolymer (PPH) that is installed at the inlet (suction side) of a pump, usually at the bottom of a pipeline or submerged in a tank, to prevent backflow and keep the pump primed. A PPH foot valve is a valve with a built-in strainer and check mechanism that allows fluid to enter the pipeline from a tank or source while preventing reverse flow, and it is constructed from corrosion-resistant PPH material for use in chemical and water systems.

PPH foot valve is located at the end of a pipeline. In addition to serving as a check valve, these also include a strainer attached to the open end of the valve.The check valve has a spring-assisted check valve and PPH Piping Systems. Whenever a pump is turned on, the tension of the pump column changes, and the valve opens as a result. Whenever the pump is turned off, the PPH Foot Valve responds by closing once again. As a result, the pump will not lose prime every time it is turned off due to leakage of fluid from the pump column

PPH Foot Valve Details

*Technical Diagram

*Technical Data

Category	Parameter / Property	Specification / Details
Valve Basics	Valve Type	Foot Valve (Non-return valve with strainer)
	Material of Construction	Polypropylene Homopolymer (PPH)
	End Connection	Threaded / Flanged / Socket (Depending on design)
	Size Range	DN15 to DN300 (½” to 12”)
Operating Specs	Pressure Rating	PN6 / PN10 (Up to ~6–10 bar)
	Test Pressure	1.5 × working pressure (Body test)
	Operating Temp.	-10°C to +80°C (Typical continuous use)
	Max Temperature	Up to ~100°C (Short-term)
	Working Principle	Automatic check (Opens with suction, closes on reverse flow)
	Flow Direction	One-way (Unidirectional)
Design Details	Strainer Type	Integrated mesh or perforated screen
	Sealing Type	Soft seat (EPDM / NBR / PTFE)
	Installation	Bottom of suction line / Submerged in tank
	Surface Finish	Smooth internal surface (Reduces friction & scaling)
Performance	Chemical Resistance	Excellent (Acids, Alkalis, and Corrosive fluids)
	Corrosion Resistance	100% corrosion-free (Non-metallic body)
	Mechanical Strength	Good impact resistance and rigidity
	Thermal Stability	Performs well under moderate temperatures
	UV Resistance	Good resistance (With stabilizers)
Compliance	Standards	ISO / DIN / ANSI compliant
Other Features	Weight	Lightweight and easy to install
	Maintenance	Low maintenance (Periodic strainer cleaning required)
	Durability	Long service life in aggressive environments
	Environmental	Non-toxic and recyclable material

1. Non-Return (Check Valve) Function

Allows flow in one direction only
Automatically prevents backflow when the pump stops

2. Excellent Chemical Resistance

Made from PPH (Polypropylene Homopolymer)
Resistant to acids, alkalis, and corrosive fluids
Suitable for chemical and wastewater applications

3. Corrosion-Free Construction

Non-metallic body eliminates rust and scaling
Ensures long service life in harsh environments

4. Maintains Pump Priming

Keeps the suction line filled with fluid
Prevents dry running of pumps
Improves pump efficiency and reliability

5. Built-in Strainer

Equipped with a mesh or perforated screen
Prevents entry of debris and solid particles
Protects pump and pipeline from damage

6. Lightweight Design

Easy to handle and install
Reduces load on piping systems compared to metal valves7845

7. Low Maintenance

Simple construction with fewer moving parts
Only requires periodic cleaning of the strainer

8. Smooth Flow Path

Reduces friction and pressure loss
Minimizes scaling and clogging

9. Tight Sealing Performance

Soft sealing (EPDM / PTFE / NBR) ensures leak-proof operation
Prevents loss of suction

10. Good Temperature Resistance

Suitable for temperatures up to ~80°C (continuous use)
Performs well in moderate industrial conditions

11. Multiple Connection Options

Available in threaded, flanged, or socket ends
Suitable for both small and large pipeline systems

12. Silent Operation

Smooth and quiet functioning compared to metal valves
Minimal vibration and noise

Parameter	Typical Value
Nominal Pressure Rating	PN6 to PN10
Maximum Working Pressure	Up to 6 bar to 10 bar
Test Pressure (Body)	1.5 × working pressure (≈ 9 to 15 bar)
Test Pressure (Seat)	1.1 × working pressure
Suction Head Capability	Designed to maintain pump suction without leakage
Temperature Influence	Pressure rating decreases as temperature increases
Applicable Standards	ISO / DIN pressure rating system

If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.

Benefits of Using PPH Foot Valve

1. Excellent Chemical Resistance

Made from PPH material, highly resistant to acids, alkalis, and corrosive fluids
Ideal for chemical and wastewater applications

2. Corrosion-Free Construction

Non-metallic body prevents rust and corrosion
Ensures long service life even in aggressive environments

3. Maintains Pump Priming

Prevents fluid from flowing back when the pump stops
Keeps the suction line filled and ready for operation
Improves pump efficiency and performance

4. Built-in Strainer Protection

Integrated strainer blocks debris, dirt, and solid particles
Protects pump and pipeline from damage and clogging

5. Lightweight and Easy Installation

Much lighter than metal foot valves
Easy to handle, transport, and install
Reduces installation time and cost

6. Low Maintenance Requirement

Simple design with fewer moving parts
Only periodic cleaning of the strainer is needed
Reduces maintenance cost and downtime

7. Reliable Backflow Prevention

Works automatically as a non-return valve
Prevents reverse flow and protects system integrity

8. Smooth Flow Characteristics

Smooth internal surface reduces friction and pressure loss
Minimizes scaling and deposits

9. Cost-Effective Solution

Lower cost compared to metal valves (brass)
Offers good performance with economical investment

10. Durable and Long-Lasting

Resistant to wear, chemical attack, and environmental conditions
Provides consistent performance over time

Types of PPH Foot Valve

1. Ball Type Foot Valve

Uses a free-moving ball as the sealing element
Ball lifts during suction and seals when flow reverses
Suitable for dirty water, slurry, and viscous fluids
Offers good sealing and simple design

2. Spring Loaded Foot Valve

Equipped with a spring mechanism for faster closing
Ensures quick response and tight shut-off
Reduces chances of backflow and pump de-priming
Suitable for vertical installations and fast-flow systems

3. Flap (Disc) Type Foot Valve

Uses a hinged flap/disc that opens with suction flow
Closes automatically when flow stops
Suitable for clean water and low-pressure applications
Provides low pressure drop

4. Strainer Type Foot Valve (Standard Design)

Comes with an integrated strainer or mesh screen
Prevents entry of debris, dirt, and solid particles
Commonly used in all pumping systems
Can be combined with ball or flap mechanism

5. Threaded End Foot Valve

Designed with threaded connections
Easy to install in small pipelines
Common for domestic and light industrial use

6. Flanged End Foot Valve

Comes with flanged connections for bolting
Suitable for large pipelines and industrial systems
Provides strong and leak-proof installation

Applications of PPH Foot Valve

Process Industry

High Purity Applications

Electronic Industry

Electrical Industry

Semi-conductors Industry

Pharmaceutical Industry

Solar power panels

Sugar Industry

Paper & Pulp Industry

Nuclear Power Industry

Automotive Industry

DI water plants

Why Choose Petron Thermoplast?

When it comes to industrial-grade systems, the choice of the right manufacturer is as important as the material itself. Petron Thermoplast has earned a reputation as a trusted global leader in the field of PPH Foot Valve and industrial flow solutions. Our products are known for precision, performance, and durability, designed to meet the most demanding industry standards across chemical and infrastructure sectors.

With so many options on the market, why should you trust Petron Thermoplast for your PPH Foot Valve needs? The answer lies in our commitment to quality, service, and understanding your unique challenges.
