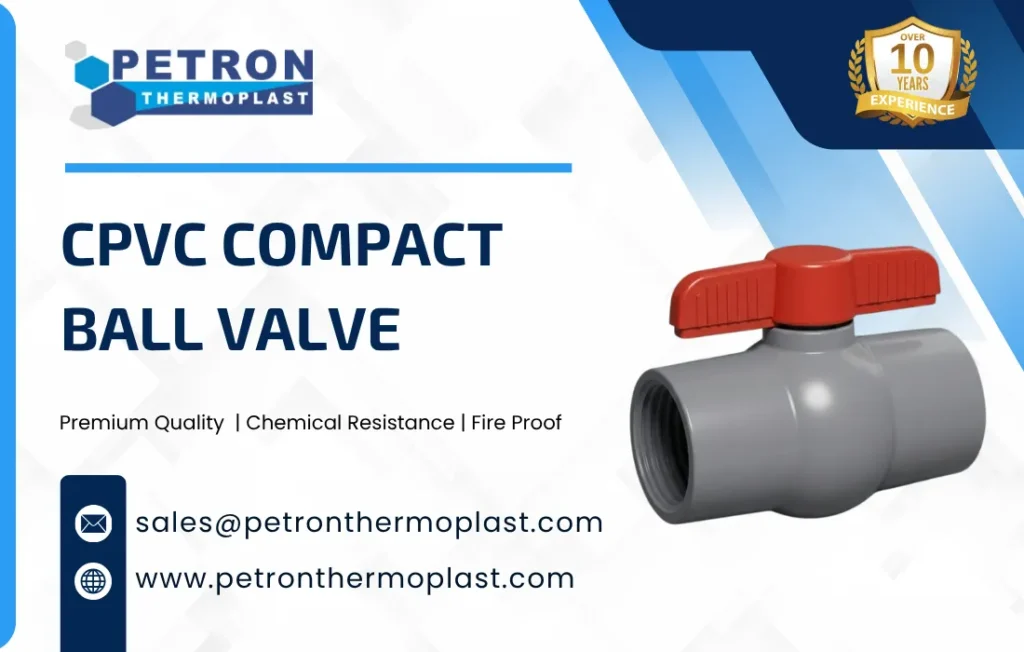

CPVC Compact Ball Valve
The CPVC Compact Ball Valve is a lightweight and space-saving flow control valve designed for on/off service in piping systems handling corrosive or high-temperature fluids. Manufactured from durable Chlorinated Polyvinyl Chloride (CPVC), this valve offers excellent chemical resistance and thermal stability. It features a full-port design for minimal flow restriction and is ideal for compact installations where space is limited. The simple quarter-turn operation ensures quick and reliable shutoff in industrial, chemical, and water treatment applications.
Key Features of CPVC Compact Ball Valve
Compact Design: Ideal for tight spaces without compromising performance.
Durable CPVC Body: Excellent resistance to corrosion, chemicals, and high temperatures.
Full-Port Flow Path: Ensures minimal pressure drop and unrestricted flow.
Quarter-Turn Operation: Easy and reliable shutoff with ergonomic handle.
Bubble-Tight Sealing: PTFE seats and elastomer seals ensure leak-free operation.
Lightweight & Non-Metallic: Easy to install and corrosion-proof.
Multiple Connection Types: Available in solvent weld (socket) and threaded ends.
Low Maintenance: Simple construction for long-lasting performance.
Technical Information
| Parameter | Details |
|---|---|
|
Body Material |
CPVC (Chlorinated Polyvinyl Chloride) |
|
Ball Material |
CPVC |
|
Seat Material |
PTFE (Teflon®) |
|
Seal Material |
EPDM or FKM (Viton®) |
|
Size Range |
½” to 2″ (15 mm to 50 mm) |
|
End Connections |
Socket (solvent weld), Threaded (NPT/BSP) |
|
Operating Pressure |
Up to 150 PSI (10.3 bar) at 23°C |
|
Temperature Range |
0°C to 93°C (32°F to 200°F) |
|
Operation Type |
Manual (quarter-turn handle) |
|
Flow Type |
Full-port |
|
Compliance Standards |
ASTM D1784 (CPVC material), NSF/ANSI 61 (if applicable) |
|
Applications |
Chemical processing, water distribution, industrial systems |
