CPVC Pneumatic Ball Valve
A CPVC Pneumatic Ball Valve is an automated quarter-turn valve made from CPVC (Chlorinated Polyvinyl Chloride) material and operated by a pneumatic (air-powered) actuator to control the flow of liquids in a piping system. The CPVC Pneumatic Ball Valve uses a rotating ball with a bore (hole) inside it. When compressed air is supplied to the actuator, the ball rotates 90°. The bore aligns with the pipeline, allowing fluid to pass, and the bore turns perpendicular to the pipeline, stopping the flow.
A CPVC Pneumatic Ball Valve is used for fast control and ON/ OFF operations to Interchangeable primary liner inelastomer EPDM, FPM, or NBR and working pressure 16 bar at 20° C. There are oval holes in the body to fit with flanges in different standards for possible mounting of the valve as an end valve, or quick discharge from tanks to a pneumatic actuator produced on solenoid air connections according to NAMUR standard.
- Chemical Resistance
- Low Maintenance Requirement
- Low Thermal Conductivity
- Long Service Life
- Easy Installation
- Corrosion Resistance

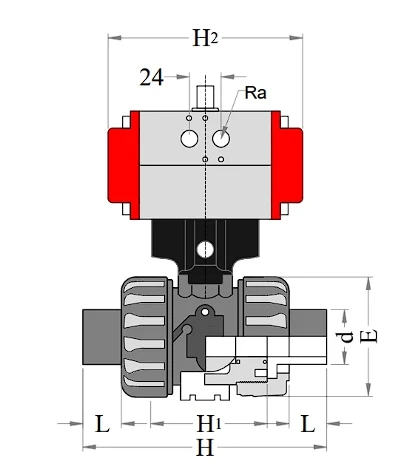

CPVC Pneumatic Ball Valve Details
H2: Actuator Overall Length
Ra: Airport Connection
E: Valve Body Outside Diameter
d: Nominal Pipe Diameter
H: Total Face-to-Face Length
H1: Internal Body Length
L: Socket Insertion Depth
| Size | d | H | H1 | E | L | Ra | H2 |
| 1/2” | 20 | 103 | 65 | 54 | 71 | G1/8” | 160 |
| 3/4” | 25 | 115 | 70 | 65 | 77 | G1/8” | 138 |
| 1” | 32 | 128 | 78 | 73 | 84 | G1/8” | 138 |
| 1-1/4” | 40 | 146 | 88 | 86 | 94 | G1/4” | 155.5 |
| 1-1/2” | 50 | 164 | 93 | 98 | 102 | G1/4” | 155.5 |
| 2” | 63 | 199 | 111 | 122 | 123 | G1/4” | 155.5 |
| 2-1/2” | 75 | 235 | 133 | 164 | 44 | G1/4” | 210 |
| 3” | 90 | 270 | 149 | 203 | 51 | G1/4” | 228 |
| 4” | 110 | 308 | 167 | 238 | 61 | G1/4” | 280.5 |
| Parameter | Details |
| Valve Type | Ball Valve (Quarter-turn) |
| Actuation | Pneumatic (Double Acting / Spring Return) |
| Body Material | CPVC (Chlorinated Polyvinyl Chloride) |
| Ball Material | CPVC / PVC / PTFE-coated |
| Seat Material | PTFE (Teflon) |
| Seal Material | EPDM / FKM (Viton) |
| Size Range | ½” to 4” (DN15 to DN100) |
| Pressure Rating | PN10 / PN16 (up to 16 bar) |
| Temperature Range | 0°C to 90°C |
| End Connection | Socket / Threaded / Flanged |
| Standards | ASTM / ANSI / DIN |
| Port Type | Full Port / Reduced Port |
| Operation Time | Fast (1–2 seconds) |
| Air Supply Pressure | 4 to 8 bar |
| Mounting Standard | ISO 5211 |
| Leakage | Zero leakage (bubble-tight shutoff) |
| Flow Control | On/Off service (not ideal for throttling) |
| Material Type | Thermoplastic (CPVC) |
| Density | 1.45 – 1.58 g/cm³ |
| Tensile Strength | 50 – 70 MPa |
| Flexural Strength | 80 – 100 MPa |
| Impact Strength | High |
| Thermal Conductivity | ~0.14 W/m·K |
| Thermal Expansion | 6–7 × 10⁻⁵ /°C |
| Maximum Service Temp. | Up to 90°C |
| Flammability | Self-extinguishing |
| Chemical Resistance | Excellent (acids, alkalis, salts) |
| Corrosion Resistance | Excellent |
| Electrical Conductivity | Non-conductive |
| UV Resistance | Moderate (needs protection outdoors) |
1. Corrosion-Resistant Construction
Manufactured from CPVC (Chlorinated Polyvinyl Chloride), offering excellent resistance to acids, alkalis, and aggressive chemicals.
2. Pneumatic Actuation
Operated using compressed air for automatic and remote-controlled valve operation.
3. Quarter-Turn Operation
Requires only a 90° rotation for full open or close, ensuring a quick and efficient response.
4. Tight Shut-Off Performance
Equipped with PTFE seats and high-quality seals for leak-proof sealing.
5. High Temperature Resistance
Suitable for handling fluids up to approximately 90°C.
6. Full Bore / Reduced Bore Options
Available in full port for maximum flow or reduced port for compact installations.
7. ISO Mounting Pad
Designed with the ISO 5211 mounting standard for easy actuator installation.
8. Lightweight Design
Lighter than metal valves, reducing installation effort and structural load.
9. Low Maintenance
Non-metallic construction prevents rust, corrosion, and scaling.
10. Bi-Directional Flow
Can operate effectively in both flow directions.
11. Automation Compatibility
Can be integrated with solenoid valves, limit switch boxes, and positioners.
12. Safe for Hazardous Areas
An air-operated system is suitable for explosive or flammable environments.
13. Durable and Long Service Life
Resistant to chemical attack and harsh environmental conditions.
| Valve Size (Inch) | Valve Size (DN) | Max Working Pressure @ 25°C | Max Working Pressure @ 60°C | Max Working Pressure @ 90°C |
| ½” | DN15 | 16 Bar | 10 Bar | 6 Bar |
| ¾” | DN20 | 16 Bar | 10 Bar | 6 Bar |
| 1” | DN25 | 16 Bar | 10 Bar | 6 Bar |
| 1½” | DN40 | 16 Bar | 10 Bar | 6 Bar |
| 2” | DN50 | 16 Bar | 10 Bar | 6 Bar |
| 2½” | DN65 | 10 Bar | 8 Bar | 5 Bar |
| 3” | DN80 | 10 Bar | 8 Bar | 5 Bar |
| 4” | DN100 | 10 Bar | 8 Bar | 5 Bar |
- Based on Actuator Type
| Type | Description | Application |
| Single Acting (Spring Return) | Uses air to operate and a spring to return to the default position | Emergency shut-off systems |
| Double Acting | Uses air pressure for both opening and closing | Continuous industrial automation |
2. Based on Port Design
| Type | Description | Flow Capacity |
| Full Port (Full Bore) | Bore size equals pipe diameter | Maximum flow, low pressure drop |
| Reduced Port (Standard Bore) | Bore slightly smaller than pipe size | Moderate flow, compact design |
- Based on Body Construction
| Type | Description | Maintenance Level |
| Single Piece Body | Compact design, non-serviceable | Low-maintenance applications |
| Two-Piece Body | Screwed body design | Limited serviceability |
| Three-Piece Body | Bolted construction, easy dismantling | Easy maintenance and cleaning |
- Based on Number of Ways
| Type | Description | Application |
| 2-Way Ball Valve | Straight flow (inlet to outlet) | On/off control |
| 3-Way Ball Valve (L-Port) | Diverts flow between two outlets | Flow diversion |
| 3-Way Ball Valve (T-Port) | Mixes or distributes flow | Mixing/diverting systems |
5. Based on Control Function
| Type | Description |
| On/Off Type | Fully open or fully closed operation |
| Modulating Type (with Positioner) | Provides proportional flow control |
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
Benefits of Using CPVC Pneumatic Ball Valve
Excellent Corrosion Resistance
CPVC material provides outstanding resistance to acids, alkalis, salts, and aggressive chemicals.
Automatic Operation
A pneumatic actuator allows remote and automated control, reducing manual intervention.
Fast Quarter-Turn Action
Only a 90° rotation is required for full open or close, ensuring a quick response time.
Long Service Life
Resistant to chemical attack and environmental degradation, increasing durability.
High Temperature Capability
Suitable for handling fluids up to approximately 90°C.
Leak-Proof Sealing
PTFE seats and high-quality seals ensure tight shut-off and minimal leakage.
Low Maintenance
Non-metallic construction prevents rust, scaling, and corrosion, reducing maintenance costs.
Compact and Space-Saving
Requires less installation space compared to other automated valve types.
Lightweight Design
Easier installation compared to metal valves and reduces structural load.
Energy Efficient
Pneumatic actuators consume less energy in continuous industrial operations.
Safe for Hazardous Areas
An air-operated system is suitable for explosive or flammable environments where electric actuators may not be safe.
Cost-Effective Solution
More economical than pneumatic valves while offering reliable performance.
Featured List of Applications
Process Industry
High purity applications
Electronic Industry
Electrical Industry
Semi-conductors industry
Pharmaceutical Industry
Solar power panels
Sugar Industry
Paper & pulp Industry
Nuclear power industry
Automotive Industry
DI water plants
