CPVC Globe Valve
The CPVC Globe Valve is a manually operated valve designed for precise regulation and control of fluid flow in industrial piping systems. Unlike gate valves, globe valves are specifically engineered for throttling and flow adjustment. Manufactured from corrosion-resistant Chlorinated Polyvinyl Chloride (CPVC), this valve is ideal for use in chemical processing, water treatment, and other applications involving aggressive fluids and elevated temperatures. Its internal seat and disc arrangement provide effective sealing and reliable performance in both on/off and modulating service.
Key Features of CPVC Globe Valve
Excellent Flow Control: Designed for throttling and regulating fluid flow.
Corrosion Resistance: CPVC body resists a wide range of chemicals, acids, and alkalis.
High Temperature Resistance: Suitable for continuous operation up to 93°C (200°F).
Reliable Shut-Off: Provides bubble-tight sealing with minimal leakage.
Durable Construction: High mechanical strength for long-term industrial use.
Manual Operation: Handwheel-operated for smooth and accurate flow adjustment.
Versatile Connection Options: Compatible with solvent weld, threaded, or flanged ends.
Non-Conductive Material: Safe for use in electrically sensitive environments.

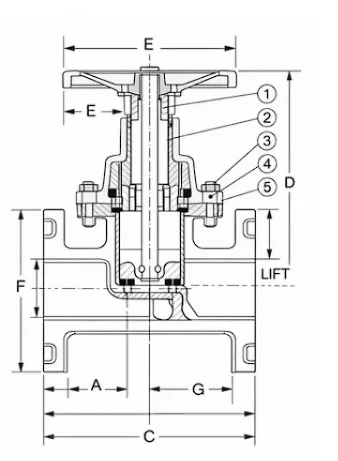

Technical Information
| Parameter | Details |
|---|---|
|
Body Material |
CPVC (Chlorinated Polyvinyl Chloride) |
|
Disc Type |
Solid or plug-type disc |
|
Stem Material |
Stainless Steel or CPVC |
|
Seal Material |
EPDM or FKM (Viton®) |
|
Size Range |
½” to 4″ (15 mm to 100 mm) |
|
End Connections |
Socket (solvent weld), Threaded (NPT/BSP), Flanged |
|
Operating Pressure |
Up to 150 PSI (10.3 bar) at 23°C |
|
Temperature Range |
0°C to 93°C (32°F to 200°F) |
|
Operation Type |
Manual (handwheel) |
|
Flow Characteristics |
Linear flow; ideal for throttling applications |
|
Compliance Standards |
ASTM D1784 (CPVC material), ASTM F1970, NSF/ANSI 61 (if applicable) |
|
Applications |
Chemical processing, water treatment, fluid regulation systems |
CPVC Valves Range
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
