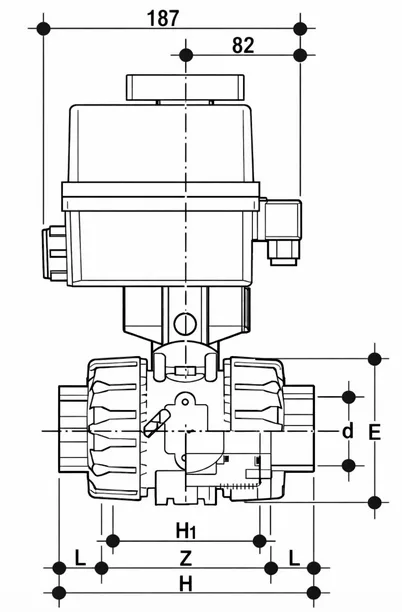

CPVC Electric Actuator Ball Valve
•Used for fast control and ON/OFF operations.
• Size range: from DN 40 up to DN 200 mm, series DIN 3202 K2 and ISO 5752 Medium series 25, DN 250 ÷ 300 mm series DIN 3202 K3 and ISO 5752 Long series 16.
• Working pressure up to 16 bar at 20°C.
• Body material: GR-PP, resistant to UV rays.
• Interchangeable disc in: PVC-U, PP-H, PVC-C, ABS, PVDF.
• Full flanged body with oval holes to fit with flanges in different standards; equipped with ABS inserts to centre flanges and bolts, up to DN 200, DN 250 ÷ 300 drilling on request according to different standards.
• Special full drilled lug version PN 10 with captive stainless steel AISI 316 inserts (DIN 2501 or ANSI 150).
• Possible mounting of valve as end valve, or quick discharge from tanks.
• Interchangeable primary liner in Elastomeric material EPDM, FPM, or NBR.
• Electric actuator produced on FIP specifications:- Manual override and optical position indicator standard supplied standard.- 2 Limit switches standard supplied.
CPVC Valves Range
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
CPVC ELECTRIC ACTUATOR BUTTERFLY VALVE
| d | nominal outside diameter of the pipe in mm |
| DN | nominal internal diameter in mm |
| PN | nominal pressure in bar (max. working pressure at 20°C – water) |
| g | weight in grams |
| U | number of holes |
| s | wall thickness mm |
| SDR | standard dimension ratio = d/s |
| PVC-U | unplasticized polyvinyl chloride |
| PP-H | polypropylene homopolymer |
| PP-GR | polypropylene fiber glass reinforced |
| PVC-C | chlorinated polyvinyl chloride |
| ABS | acrylonitrile-butadiene- styrene |
| PVDF | polyvinylidene fluoride |
| EPDM | ethylene propylene rubber |
| FPM (FKM) | vinylidene fluoride rubber |
| NBR | butadiene-acrylonitrile rubber |
| PTFE | polytetrafluoroethylene |
| PE | polyethylene |
| d | DN | PN | B2 | B7 | T1 | T2 | T3 | H | Z | A min | A max | ØA | f | U | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 40 | 16 | 60 | 253 | 92 | 189 | 91 | 132 | 33 | 99 | 109 | – | 19 | 4 | 2074 |
| 63 | 50 | 16 | 70 | 259 | 92 | 189 | 91 | 147 | 43 | 115 | 125.5 | – | 19 | 4 | 2254 |
| 75 | 65 | 10 | 80 | 266 | 92 | 189 | 91 | 165 | 46 | 128 | 144 | – | 19 | 4 | 2500 |
| 90 | 80 | 10 | 93 | 308 | 128 | 204 | 95.5 | 185 | 49 | 145 | 160 | – | 19 | 8 | 4200 |
| 110 | 100 | 10 | 107 | 322 | 128 | 204 | 95.5 | 211 | 56 | 165 | 190 | – | 19 | 8 | 4550 |
| *125 | 125 | 10 | 120 | 425 | – | – | – | 240 | 64 | 204 | 215 | – | 23 | 8 | 8150 |
| 140 | 125 | 10 | 120 | 425 | – | – | – | 240 | 64 | 204 | 215 | – | 23 | 8 | 8150 |
| 160 | 150 | 10 | 134 | 438 | – | – | – | 268 | 70 | 230 | 242 | – | 23 | 8 | 8900 |
| **200 | 200 | 10 | 161 | 485 | – | – | – | 323 | 71 | 280 | 298 | – | 23 | 8 | 11600 |
| 225 | 200 | 10 | 161 | 485 | – | – | – | 323 | 71 | 280 | 298 | – | 23 | 8 | 11600 |
| ***250 | 250 | 10 | 210 | 597 | – | – | – | 405 | 114 | – | – | 350 | 22 | 12 | 32000 |
| ***280 | 250 | 10 | 210 | 597 | – | – | – | 405 | 114 | – | – | 350 | 22 | 12 | 32000 |
| ***315 | 300 | 8 | 245 | 654 | – | – | – | 475 | 114 | – | – | 400 | 22 | 12 | 39000 |
| ****10” | 250 | 10 | 210 | 597 | – | – | – | 405 | 114 | – | – | 362 | 25.4 | 12 | 32000 |
| ****12” | 300 | 8 | 245 | 654 | – | – | – | 475 | 114 | – | – | 432 | 25.4 | 12 | 39000 |
Actuators
Electric actuator with plastic
housing
Temperature: -10° C / +55° C
Electrical connections
Power supply:
connector DIN 43650 3P+T
(DN 40÷100)
gland ISO M20
(DN 125÷300)
Limit switches: gland ISO M20
Standard equipment:
• Emergency manual override
• Visual position indicator
• 2 auxiliary and adjustable limit
switches FC1, FC2 (5A)
• Torque limiter
• Heating resistor (DN 125÷300)
Options:
• Positioner 4-20 mA or 0-10V
• Fail safe unit
• Heating resistor (DN 40÷100)
• Feed back potentiometer
100 – 1000 – 5000 – 10000 Ohm
• 4-20 mA position transmitter
• 2 additional limit switches
• IP67 or ATEX EEx
| Pos. | Components | Material |
|---|---|---|
| 1 | Corps | PP-GR |
| 2 | Rondelle | Acier inox |
| 3 | Douille | PP |
| 4 | O-Ring douille | EPDM – FPM |
| 5 | Douille pour O-Ring | PP |
| 6 | Rondelle | PTFE |
| 7 | Manchette | EPDM – FPM |
| 8 | Bague anti-friction | PTFE |
| 9 | O-Ring Papillon | EPDM – FPM |
| 10 | Papillon | PVC-U PP-H PVC-C |
| – | PVDF ABS | |
| 11 | Rondelle | Acier inox |
| 12 | Rondelle | Acier inox |
| 13 | Chapeau de protection | PE |
| 14 | Vis | Acier inox |
| 15 | Rondelle | Acier inox |
| 16 | Tige | Acier inox |
| 17 | O-Ring tige | EPDM – FPM |
| 18 | Bague – Seeger | Acier inox |
| 19 | O-Ring | EPDM – FPM |
| 20 | Actionneur electrique | PA6-Nylon + Aluminium* |
| 21 | Vis | Acier inox |
| 22 | Rondelle | Acier inox |
