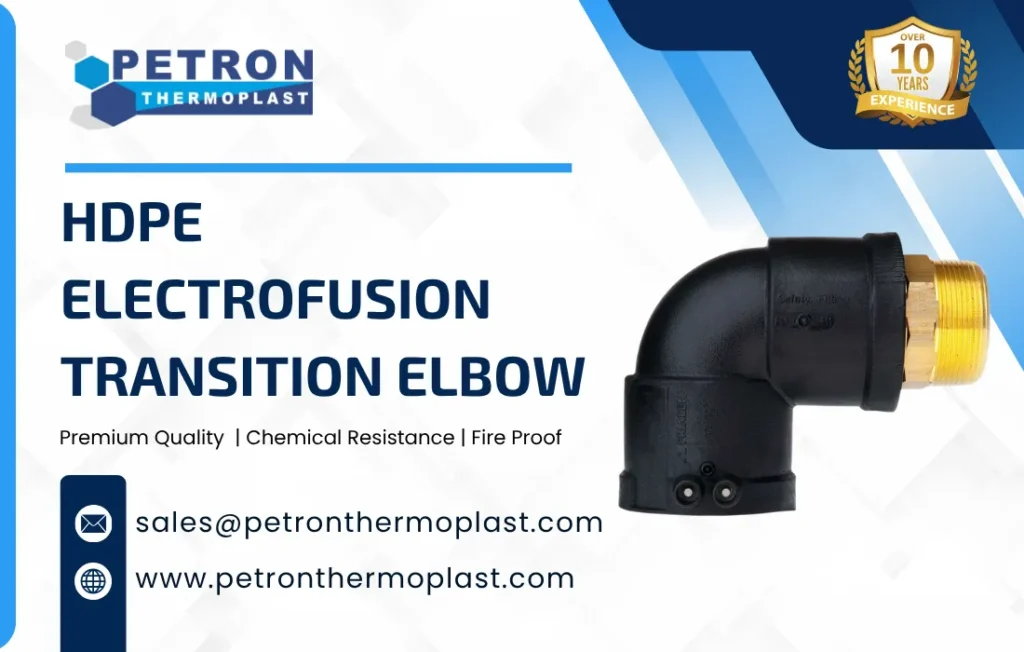

HDPE Electrofusion Transition Elbow
The HDPE Electrofusion Transition Elbow is a specialized fitting designed to connect HDPE pipelines to metal piping systems at a 90° angle. One end of the elbow is made of high-quality PE100 HDPE for electrofusion welding, while the other features a threaded or weldable metal insert, enabling seamless integration between dissimilar materials. This transition elbow is ideal for industrial, water, and gas systems where directional changes and material compatibility are required.
An HDPE Electrofusion Transition Elbow is a specialized pipe fitting used to change the direction of flow (typically 45° or 90°) while connecting an HDPE pipe to a pipe made of a different material such as brass, or PVC using electrofusion technology. An electrofusion socket end with embedded heating coils for joining with HDPE pipe. A transition end (threaded, flanged, or metal insert) for connection to non-HDPE systems, An angled body that redirects the pipeline flow.
- Chemical Resistance
- Low Maintenance Requirement
- Low Thermal Conductivity
- Long Service Life
- Easy Installation
- Corrosion Resistance
HDPE Electrofusion Transition Elbow Details
*Technical Diagram
*Technical Data
| Parameter | Description |
| Material (HDPE Side) | High-Density Polyethylene (PE80 / PE100) |
| Material (Transition End) | Brass, Stainless Steel, Carbon Steel, or PVC |
| Angle Options | 45° and 90° (most common) |
| Joining Method | Electrofusion (HDPE side) + Threaded / Flanged / Compression (other side) |
| Pressure Rating | Typically PN10, PN12.5, PN16 (depending on SDR and design) |
| Voltage Requirement | 39V or 230V (based on electrofusion equipment) |
| Temperature Range | -10°C to 45°C (installation), up to 60°C (operation) |
| Standards Compliance | ISO 4427, ISO 4437, EN 12201, ASTM F1055 |
| Heating Element | Embedded copper resistance wire |
| Fusion Time | Approx. 40–300 seconds (depends on size) |
| Cooling Time | 10–30 minutes depending on diameter |
| Shape | Elbow (angled body for directional change) |
| Structure | One electrofusion socket + one transition end |
| Size Range | Typically 20 mm to 315 mm (larger sizes available on request) |
| Color | Black (HDPE body) with metallic or coated transition end |
| Weight | Lightweight compared to full metal fittings |
| Surface Finish | Smooth internal bore for efficient flow |
| Corrosion Resistance | Excellent (HDPE is corrosion and chemical resistant) |
| Mechanical Strength | High impact and tensile strength |
| Leak Tightness | Fully leak-proof when properly fused |
| Design Features | Compact, robust, and suitable for underground & above-ground use |
- Combines HDPE and metal for cross-material connectivity
- 90° elbow for directional changes in tight spaces
- Secure, leak-proof electrofusion weld on the HDPE side
- Durable metal insert (brass/stainless/carbon steel) on the other end
- Excellent chemical and corrosion resistance
- Ideal for water, gas, compressed air, and industrial fluid systems
| HDPE Material | SDR Value | Typical Pressure Rating |
| PE100 | SDR 11 | PN16 (16 bar) |
| PE100 | SDR 17 | PN10 (10 bar) |
| PE80 | SDR 11 | PN12.5 (12.5 bar) |
| PE80 | SDR 17 | PN8 (8 bar) |
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
Benefits of Using HDPE Electrofusion Transition Elbow
1. Leak-Proof Connection
- Electrofusion creates a homogeneous and permanent joint
- Eliminates leakage risks, even under pressure
2. Dual Functionality
- Performs two functions in one fitting:
- Changes pipeline direction (45° or 90°)
- Connects HDPE to other materials
3. Strong and Durable Joint
- Provides high mechanical strength
- Resistant to impact, vibration, and stress
4. Multi-Material Compatibility
- Connects HDPE pipes to steel, brass, PVC, or other materials
- Ideal for mixed piping systems
5. Corrosion and Chemical Resistance
- HDPE part is highly resistant to corrosion and chemicals
- Suitable for aggressive environments
6. Easy and Safe Installation
- Uses electrofusion welding, which is simple and reliable
- Minimizes installation errors compared to conventional methods
7. Space-Saving Design
- Compact design combines elbow and transition fitting
- Reduces the need for multiple fittings
8. Suitable for Underground Applications
- Excellent for buried pipelines due to leak-proof and durable joints
- Requires minimal maintenance
9. Long Service Life
- Designed for 50+ years of service life under proper conditions
10. High Pressure Capability
- Suitable for medium to high pressure systems (up to PN16)
11. Reliable in Harsh Conditions
- Performs well under temperature variations, soil movement, and external loads
Types of HDPE Electrofusion Transition Elbow
1. 45° Transition Elbow
- Provides a 45-degree change in direction
- Used where gradual flow change is required
- Reduces turbulence and pressure loss
2. 90° Transition Elbow
- Provides a right-angle (90°) turn
- Most commonly used type
- Suitable for compact pipeline layouts
3. Male Threaded Transition Elbow
- One end: Electrofusion socket
- Other end: Male threaded metal insert
- Used for connection with threaded valves or fittings
4. Female Threaded Transition Elbow
- One end: Electrofusion socket
- Other end: Female threaded insert
- Suitable for joining with male threaded components
5. Flanged Transition Elbow
- Transition side provided with a flange
- Used for connecting to pumps, valves, and flanged systems
- Easy to assemble and dismantle
6. Compression Transition Elbow
- Uses a compression-type connection on the transition side
- Quick and simple installation
- Common in water supply systems
7. PVC/Plastic Transition Elbow
- Transition end made of PVC or similar plastic
- Used in low-pressure and lightweight applications
8. Reinforced Transition Elbow
- Designed with extra thickness and strength
- Suitable for heavy-duty or high-stress environments
9. Custom/Hybrid Transition Elbow
- Manufactured as per specific project requirements
- May include special coatings, combined ends, or unique designs
Applications of HDPE Electrofusion Transition Elbow
Process Industry
High Purity Applications
Electronic Industry
Electrical Industry
Semi-conductors Industry
Pharmaceutical Industry
Solar power panels
Sugar Industry
Paper & Pulp Industry
Nuclear Power Industry
Automotive Industry
DI water plants
Why Choose Petron Thermoplast?
Petron Thermoplast is a trusted manufacturer and supplier of HDPE Electrofusion Transition Elbow, engineered for smooth operation, reliable shut-off, and long-term performance in demanding industrial environments.
1. Premium-Grade HDPE Construction
Our HDPE Electrofusion Transition Elbow are manufactured using high-quality, corrosion-resistant HDPE, ensuring excellent performance in chemical, water, and industrial process applications.
2. Robust Gear Mechanism
Each Elbow is equipped with a heavy-duty worm gear box that provides smooth, precise control with reduced operating torque—ideal for medium to large diameter pipelines.
3. Leak-Proof & Reliable Shut-Off
Precision-engineered discs and high-performance elastomer seats (EPDM / FKM) ensure tight sealing and dependable isolation, even under continuous operation.
4. Low Maintenance & Long Service Life
HDPE construction eliminates rust, scaling, and corrosion, while the gear operation minimizes mechanical wear—resulting in minimal maintenance and extended valve life.
5. Wide Size & Connection Options
Available in multiple sizes with wafer, lug, and flanged end connections, compatible with DIN, ANSI, and other international standards.
6. Smooth Flow Control & Throttling
Our HDPE Electrofusion Transition Elbow allow accurate flow regulation, making them suitable for both on/off and throttling applications.
7. Lightweight & Easy Installation
Compared to metal Elbow, HDPE Electrofusion Transition Elbow are lighter and easier to install, reducing installation time and pipeline load.
8. Tested for Industrial Performance
Every Elbow undergoes strict quality checks for dimensional accuracy, sealing performance, and operational reliability before dispatch.
9. Cost-Effective for EPC & Industrial Projects
As a manufacturer, Petron Thermoplast offers competitive pricing for bulk orders, making our valves ideal for EPC contractors and OEMs.
