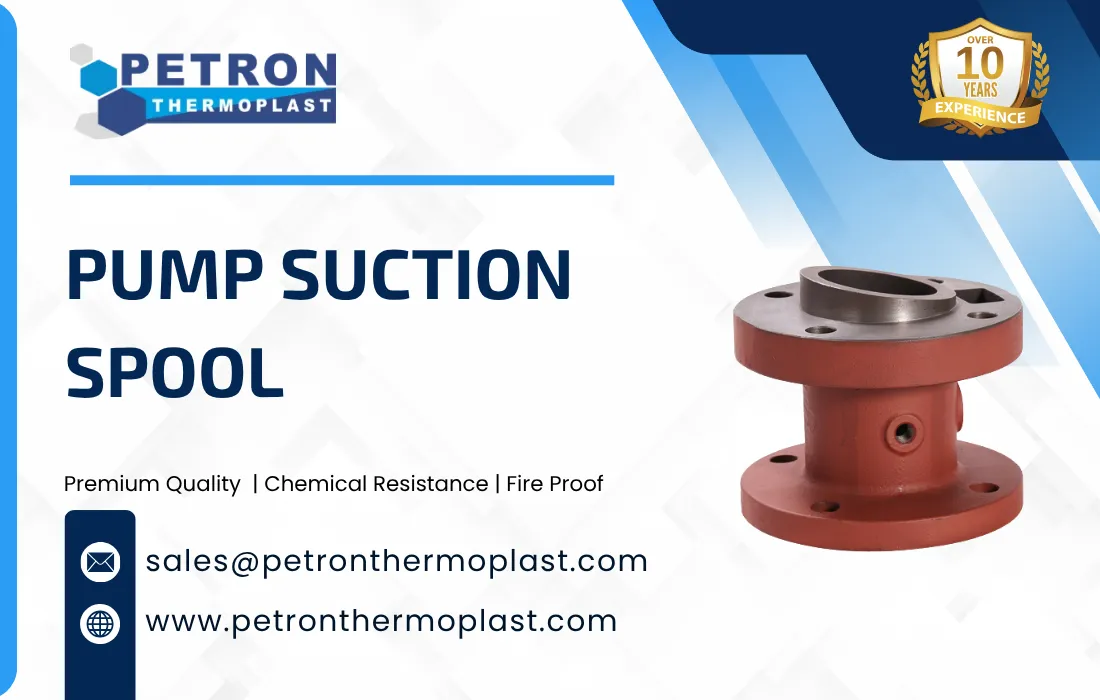

Pump Suction Spool
A Pump Suction Spool is a prefabricated piping section, which is installed at the suction side of a pump to connect the pump inlet with the main pipeline or storage tank. It is designed to ensure the smooth and efficient fluid flow into the pump while maintaining the proper alignment and reducing the flow disturbances.
Pump Suction Spools are commonly fabricated with flanges, reducers, bends, or fittings as per system requirements and they are widely used in chemical plants, water treatment systems, pharmaceutical industries, and industrial fluid handling applications.
Pump Suction Spool Details
| Parameter | Details |
| Product Name | Pump Suction Spool |
| Type | Prefabricated Pump Suction Piping Section |
| Materials Available | PP, FRP, HDPE, PVDF, PVC, CPVC, SS, MS |
| Pipe Size Range | ½” to 48” or customized |
| Connection Type | Flanged, Butt Welded, Socket Welded, Threaded |
| Flange Standards | ANSI, DIN, BS, JIS, IS |
| Design Configuration | Straight, Reducer Type, Bend Type, Customized |
| Fabrication Method | Welding, Butt Fusion, Lamination, Fabrication |
| Operating Pressure | Suitable for Low, Medium & High Pressure Systems |
| Temperature Range | Designed for varying industrial temperatures |
| Surface Finish | Smooth Internal & External Finish |
| Flow Characteristics | Optimized for smooth suction flow with minimal turbulence |
| Corrosion Resistance | Excellent resistance against chemicals and corrosive fluids |
| Alignment Accuracy | Precision fabricated for proper pump alignment |
| Leak Protection | Leak-proof joint and flange connections |
| Application Media | Water, Chemicals, Acids, Alkalis, Process Fluids |
| Installation | Easy installation and maintenance |
| Customization | Available as per pump layout and piping drawings |
| Industrial Applications | Chemical Plants, ETP, WTP, Pharmaceutical, Oil & Gas, Process Industries |
- Used for connecting storage tanks and pipelines to pump suction in industrial systems.
- Widely applied in chemical processing plants for safe chemical transfer operations.
- Suitable for water treatment and wastewater management systems.
- Applied in oil & gas industries for fuel and liquid transfer systems.
- Ideal for acid, alkali, and corrosive fluid pumping applications.
- Used in ETP, scrubber, and dosing systems for efficient suction flow management.
- Used in customized piping systems requiring accurate pump alignment and secure connections.
- Connects storage tanks to pump suction lines for efficient fluid transfer.
- Used in pharmaceutical industries for hygienic process fluid handling.
- Applied in scrubber and dosing systems for controlled fluid movement.
- Used in customized industrial piping layouts requiring accurate alignment.
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
Key Features of Pump Suction Spool
Precision Fabrication
Manufactured for accurate alignment with pump suction systems.
Smooth Flow Design
Minimizes turbulence and pressure loss for efficient pump performance.
Leak-Proof Construction
Ensures safe and reliable fluid transfer operations.
Corrosion-Resistant Materials
Available in PP, FRP, HDPE, PVDF, SS, and other chemical-resistant materials.
High Mechanical Strength
Designed to withstand industrial operating conditions and vibration loads.
Customizable Configuration
Available in straight, reducer, bend, and custom spool designs.
Excellent Chemical Compatibility
Suitable for handling acids, alkalis, chemicals, and process fluids.
Temperature & Pressure Resistance
Performs efficiently under varying industrial temperatures and pressures.
Easy Installation & Maintenance
Simplifies piping assembly, inspection, and replacement.
Strong Flange & Joint Integrity
Provides secure and durable connections with pumps and pipelines.
Long Service Life
Built for dependable performance with low maintenance requirements.
Wide Industrial Usage
Ideal for chemical plants, water treatment systems, pharmaceutical, and process industries.
Why Choose Petron Thermoplast?
Petron Thermoplast is your go-to solution when you need precise flow control in industrial applications. While they create higher pressure drops than some alternatives, that tortuous flow path is exactly what gives them their incredible throttling capability. You should specifically use the Petron Thermoplast Pump Suction Spool when you need frequent flow adjustments, precise control is more important than minimal pressure drop, reliable shut-off is critical, or when you are dealing with steam, hot water, or other fluids that benefit from gradual flow changes.
Conclusion
Pump Suction Spools are an essential component for ensuring the efficient, smooth, and reliable fluid flow into the industrial pumps. Their robust construction, precise alignment, leak-proof design, and corrosion-resistant properties to make them suitable for a wide range of industrial applications, including chemical processing, water treatment, pharmaceutical, and other industrial processes. With customizable configurations, easy installation, and the long-lasting performance of spool, Pump Suction Spools help to enhance the pump efficiency, reduce maintenance needs, and improve the overall system reliability.
