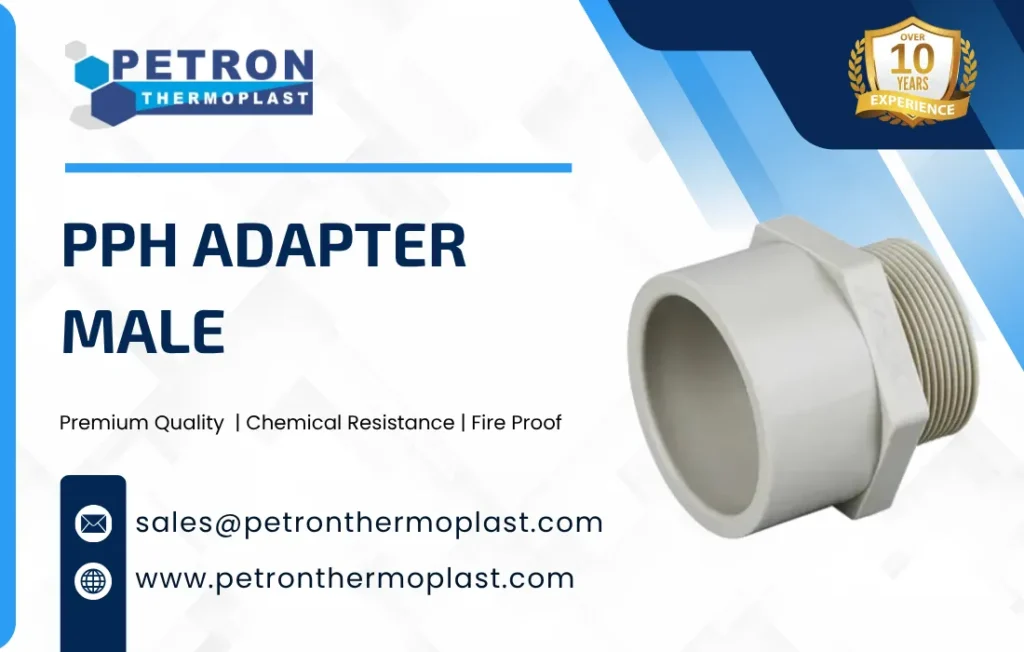

PPH Male Adapter
A PPH (Polypropylene Homopolymer) Male Adapter is a pipe fitting used to connect a PPH pipe (socket end) to a female threaded connection such as valves, fittings, or equipment. It has one end with a male adapter and the other end designed for socket welding or solvent connection. A PPH Male Adapter is a transition fitting with a male threaded end, used to connect PPH pipes to female adapter components in industrial piping systems.
The PPH Male Adapter connects to a female adapter pipe on the other end of the copper pipe. Adapters can be used to connect two pipes of the same diameter. Male adapters with two different diameters at both ends can be purchased if a size difference is required between the pipes. Adapter fittings are a type of connection that can be used to extend or terminate a piping system.
- Chemical Resistance
- Low Maintenance Requirement
- Low Thermal Conductivity
- Long Service Life
- Easy Installation
- Corrosion Resistance
PPH Male Adapter Details
ID – Inner Diameter
OD – Outer Diameter
WT – Wall Thickness
SL – Socket Length
L – Overall Length (including threaded portion)
| Size (Inch) | ID (mm) | OD (mm) | WT (mm) | SL (mm) | L (mm) |
| ½ | 21.64 | 29.10 | 3.73 | 22.23 | 42 |
| ¾ | 26.97 | 34.79 | 3.91 | 25.40 | 48 |
| 1 | 33.78 | 42.88 | 4.55 | 28.58 | 56 |
| 1¼ | 42.55 | 52.25 | 4.85 | 31.75 | 58 |
| 1½ | 48.72 | 58.88 | 5.08 | 34.93 | 66 |
| 2 | 60.78 | 71.86 | 5.54 | 38.10 | 69 |
| 2½ | 73.56 | 87.58 | 7.01 | 44.45 | 72 |
| 3 | 89.50 | 113.74 | 7.62 | 47.63 | 76 |
| 4 | 114.99 | 132.11 | 8.56 | 57.15 | 81 |
| Parameter | Specification |
| Product Type | Male Threaded Adapter |
| Material | PPH (Polypropylene Homopolymer) |
| Material Grade | PP-H (Type 1) |
| Pressure Rating | PN10 / PN16 |
| Maximum Working Pressure | Up to 10–16 bar (at 20°C) |
| Temperature Range | -10°C to +95°C (short term up to 100°C) |
| Hydrostatic Test | 4.2 MPa at 20°C |
| Thread Type | BSP / BSPT / NPT |
| Connection Type | Male Thread × Socket / Fusion End |
| Size Range | DN15 (½”) to DN100 (4”) |
| Standards | DIN 8077/8078, ASTM D4101 |
| Jointing Method | Socket fusion / Butt fusion |
| Chemical Resistance | Excellent (acids, alkalis, solvents) |
1. Corrosion and Chemical Resistance
- Made of PPH material, highly resistant to acids, alkalis, and other aggressive chemicals
- Ideal for chemical processing, water treatment, and industrial piping systems
2. Durable and Long-Lasting
- High impact strength and wear-resistant construction
- Ensures long service life even in harsh conditions
3. Leak-Proof Connection
- Male threaded end ensures tight and secure joints with female fittings
- Compatible with BSP, NPT, and metric threads
- Prevents leakage in medium-pressure pipelines
4. Easy Installation
- Connects female threaded equipment directly to PPH pipes
- Socket/fusion end provides quick and secure connection
- Reduces installation labor and time
5. Lightweight Design
- Easier to handle compared to metal adapters
- Simplifies transportation, installation, and maintenance
6. Versatile Applications
- Connects PPH pipes to valves, pumps, tanks, and other threaded equipment
- Suitable for industrial, chemical, and water piping systems
7. Cost-Effective
- Lower cost than metal adapters
- Reduces maintenance and replacement expenses
8. Temperature & Pressure Resistance
- Works safely in medium-pressure systems (PN10–PN16)
- Temperature range: -10°C to +95°C
9. Corrosion-Free and Non-Rusting
- Unlike metal adapters, PPH does not rust, scale, or corrode
- Ensures system integrity and fluid purity
10. Low Maintenance
- Minimal wear and tear due to chemical resistance
- Easy to inspect and replace if needed
| Parameter | Specification |
| Standard Pressure Rating | PN10 / PN16 |
| Maximum Working Pressure | 10 – 16 bar (at 20°C) |
| Typical Pressure Range (General PPH Fittings) | 6 – 16 bar |
| Hydrostatic Test Pressure | 1.5 × PN (≈ 15–24 bar) |
| Working Pressure (Example Model) | 1.6 MPa (16 bar) |
| Temperature Effect | Pressure decreases as temperature increases |
| Applicable Standards | DIN / ASTM / ISO |
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
Benefits of Using PPH Male Adapter
1. Excellent Chemical Resistance
- PPH material resists acids, alkalis, salts, and corrosive chemicals
- Ideal for chemical processing, water treatment, and industrial applications
2. Durable and Long-Lasting
- High impact strength and wear resistance
- Offers long service life even under harsh conditions
3. Easy Installation
- Male threaded end connects directly to female threaded components
- Socket/fusion end connects to PPH pipe via solvent welding or heat fusion
- Reduces labor and installation time
4. Leak-Proof Connection
- Precision threads provide tight, secure, and leak-free joints
- Prevents damage to downstream equipment
5. Lightweight Design
- Easier to handle compared to metal fittings
- Simplifies transport, installation, and maintenance
6. Versatile Application
- Can connect PPH pipes to valves, pumps, tanks, and other threaded equipment
- Suitable for industrial, chemical, and water systems
7. Cost-Effective
- Lower material and installation cost compared to metal adapters
- Reduced maintenance costs due to chemical resistance and durability
8. Temperature & Pressure Tolerance
- Can operate safely in medium-pressure systems (PN10–PN16)
- Handles standard industrial temperature ranges (-10°C to +95°C)
9. Corrosion-Free & Non-Rusting
- Unlike metal adapters, PPH does not rust or corrode
- Maintains system integrity and fluid purity
10. Low Maintenance
- Minimal wear and tear
- Easy to inspect and replace if necessary
Types of PPH Male Adapter
BSP Male Adapter
- British Standard Pipe (BSP) thread
- Most common in industrial and chemical piping
- Compatible with BSP female threaded fittings
NPT Male Adapter
- National Pipe Thread (tapered thread)
- Provides tight, leak-proof connections
- Widely used in USA and international piping standards
Metric Male Adapter
- Used in European and Asian systems
- Designed for precision connections with metric female threads
Socket × Male Adapter
- One end: socket for PPH pipe
- Other end: male threaded connection
- Most common type for general piping systems
Butt Fusion × Male Adapter
- One end: butt-fusion connection to PPH pipe
- Other end: male threaded connection
- Provides strong, permanent joints
Union × Male Adapter
- Combines union connection with male thread
- Allows easy removal and maintenance
Standard Male Adapter
- Basic design for general piping connections
- Lightweight, corrosion-resistant
High-Pressure Male Adapter
- Thicker walls for PN16 or higher pressure systems
- Suitable for industrial and chemical applications
Chemical-Grade / High Purity Male Adapter
- Designed for highly corrosive or high-purity applications
- Made from high-quality PPH material with smooth internal surfaces
Applications of PPH Male Adapter
Process Industry
High Purity Applications
Electronic Industry
Electrical Industry
Semi-conductors Industry
Pharmaceutical Industry
Solar power panels
Sugar Industry
Paper & Pulp Industry
Nuclear Power Industry
Automotive Industry
DI water plants
Why Choose Petron Thermoplast?
At Petron Thermoplast, we are committed to sharing technical knowledge with our customers and the engineering community. We believe that knowledge leads to better decisions and longer-lasting systems. Petron Thermoplast Male Adapter is an important part of any industrial filtration system, helping to protect the equipment, improve efficiency, and ensure the reliable fluid flow.
A Male Adapter in Petron Thermoplast is a simple but powerful way to boost performance and extend equipment life. Choose a Male Adapter when volumes of solids are large and need to be filtered efficiently.
