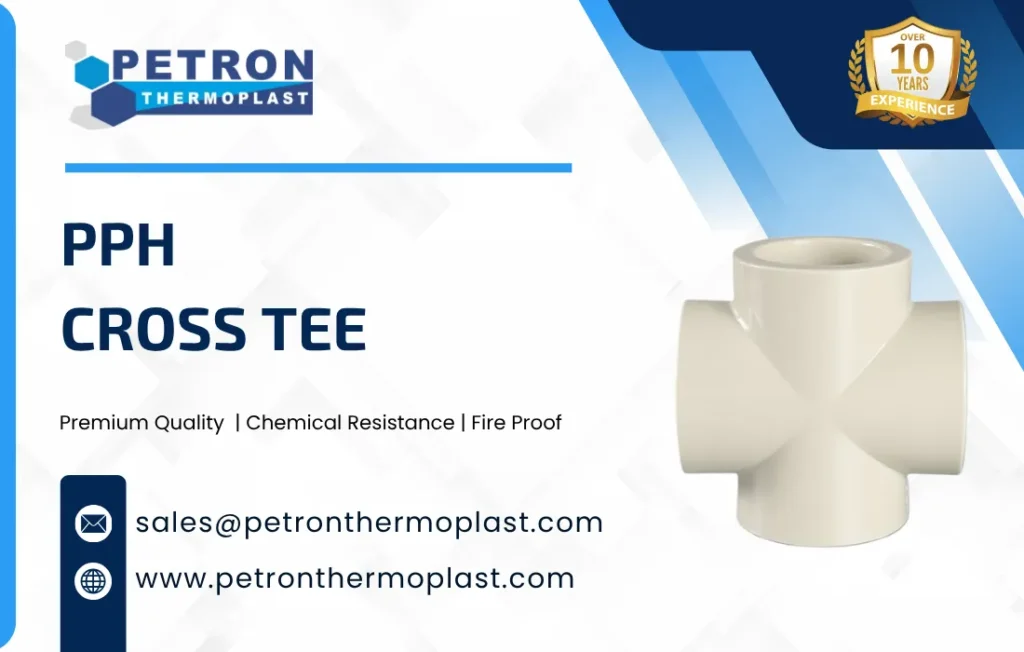

PPH Cross Tee
A PPH (Polypropylene Homopolymer) Cross Tee is a pipe fitting with four equal or reduced outlets arranged in a cross (plus “+”) shape, used to connect four pipes at right angles (90°) in a piping system.The PPH Cross Tee is a four-way pipe fitting designed to connect and branch flow in three directions from a single central inlet in a pipeline system. Made from Polypropylene Homopolymer (PPH), this fitting offers superior chemical resistance, rigidity, and thermal performance, making it ideal for demanding industrial and corrosive applications.
The cross tee allows for efficient distribution or merging of fluids and is commonly used in chemical processing, industrial fluid transport, water treatment, and aggressive media handling systems. Its robust and leak-proof construction ensures long-term reliability in high-performance piping networks.
- Chemical Resistance
- Low Maintenance Requirement
- Low Thermal Conductivity
- Long Service Life
- Easy Installation
- Corrosion Resistance
PPH Cross Tee Details
ID – Inner Diameter,
OD – Outer Diameter,
WT – Wall Thickness,
SL – Socket Length,
L – Overall Length
| Sizes | ID | OD | WT | SL | L |
| 1/2″ | 15.8 | 21.34 | 2.77 | 18 | 55 |
| 3/4″ | 20.93 | 26.67 | 2.87 | 20 | 60 |
| 1″ | 26.64 | 33.4 | 3.38 | 24 | 70 |
| 1-1/4″ | 35.05 | 42.16 | 3.56 | 28 | 80 |
| 1-1/2″ | 40.89 | 48.26 | 3.68 | 32 | 90 |
| 2″ | 52.5 | 60.32 | 3.91 | 38 | 110 |
| 2-1/2″ | 62.71 | 73.02 | 5.16 | 44 | 125 |
| 3″ | 77.93 | 88.9 | 5.49 | 50 | 145 |
| 4″ | 102.26 | 114.3 | 6.02 | 60 | 180 |
| 6″ | 154.05 | 168.27 | 7.11 | 80 | 260 |
| 8″ | 202.72 | 219.07 | 8.18 | 95 | 340 |
| 10″ | 254.51 | 273.05 | 9.27 | 110 | 420 |
| 12″ | 303.23 | 323.85 | 10.31 | 125 | 500 |
| Parameter | Specification Details |
| Product Type | Cross Tee (Four-Way Tee) |
| Material | PPH (Polypropylene Homopolymer) |
| Design | Four outlets at 90° (Cross shape) |
| Connection Type | Socket Fusion / Butt Fusion |
| Pressure Rating | Up to PN10 (10 bar) |
| Temperature Range | 0°C to +100°C |
| Size Range | DN15 to DN300 (½” to 12”) |
| Standards | DIN 8077/8078, ISO 15494, EN ISO |
| Color | Natural / Grey / Black |
| Manufacturing Method | Injection molded / Fabricated |
| Applications | Chemical pipelines, water treatment, industrial systems |
| Structure | Four-way symmetrical fitting |
| Weight | Lightweight (Easy installation compared to metal) |
| Surface Finish | Smooth internal and external surfaces |
| Corrosion Resistance | Excellent against acids, alkalis, and salts |
| Flow Distribution | Allows flow in four directions |
| Pressure Loss | Moderate (Due to multi-directional flow) |
| Thermal Stability | High (Works efficiently at elevated temperatures) |
| Joint Strength | High strength via fusion welding |
| Durability | Long service life, non-rusting, and scale-resistant |
Four-Way Connection – Efficiently manages branching flow in complex piping layouts.
Excellent Chemical Resistance – Handles aggressive chemicals, acids, and alkalis.
High-Temperature Capability – Performs reliably at elevated temperatures up to 100°C.
Corrosion-Free and Durable – Ideal for long-term use in harsh environments.
Leak-Proof Joints – Ensures safe operation in critical process systems.
Smooth Internal Surface – Reduces flow resistance and minimizes buildup.
Fusion Weld Compatible – Suitable for both socket and butt fusion installations
| Parameter | Specification Details |
| Nominal Pressure Rating | PN10 (Standard) |
| Maximum Working Pressure | Up to 10 bar (at 20°C) |
| Optional Rating | PN16 (For thicker SDR / special designs) |
| Hydrostatic Test Pressure | ~15 bar (1.5 × PN10) |
| Applicable Standards | DIN, ISO |
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
Benefits of Using PPH Cross Tee
1. Excellent Chemical Resistance
- Highly resistant to acids, alkalis, and corrosive chemicals
- Ideal for chemical processing, water treatment, and industrial fluids
2. Corrosion-Free Material
- Does not rust, scale, or corrode like metal fittings
- Ensures long service life in aggressive environments
3. High Temperature Resistance
- Can handle temperatures up to ~100°C
- Maintains structural integrity under thermal stress
4. Strong and Durable
- High mechanical strength and rigidity
- Resistant to wear, abrasion, and pressure variations
5. Efficient Flow Distribution
- Four-way design allows smooth branching and merging of flow
- Suitable for complex pipeline networks
6. Leak-Proof Performance
- Compatible with socket fusion and butt fusion welding
- Provides secure, tight, and leak-free joints
7. Smooth Internal Surface
- Reduces friction and pressure loss
- Prevents scaling and buildup inside the pipe
8. Lightweight & Easy Installation
- Easy to handle, transport, and install
- Reduces labor and installation cost
9. Low Maintenance
- No corrosion or scaling → minimal maintenance
- Long lifespan (often 50+ years in proper conditions)
Types of PPH Cross Tee
1. Equal Cross Tee
- All four ends have the same diameter
- Ensures uniform flow distribution in all directions
- Most commonly used type
2. Reducing (Unequal) Cross Tee
- One or more ends have different diameters
- Used to connect pipes of different sizes
- Helps control flow or reduce branch size
3. Socket Fusion Cross Tee
- Ends are designed for socket welding (fusion joint)
- Provides strong, leak-proof connections
- Common in small to medium diameter piping
4. Butt Fusion Cross Tee
- Used for butt welding joints
- Ideal for larger pipe sizes
- Ensures high strength and pressure resistance
5. Threaded Cross Tee
- Provided with threaded ends
- Easy installation and removal
- Used in low-pressure applications
6. Customized / Fabricated Cross Tee
- Manufactured as per specific industrial requirements
- Can vary in size, pressure rating, and design
- Used in specialized systems
Applications of PPH Cross Tee
Process Industry
High Purity Applications
Electronic Industry
Electrical Industry
Semi-conductors Industry
Pharmaceutical Industry
Solar power panels
Sugar Industry
Paper & Pulp Industry
Nuclear Power Industry
Automotive Industry
DI water plants
Why Choose Petron Thermoplast?
As a top manufacturer, Petron Thermoplast provides PPH Cross Tee for oil & gas, chemical industries, etc. Enjoy fair pricing, thorough pre-shipment testing, and quick global delivery to keep your projects running. Petron Thermoplast specializes in high-performance flow control solutions. Our expertise in manufacturing the specialized components ensures that your pipelines remain efficient and clean. With a commitment to quality and rigorous research and development, we offer the technical precision needed for demanding industrial applications.
At Petron Thermoplast, selecting the PPH Cross Tee for an industrial application requires a clear understanding of the system demands and operational requirements. A PPH Cross Tee is well-suited for applications that involve water fluid mixing and simultaneous flow distribution, while a proper evaluation of the system needs ensures the selected design aligns with performance expectations, enhancing the efficiency and reliability of the PPH Cross Tee
