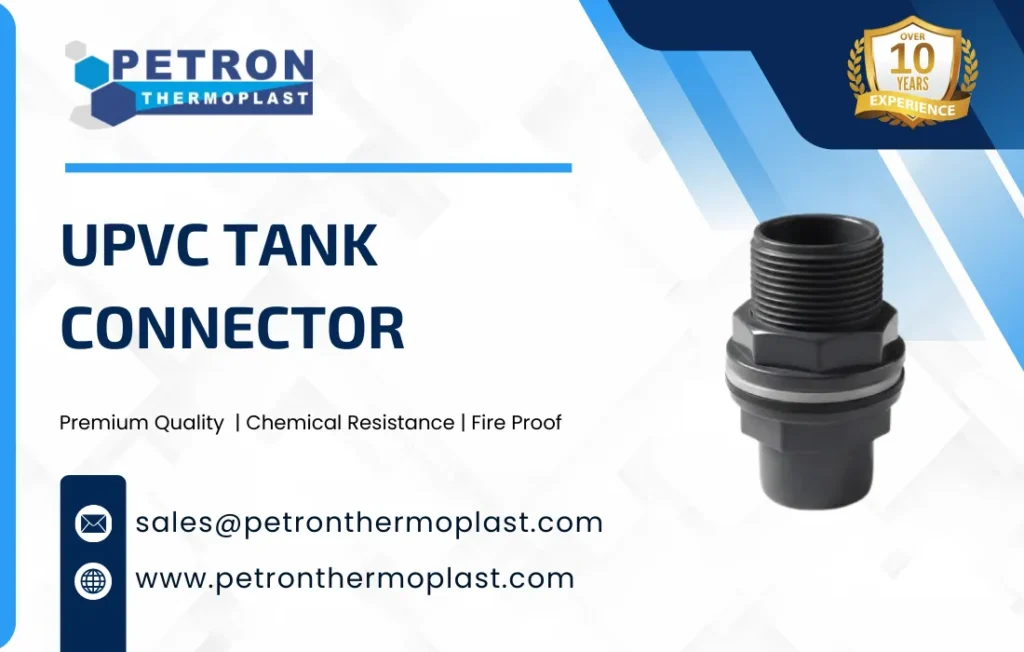

UPVC Tank Connector
The UPVC Tank Connector is a threaded fitting used to create a secure, leak-proof connection between a storage tank and a pipeline system. Made from high-quality Unplasticized Polyvinyl Chloride (UPVC), this connector is ideal for both inlet and outlet applications in tanks used for water, chemicals, or industrial fluids. It provides excellent chemical resistance, durability, and easy installation in a wide range of tank configurations.
- Chemical Resistance
- Low Maintenance Requirement
- Low Thermal Conductivity
- Long Service Life
- Easy Installation
- Corrosion Resistance
UPVC Tank Connector Details
T – Thread Length
H – Nut Thickness
L – Socket Depth
OD – Outer Diameter
| Size (Inch) | T (mm) | H (mm) | L (mm) | OD (mm) |
| ½″ | 16 | 12 | 22 | 21.3 |
| ¾″ | 19 | 14 | 25 | 26.7 |
| 1″ | 22 | 16 | 30 | 33.4 |
| 1¼″ | 25 | 18 | 34 | 42.2 |
| 1½″ | 29 | 19 | 38 | 48.3 |
| 2″ | 34 | 22 | 45 | 60.3 |
| 2½″ | 38 | 24 | 52 | 73.0 |
| 3″ | 42 | 26 | 58 | 89.0 |
| 4″ | 48 | 30 | 64 | 114.0 |
| Parameter / Feature | Details & Specifications |
| Product Name | UPVC Tank Connector |
| Material | Unplasticized Polyvinyl Chloride (UPVC) |
| Function | Connects pipeline to tank with leak-proof sealing |
| Type | Bulkhead / Tank Connector |
| Connection Type | Threaded / Socket (plain × threaded) |
| Size Range | ½” to 4” (15 mm to 110 mm) |
| Operating Pressure | Up to 6 bar (≈90 psi) |
| Temperature Range | 0°C to 60°C |
| Installation Method | Through tank wall using gasket & lock nut |
| Sealing Method | Rubber gasket / washer for leak-proof joint |
| Standards | ISO, DIN, ASTM |
| Color | Grey / White |
| Manufacturing Process | Injection molded |
| Application | Water tanks, chemical tanks, industrial vessels |
| Corrosion Resistance | Excellent resistance to rust, chemicals, acids & alkalis |
| Mechanical Strength | High rigidity and durability |
| Pressure Resistance | Suitable for low to medium pressure systems (up to 6 bar) |
| Weight | Lightweight and easy to install |
| Leak-Proof Performance | Tight sealing using gasket and nut arrangement |
| Thermal Conductivity | Low (good insulation property) |
| Chemical Resistance | Suitable for aggressive fluids and industrial chemicals |
| Hygienic Property | Non-toxic, suitable for potable water |
| Durability | Long service life (often >50 years) |
| UV Resistance | Good (UV stabilized grades available) |
| Maintenance | Low maintenance, non-scaling and non-corrosive |
Leak-Proof Design: Ensures a tight seal between the tank and piping system.
Durable & Rigid Construction: Offers high strength and long service life.
Corrosion & Chemical Resistant: Suitable for use with aggressive fluids and corrosive environments.
Easy Installation: Can be easily mounted on plastic or metal tanks.
Versatile Use: Supports both inlet and outlet connections.
Threaded Connection: Provides secure fitment with external or internal threading.
| Pressure Class (PN) | Max Working Pressure (bar) | Max Working Pressure (psi) | Typical Use |
| PN 4 | 4 bar | ~58 psi | Low-pressure tanks, small overhead tanks |
| PN 6 | 6 bar | ~87 psi | Domestic water tanks, small irrigation systems |
| PN 10 | 10 bar | ~145 psi | High-rise overhead tanks, industrial tanks |
| PN 12.5 | 12.5 bar | ~181 psi | Medium industrial applications |
| PN 16 | 16 bar | ~232 psi | Large or pressurized tanks, industrial water storage |
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
Benefits of UPVC Tank Connector
Corrosion-Free UPVC Tank Connector
- Unlike metal connectors, UPVC does not rust, scale, and corrode.
- Ideal for storing fluid water, chemicals, and wastewater.
Leak-Proof Joints UPVC Tank Connector
- When properly solvent-welded or gasketed to provide tight and reliable connections.
- Reduces water loss and maintenance issues.
Lightweight UPVC Tank Connector
- Much lighter than GI, MS, or SS connectors.
- Easy to handle, transport, and install, even in tight tank spaces.
Cost-Effective UPVC Tank Connector
- Lower initial cost than tank connectors
- Reduced installation labor and minimal long-term maintenance.
Durable and Long-Lasting UPVC Tank Connector
- Typical service life: under normal conditions.
- Resistant to weathering, UV radiation, and chemical attack.
Easy Installation & Replacement UPVC Tank Connector
- Simple and solvent cement or push-fit connections.
- Can be easily removed or replaced without cutting the tank.
Chemical Resistance UPVC Tank Connector
- Resistant to acids, alkalis, salts, and most chemicals.
- Suitable for industrial water storage and chemical tanks.
Thermal & Electrical Insulation
- Non-conductive and low thermal conductivity.
- Safe for installations near electrical equipment and piping systems.
Smooth Internal Surface UPVC Tank Connector
- Prevents scaling, sediment buildup, and bacterial growth.
- Ensures smooth water flow and reduces pressure loss.
Versatility
- Resistant to acids, alkalis, salts, and most chemicals.
- Suitable for industrial water storage and chemical tanks.
Types of UPVC Tank Connector
Threaded Upvc Tank Connectors
These connectors have threaded ends that screw into corresponding openings on the tank. They may have male or female threaded connectors, and they can be used for a wide range of water fluid types.
Flanged Upvc Tank Connectors
Flanged connectors have upvc flanges on both ends that are bolted or screwed on to corresponding flanges on the tank. Flanged connections are commonly used in industrial and chemical applications where high-pressure or corrosive water fluids are involved.
Bulkhead UPVC Tank Connectors
Bulkhead connectors are designed to pass through the wall of a tank or container. They consist of a fitting that mounts on both sides of the tanks and wall, which provides a connection point on each side.
Push-to-Connect Upvc Tank Connectors
Similar to push-to-connectors are fittings used in chemicals, these connectors allow for quick and easy connection by simply pushing the pipe or hose into the connector. O-rings or seals inside the connector ensure a tight seal.
