UPVC Tee
UPVC Tee in a straight line and one on the side at a 90-degree angle. UPVC Tees are used to divide a single line into two independent lines by connecting them at a 90-degree angle. A UPVC tee can also be used to join two lines together to form a single mainline. Petron Thermoplast is a leading company that provides the best chemical component that is incredibly adaptable and one of the most extensively used parts. The majority of UPVC tees have slide socket ends; however, there are threaded versions as well.
Because they come with two sides in a straight line and one on the side at an angle of 90 degrees, our UPVC tees are fitted with three ends. These tees are used to join two lines together to form a single mainline. They are also often employed in the construction of UPVC constructions. UPVC Tees are incredibly adaptable fittings since they are one of the most extensively utilised parts in the chemical industry.
- Chemical Resistance
- Low Maintenance Requirement
- Low Thermal Conductivity
- Long Service Life
- Easy Installation
- Corrosion Resistance

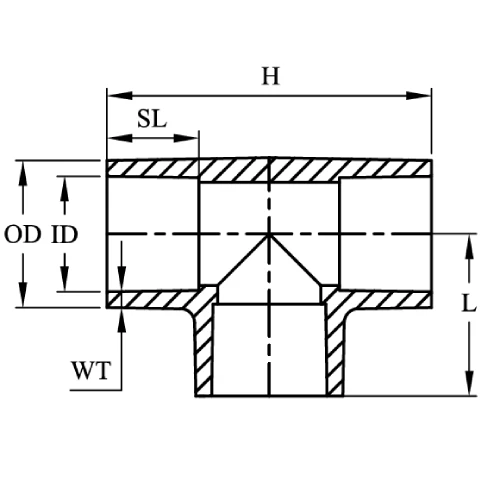

UPVC Tee Details
ID: Internal Diameter
OD: Outside Diameter
WT: Wall Thickness
SL: Socket Length
L & H: Typically refer to the Total Length and Height/Overall Clearance of the fitting.
| Size (Inch) | ID (mm) | OD (mm) | WT (mm) | SL (mm) | L (mm) | H (mm) |
| ½ | 21.64 | 29.10 | 3.73 | 22.23 | 50 | 72 |
| ¾ | 26.97 | 34.79 | 3.91 | 25.40 | 57 | 79 |
| 1 | 33.78 | 42.88 | 4.55 | 28.58 | 67 | 93 |
| 1¼ | 42.55 | 52.25 | 4.85 | 31.75 | 80 | 108 |
| 1½ | 48.72 | 58.88 | 5.08 | 34.93 | 94 | 121 |
| 2 | 60.78 | 71.86 | 5.54 | 38.10 | 107 | 138 |
| 2½ | 73.56 | 87.58 | 7.01 | 44.45 | 130 | 174 |
| 3 | 89.50 | 113.74 | 7.62 | 47.63 | 140 | 200 |
| 4 | 114.99 | 132.11 | 8.56 | 57.15 | 188 | 245 |
| 6 | 153.88 | 168.10 | 7.11 | 77.25 | 250 | 330 |
| Parameter | Details / Specification |
| Product Name | UPVC Tee (Equal / Reducing Tee) |
| Material | Unplasticized Polyvinyl Chloride (UPVC) |
| Function | Connects three pipes and allows flow in three directions |
| Type | Equal Tee / Reducing Tee / Threaded Tee |
| Angle | 90° branch connection |
| Connection Type | Socket (solvent weld) / Threaded / Slip |
| Size Range | ½” to 12” (15 mm to 315 mm approx.) |
| Pressure Rating | Up to PN10 (10 bar), higher for SCH 80 variants |
| Temperature Range | Up to 60°C (140°F) |
| Standards | ASTM D2466, ASTM D2467, DIN, ISO |
| Schedule Type | SCH 40 / SCH 80 (based on wall thickness) |
| Color | White / Grey / Blue |
| Manufacturing Process | Injection molded |
| Application | Water supply, plumbing, irrigation, chemical & industrial piping |
| Density | 1350–1460 kg/m³ |
| Tensile Strength | High (approx. 45–55 MPa typical for UPVC) |
| Impact Strength | Good resistance to impact and stress |
| Thermal Conductivity | Low (good insulation property) |
| Vicat Softening Temp | ≥ 80°C |
| Corrosion Resistance | Excellent resistance to acids, alkalis, and salts |
| Chemical Resistance | Suitable for aggressive chemicals and fluids |
| Surface Finish | Smooth inner surface reduces friction loss |
| Weight | Lightweight and easy to handle |
| Durability | Long service life (up to ~50 years) |
| Water Absorption | Very low |
| UV Resistance | UV stabilized grades available |
| Flammability | Self-extinguishing |
- Made from unplasticized PVC (UPVC) – rigid and strong
- Excellent corrosion resistance – no rust, scaling, or chemical attack
- High chemical resistance – suitable for acids, alkalis, and salts
- Lightweight – easy handling, transport, and installation
- Smooth inner surface – low friction loss and better flow
- Leak-proof joints – strong solvent-weld or threaded connections
- Long service life – up to 40–50 years under normal conditions
- Low maintenance – no painting or anti-corrosion treatment needed
- Good pressure handling capacity – suitable for water distribution
- Non-toxic & safe for potable water (as per standards)
- UV stabilized (in quality products) – suitable for outdoor use
- Cost-effective – lower installation and lifecycle cost
- Non-conductive – safe near electrical installations
- Dimensionally accurate – ensures proper fitting and alignment
| Class / PN Rating | Working Pressure | Pressure (kg/cm²) | Pressure (bar) | Pressure (psi) |
| Class 1 / PN 6 | Low pressure | 6 | 6 | ~87 psi |
| Class 2 / PN 10 | Medium pressure | 10 | 10 | ~145 psi |
| Class 3 / PN 16 | High pressure | 16 | 16 | ~232 psi |
| Class 4 / PN 20 | Very high pressure | 20 | 20 | ~290 psi |
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
Benefits of UPVC Tee
Corrosion resistant
does not rust, scale, or react with water
High chemical resistance
suitable for acids, alkalis, and salts
Lightweight
easy to handle, transport, and install
Smooth inner surface
reduces friction loss and improves flow
Leak-proof joints
strong solvent-weld or threaded connections
Long service life
up to 40–50 years under normal conditions
Low maintenance
no painting or anti-corrosion treatment needed
Cost-effective
lower installation and life-cycle cost
Non-toxic
safe for potable water supply
Non-conductive
Safe near electrical installations
UV-resistant (in stabilised grades)
suitable for outdoor use
Good pressure handling capacity
matches UPVC tee rating
Types & Connections of UPVC Tee
Equal UPVC Tee
- All three outlets are the same diameter.
- When we use it, the flow is split equally.
Reducing UPVC Tee
- One branch outlet is smaller or larger than the main line.
- Used to connect different sizes
Socket (Solvent Weld) UPVC Tee
- All ends have socket joints.
- Joined using solvent cement
Threaded UPVC Tee
- female or male threaded ends
- Easy to remove and replace
Socket × Threaded UPVC Tee
- A combination of socket and threaded ends
Plain UPVC Tee
- Plain ends are usually used with rubber rings or couplers.
- Less common than the socket type
90° UPVC Tee
- The branch is at a right angle to the main angle.
Inspection UPVC Tee
- Comes with a removable cap
- Allows cleaning and inspection
