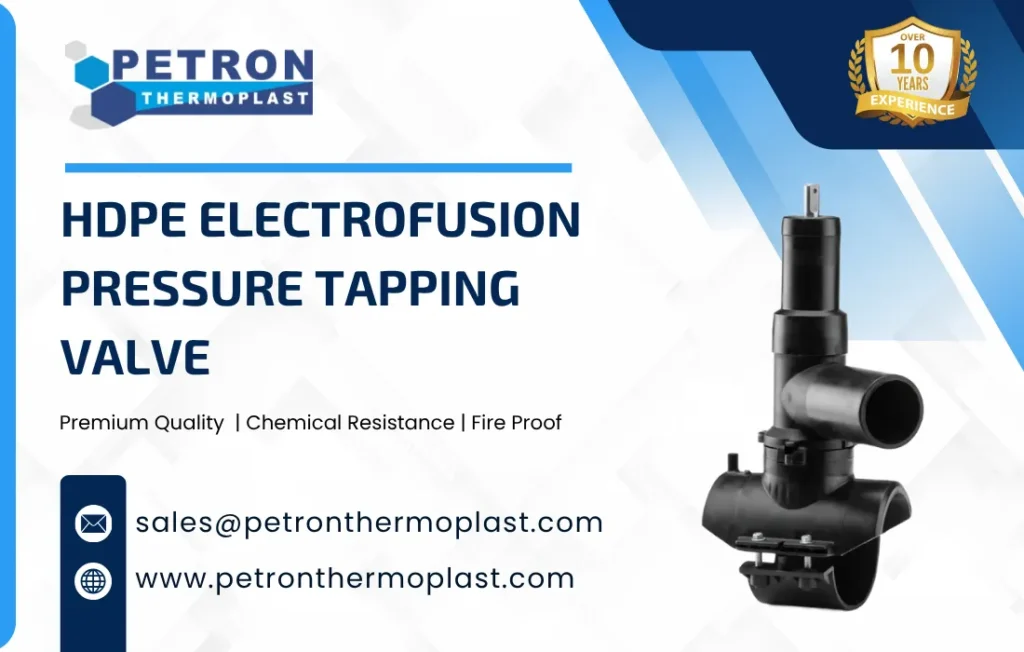

HDPE Electrofusion Pressure Tapping Valve
An HDPE Electrofusion Pressure Tapping Valve is a specialized pipeline fitting and valve assembly used to create a branch connection on a pressurized HDPE (High-Density Polyethylene) pipeline without stopping the flow. An HDPE electrofusion pressure tapping valve is a device made from PE material (usually PE100) that is electrofusion-welded onto an existing HDPE pipe, allowing operators to drill (tap) into the pipe under pressure.
The HDPE Electrofusion Pressure Tapping Valve is a high-performance component designed for tapping into pressurized HDPE pipelines without service interruption. It enables safe, efficient creation of branch connections while maintaining system integrity. Manufactured from robust PE100 material, this valve integrates electrofusion technology and a reliable shut-off mechanism, making it an ideal choice for water distribution, gas supply, and industrial fluid systems.
- Chemical Resistance
- Low Maintenance Requirement
- Low Thermal Conductivity
- Long Service Life
- Easy Installation
- Corrosion Resistance
HDPE Electrofusion Pressure Tapping Valve Details
*Technical Diagram
*Technical Data
| Parameter | Specification |
| Product Name | HDPE Electrofusion Pressure Tapping Valve |
| Material (Body) | High-Density Polyethylene (PE100 / PE100-RC) |
| Valve Material | Brass / Stainless Steel / PE components |
| Connection Type | Electrofusion (embedded heating coils) |
| Fusion Method | Electrical heating coil fusion (homogeneous joint) |
| Working Principle | Live tapping with integrated shut-off valve |
| Main Pipe Size Range | 63 mm to 315 mm |
| Outlet Size Range | 25 mm to 110 mm |
| Pressure Rating | PN10 / PN16 (10–16 bar) |
| SDR Rating | Typically SDR 11 |
| Temperature Range | -10°C to +60°C |
| Valve Type | Ball Valve / Gate Valve (Quarter-turn operation) |
| Seal Material | NBR / EPDM / FPM (Viton) |
| Fusion Voltage | Approx. 39.5 V ± 1.5 V |
| Installation Method | Electrofusion welding (live or non-live pipeline) |
| Standards | ISO 4427, ISO 4437, EN 12201, EN 1555 |
| Color | Black (UV stabilized) |
| MRS | 10 MPa |
| Chemical Resistance | Excellent resistance to acids, alkalis, and chemicals |
| Corrosion Resistance | 100% corrosion-free (non-metallic body) |
| Service Life | 50+ years (typical for HDPE systems) |
| Leakage Performance | Leak-proof due to fused joint |
| Applications | Water supply, gas pipelines, irrigation, chemical processing |
Live Tapping Functionality – Perform connections without depressurizing the main line
Secure Electrofusion Joint – Built-in heating coils provide a leak-proof seal
Integrated Shut-off Valve – Ensures precise control over flow during and after tapping
Minimal Flow Disruption – Maintains service continuity during installation
Durable PE100 Construction – High strength, chemical resistance, and longevity
Standards Compliant – Suitable for water, gas, and industrial fluid systems
| Service Type | Pressure Rating (PN) | Pressure (Bar) | Typical SDR | Remarks |
| Water Supply | PN16 | 16 bar | SDR 11 | Standard for water distribution systems |
| Gas Distribution | PN10 | 10 bar | SDR 11 | Lower pressure for safety in gas lines |
| Industrial Fluids | PN10 – PN16 | 10–16 bar | SDR 11 / SDR 17 | Depends on application and pipe class |
| General Range | PN10 / PN16 | 10–16 bar | SDR 11 (common) | Most widely used ratings |
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
Benefits of Using HDPE Electrofusion Pressure Tapping Valve
1. Live Tapping (No Shutdown Required)
- Allows branch connection on a pressurized pipeline
- No need to stop process flow → continuous operation
2. Leak-Proof Joint
- Electrofusion creates a homogeneous, permanent bond
- Eliminates weak joints and leakage risks
3. High Strength & Reliability
- Joint strength is equal to or stronger than the pipe itself
- Can withstand high pressure and stress
4. Integrated Valve Control
- Built-in valve allows:
- Controlled tapping
- Immediate shut-off after installation
5. Excellent Chemical & Corrosion Resistance
- Made from PE100 material
- Resistant to:
- Acids
- Alkalis
- Corrosive chemicals
6. Easy and Fast Installation
- Simple electrofusion process
- Requires less equipment and labor
7. Strong & Permanent Fusion Joint
- Embedded heating coils create uniform fusion
- No need for adhesives or mechanical fittings
8. Suitable for Harsh Environments
- Works well in:
- Underground pipelines
- Moist or chemical environments
- Confined spaces
9. Minimal Flow Disruption
- Installation causes little to no disturbance to fluid flow
10. Low Maintenance & Long Service Life
- No corrosion, no rust, no joint failure
- Service life 50+ years (typical HDPE systems)
Types of HDPE Electrofusion Pressure Tapping Valve
1. Saddle Type Tapping Valve
- Mounted on the outer surface of the pipe (saddle design)
- Most commonly used type
- Easy installation on existing pipelines
- Requires clamping and electrofusion welding
- Suitable for bypass, venting, and service connections
- Electrofusion tapping saddle
- Saddle tapping valve
2. Tee Type Tapping Valve
- Designed like a tee fitting with integrated valve
- Provides a permanent branch outlet
- Strong and stable connection
- Used for long-term pipeline modifications
- Water, gas, and industrial pipelines
3. Ball Type Electrofusion Tapping Valve
- Uses a ball valve mechanism (quarter-turn)
- Quick ON/OFF operation
- Low pressure drop
- Smooth flow control
- Chemical and water systems
4. Gate Type Electrofusion Tapping Valve
- Uses a gate (sliding) valve mechanism
- Full bore opening (no restriction)
- Suitable for large diameter pipelines
- High-flow industrial applications
5. Manual Operated Tapping Valve
- Operated using handwheel or lever
- Simple and cost-effective
- No external power required
- Standard pipeline systems
6. Actuated (Automatic) Tapping Valve
- Operated using electric or pneumatic actuators
- Remote control operation
- Suitable for automation (PLC/SCADA systems)
- Hazardous chemical plants and automated industries
7. Service Tapping Valve (Small Outlet Type)
- Designed for small branch connections
- Compact size
- Used for service lines and sampling
8. Heavy-Duty / Industrial Tapping Valve
- Designed for high pressure and large pipelines
- Reinforced structure
- High durability and chemical resistance
- Chemical plants, gas distribution systems
Applications of HDPE Electrofusion Pressure Tapping Valve
Process Industry
High Purity Applications
Electronic Industry
Electrical Industry
Semi-conductors Industry
Pharmaceutical Industry
Solar power panels
Sugar Industry
Paper & Pulp Industry
Nuclear Power Industry
Automotive Industry
DI water plants
