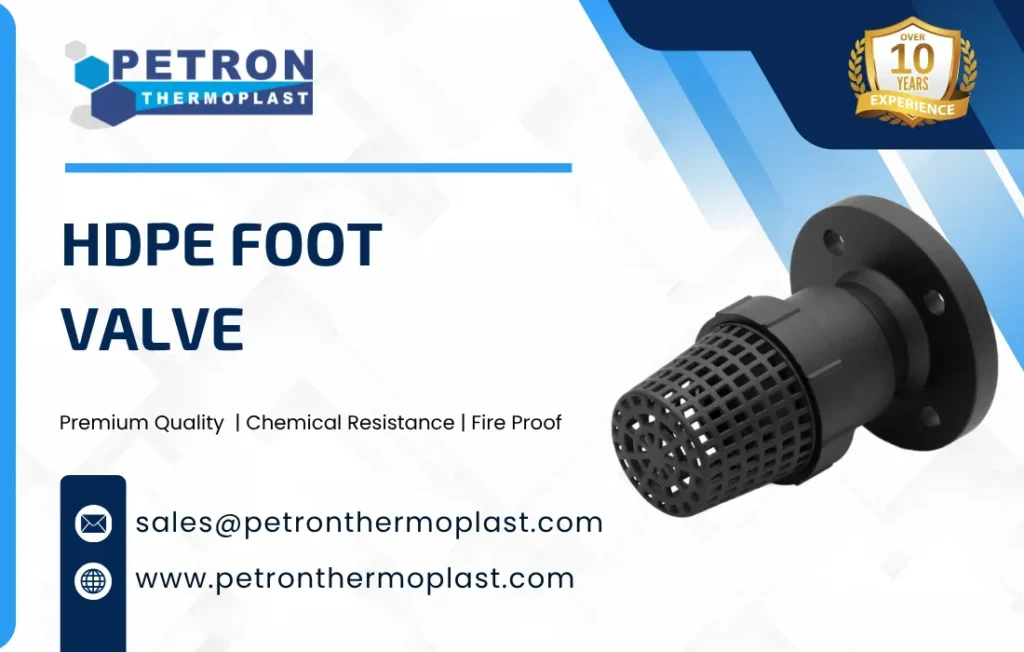

HDPE Foot Valve

The HDPE Foot Valve is a non-return valve installed at the suction end of pipelines to maintain the pump’s prime and prevent backflow. Manufactured from high-density polyethylene (HDPE), it is designed for long-term durability in water treatment, irrigation, and chemical processing systems. Equipped with a strainer at the bottom, the valve filters out debris, ensuring only clean fluid enters the pipeline or pump system.

An HDPE Foot Valve is a type of non-return (check) valve made from High-Density Polyethylene (HDPE) material, installed at the inlet (bottom end) of a suction pipe in pumping systems. Its primary function is to allow fluid to flow in one direction (into the pump) and prevent backflow, thereby maintaining the pump’s prime.

HDPE Foot Valve Details

*Technical Diagram

*Technical Data

Parameter	Details
Material (Body)	High-Density Polyethylene (HDPE)
Material Grade	PE 80 / PE 100
Valve Type	Non-return (Check) Foot Valve
Operation	Automatic / Passive (opens with flow, closes on backflow)
Size Range	25 mm to 200 mm
Pressure Rating	PN 10 / PN 16 (standard); options for PN 4–PN 16
Temperature Range	-10°C to +60°C
Connection Type	Flanged / Threaded / Socket Weld
Strainer Type	Built-in strainer (HDPE or Stainless Steel optional)
Flow Direction	One-way (towards pump only)
Density of Material	Approx. 0.94 – 0.96 g/cm³
Thermal Properties	Softening point around 60–70°C
Chemical Resistance	Excellent resistance to acids, alkalis, salts, and chemicals
Weight	Lightweight compared to metal valves
Service Life	50+ years (under normal conditions)
Applications	Water supply, irrigation, chemical processing, sewage systems
Standards	ISO 4427 / DIN 8074

Non-Return Functionality: Prevents reverse flow and keeps the pipeline primed.
Corrosion and Chemical Resistant: Ideal for aggressive environments including chemicals and saline water.
Integrated Strainer: Prevents debris and particles from entering the pump system.
Lightweight and Easy to Install: Simplifies installation and reduces load on pipeline supports.
Low Maintenance Design: Minimal moving parts ensure reliable, long-term performance.
UV and Weather Resistant: Suitable for outdoor and submerged installations.
High Flow Capacity: Optimized for minimal pressure drop and efficient fluid intake.

PN Rating	Maximum Working Pressure	Application Level
PN 4	4 bar	Low-pressure systems (irrigation)
PN 6	6 bar	Light-duty applications
PN 10	10 bar	Medium-pressure systems
PN 16	16 bar	High-pressure industrial use

If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.

Benefits of Using HDPE Foot Valve

Corrosion Resistance

HDPE material is highly resistant to chemicals, acids, and alkalis, making it ideal for harsh environments.

Lightweight

Much lighter than metal valves, which makes handling, transportation, and installation easier.

Durability & Long Life

Provides long service life (often 50+ years) with minimal wear and tear.

No Rusting or Scaling

Unlike metal valves, HDPE does not rust, corrode, or form scale, ensuring consistent performance.

Low Maintenance

Requires very little maintenance due to its simple design and non-corrosive nature.

Leak-Proof Performance

Offers tight sealing, preventing backflow and maintaining pump priming effectively.

Integrated Strainer Protection

Comes with a built-in strainer that prevents debris from entering the pump, reducing damage.

Chemical Compatibility

Suitable for a wide range of industrial and chemical applications.

Cost-Effective

Lower installation and maintenance costs compared to metal alternatives.

Smooth Flow Characteristics

HDPE has a smooth inner surface, resulting in low friction loss and better flow efficiency.

Types of HDPE Foot Valve

Simple Foot Valve (Standard Type)

Basic design with a non-return mechanism and strainer for general water applications.

Combination Foot Valve

Includes a valve + strainer + additional features (like anti-vortex design) for improved efficiency.

Compact Foot Valve

Smaller and lightweight design, suitable for limited space installations.

Ball Type Foot Valve

Uses a moving ball to control flow; ideal for dirty or slurry fluids.

Disc (Swing) Type Foot Valve

Uses a hinged disc that opens/closes with flow direction.

Spring-Loaded Foot Valve

Equipped with a spring for quick closing, preventing backflow more efficiently.

Flanged Type Foot Valve

Connected using flanges, suitable for large pipelines and industrial use.

Threaded Type Foot Valve

Uses screw threads, ideal for small-size pipelines.

Socket / Weld Type Foot Valve

Connected by butt fusion or socket welding, commonly used in HDPE piping systems.

HDPE Strainer Foot Valve

Fully plastic construction for corrosion resistance.

Strainer Foot Valve

Provides extra strength and durability in harsh conditions.

Applications of HDPE Foot Valve

Process Industry

High Purity Applications

Electronic Industry

Electrical Industry

Semi-conductors Industry

Pharmaceutical Industry

Solar power panels

Sugar Industry

Paper & Pulp Industry

Nuclear Power Industry

Automotive Industry

DI water plants

Why Choose Petron Thermoplast?

At Petron Thermoplast, Foot valves are indispensable for water storage and delivery systems, offering a cost-effective solution to ensure smooth, sustainable operations across various industries. For businesses in the mining, construction, and industrial sectors in Australia, Petron Thermoplast provides durable, heavy-duty foot valves and strainers designed for demanding environments.

Petron Thermoplast components are built with highly durable materials for reliable service. Petron Thermoplast packaged solutions are custom-designed and extensively tested to handle any challenge.

We build lasting, strong customer partnerships through consistent success, reliability, and trust. Petron Thermoplast job extends beyond delivery; we provide dedicated after-sales support to ensure your success and satisfaction.
