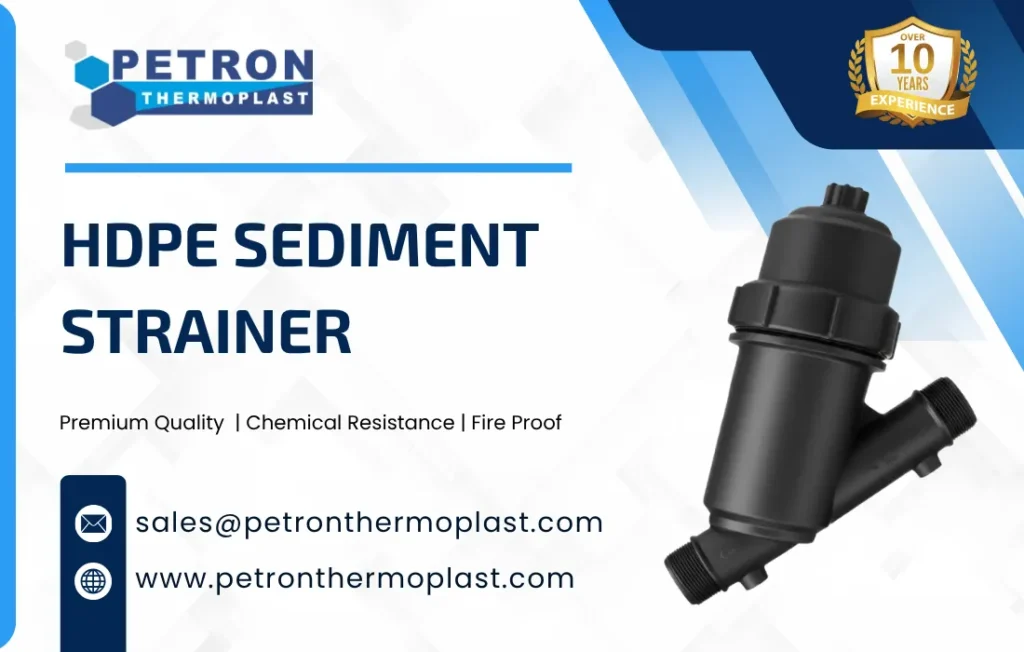

HDPE Sediment Strainer
An HDPE Sediment Strainer is a filtration device made from High-Density Polyethylene (HDPE) that is installed in pipelines to remove sediments, debris, and solid particles from fluids, protecting pumps, valves, and other equipment from damage.The HDPE Sediment Strainer is a durable, non-metallic filtration device designed to remove suspended solids, sediments, and debris from fluid systems. Manufactured from High-Density Polyethylene (HDPE), it is ideal for applications involving corrosive chemicals, wastewater, or abrasive media. Its rugged body and efficient internal straining mechanism help protect pumps, valves, and meters from clogging and wear.
HDPE sediment strainers are widely used in industries such as chemical processing, water treatment, mining, and where chemical resistance and long-term durability are essential. The strainer is easy to maintain and built for efficient solid removal with minimal pressure loss.
- Chemical Resistance
- Low Maintenance Requirement
- Low Thermal Conductivity
- Long Service Life
- Easy Installation
- Corrosion Resistance
HDPE Sediment Strainer Details
*Technical Diagram
*Technical Data
| Parameter | Details |
| Body Material | High-Density Polyethylene (HDPE) |
| Screen Material | HDPE / Stainless Steel (SS 304 / SS 316 optional) |
| Strainer Type | Sediment / Y-Type / Basket Type Strainer |
| Function | Removes sediments, dirt, and solid particles from fluid |
| Size Range | 25 mm (1”) to 200 mm (8”) or higher (customizable) |
| Pressure Rating | Up to 6 bar (typical for HDPE strainers at 20°C) |
| Temperature Range | -10°C to +60°C (standard HDPE operating range) |
| Filtration Rating | 50–200 microns or perforation 1–6 mm (depends on mesh) |
| Mesh Size Options | 20, 30, 40, 60 mesh (custom options available) |
| End Connections | Flanged (DIN/ANSI), Threaded, Butt Weld / Socket Weld |
| Flow Direction | Inline (horizontal/vertical depending on design) |
| Installation Type | Pipeline mounted (horizontal or vertical) |
| Design Features | Removable screen, large filtration area, low pressure drop |
| Density (HDPE) | Approx. 0.94 – 0.96 g/cm³ |
| Chemical Resistance | Excellent resistance to acids, alkalis, and corrosive fluids |
| Weight | Lightweight compared to metal strainers |
| Maintenance | Easy cleaning with removable or flushable screen |
| Standards | ISO 4427 / ASTM D3350 / DIN standards |
| Applications | Water treatment, chemical plants, irrigation, wastewater systems |
High Chemical Resistance: Performs reliably in systems handling acids, alkalis, and industrial chemicals.
Durable HDPE Construction: Offers excellent impact strength, corrosion resistance, and a long service life.
Effective Sediment Filtration: Designed to trap and remove fine to coarse particulates from fluid streams.
Removable Filter Element: Simplifies routine maintenance and screen cleaning or replacement.
Low Pressure Drop: Allows smooth and unrestricted fluid flow through the system.
Weather & UV Resistant: Suitable for outdoor and underground installations.
Non-Metallic & Lightweight: Easy to install and handle compared to traditional metal strainers.
| Type / Size | Pressure Rating |
| Small size (½” – 2”) | Up to 10 bar (≈150 psi) |
| Medium size (3” – 4”) | Up to 6 bar (≈85 psi) |
| General HDPE strainers | PN 6 to PN 10 (commonly used) |
| Industrial variants | Up to PN 16 (depending on design) |
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
Benefits of Using HDPE Sediment Strainer
Excellent Corrosion Resistance
HDPE material resists chemicals, acids, and alkalis, making it ideal for harsh environments.
Lightweight & Easy Handling
Much lighter than metal strainers, allowing easy installation and transportation.
Durability & Long Service Life
Provides long-lasting performance with minimal wear and degradation.
Efficient Filtration
Effectively removes sediment, dirt, and solid particles, protecting downstream equipment.
Low Maintenance
Features removable or cleanable screens, reducing maintenance effort and downtime.
No Rust or Scaling
Unlike metal strainers, HDPE does not rust, corrode, or form scale, ensuring consistent flow.0.
Smooth Flow with Low Pressure Loss
Smooth internal surfaces result in reduced friction and minimal pressure drop.
Cost-Effective
Lower installation, operation, and maintenance costs compared to metal alternatives.
Chemical Compatibility
Suitable for a wide range of industrial, water treatment, and chemical applications.
Leak-Proof & Reliable
Provides tight sealing and reliable operation in pipeline systems.
Types of HDPE Sediment Strainer
Y-Type Sediment Strainer
Installed in pipelines with a Y-shaped body, suitable for continuous filtration with low pressure drop.
Basket Type Sediment Strainer
Contains a large basket-shaped screen, ideal for high flow rates and heavy debris removal.
Inline (Straight) Sediment Strainer
Installed directly in the pipeline in a straight line, commonly used in compact systems.
Screen Type Strainer
Uses a perforated or mesh screen to trap larger particles and sediments.
Perforated Pipe (Suction) Strainer
Made from perforated HDPE pipe, widely used in pump suction and intake systems.
Simple (Single) Strainer
Basic design; requires manual cleaning after clogging.
Duplex Strainer
Has two chambers, allowing one to operate while the other is cleaned (continuous operation).
Suction Strainer
Installed at the pump inlet to prevent debris entry.
Pipeline Strainer
Installed within the pipeline to protect downstream equipment like valves and meters.
Applications of HDPE Sediment Strainer
Process Industry
High Purity Applications
Electronic Industry
Electrical Industry
Semi-conductors Industry
Pharmaceutical Industry
Solar power panels
Sugar Industry
Paper & Pulp Industry
Nuclear Power Industry
Automotive Industry
DI water plants
Why Choose Petron Thermoplast?
When it comes to industrial-grade piping systems, choice of the right manufacturer is as important as the material itself. Petron Thermoplast has earned a reputation as a trusted global leader in the field of HDPE Sediment Strainer and industrial flow solutions. Our products are known for precision, performance, and durability, designed to meet the most demanding industry standards across chemical, water treatment, and infrastructure sectors.
With so many options on the market, why should you trust Petron Thermoplast for your HDPE Sediment Strainer needs? The answer lies in our commitment to quality, service, and understanding your unique challenges.
We don’t just sell products—we engineer solutions. Our HDPE Sediment Strainer are manufactured using the highest quality raw materials and technology, ensuring consistent performance and compliance with global standards. Every batch undergoes rigorous testing for pressure resistance, temperature tolerance, and durability, so you can be confident that what you’re installing is built to last.
