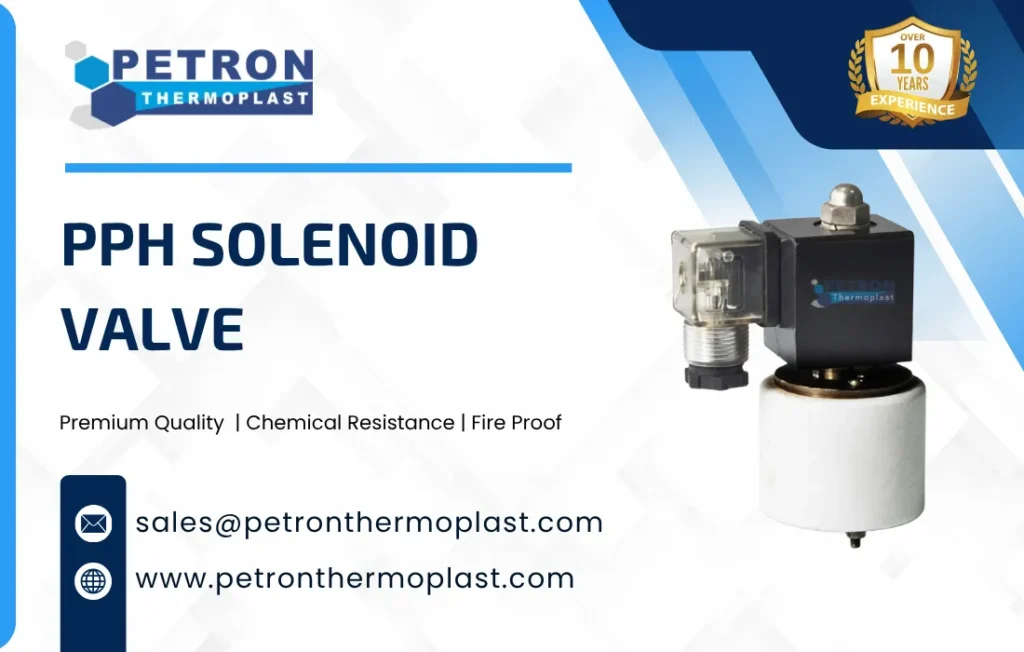

PPH Solenoid Valve
A PPH Solenoid Valve is an electrically operated valve made from Polypropylene Homopolymer (PPH) that is used to control the flow of liquids or gases automatically in a piping system. It works by using an electromagnetic solenoid coil, which opens or closes the valve when electrical power is applied.A PPH Solenoid Valve is an automatic valve that uses electricity to control fluid flow, especially suitable for corrosive and chemical environments.
A PPH Solenoid Valve installation flexibility and ease of maintenance is high-performance solenoid to electric actuator designed to exceed 5 million maintenance-free operating cycles and Adjustable circular section coil with IP65 protection class to integrate override with the possibility of being installed in 3 different positions.
- Chemical Resistance
- Low Maintenance Requirement
- Low Thermal Conductivity
- Long Service Life
- Easy Installation
- Corrosion Resistance
PPH Solenoid Valve Details
*Technical Drawing
*Technical Data
| Category | Parameter / Property | Specification / Value |
| Valve Configuration | Valve Type | Solenoid Operated (2/2 Way or 3/2 Way) |
| Operation | Electrically actuated (electromagnetic coil) | |
| Working Principle | Direct acting / Pilot operated diaphragm | |
| Orifice Size | Typically 10–25 mm | |
| Port Size / Connection | ½” to 2” (DN15–DN50 typical) | |
| Electrical Data | Coil Voltage Options | 12V DC, 24V DC, 24V AC, 110V AC, 230V AC |
| Power Consumption | Approx. 10–20 W | |
| Duty Cycle | Continuous (100% ED coil possible) | |
| Protection Class | IP65 / IP67 (coil enclosure) | |
| Operational Specs | Pressure Rating | Up to 6–10 bar (depending on design) |
| Working Pressure Range | Vacuum to ~6–8 bar | |
| Temperature Range | 0°C to +90°C (PPH limitation) | |
| Flow Direction | Uni-directional | |
| Response Time | Fast (milliseconds operation) | |
| Mounting Position | Horizontal or vertical | |
| Material & Build | Body Material | Polypropylene Homopolymer (PPH) |
| Seal Material | EPDM / FKM (Viton) / PTFE | |
| Connection Type | Threaded / Socket / Flanged | |
| Flow Media | Water, air, gases, acids, alkalis, chemicals | |
| PPH Properties | Density | ~0.90–0.91 g/cm³ (lightweight) |
| Chemical Resistance | Excellent (Acids, Alkalis, Corrosive fluids) | |
| Mechanical Strength | High rigidity and structural strength | |
| Corrosion Resistance | Non-corrosive and rust-free | |
| Surface Finish | Smooth internal surface for efficient flow | |
| Thermal Stability | Good dimensional stability at high temps | |
| UV Resistance | Good for outdoor applications |
• Electrically Operated (Automatic Control)
- Works using an electromagnetic solenoid coil
- Enables remote and automatic operation
- Easily integrated with PLC and control systems
• Fast Response Time
- Opens and closes in milliseconds
- Suitable for quick switching applications
• Excellent Chemical Resistance
- Made from PPH (Polypropylene Homopolymer)
- Resistant to acids, alkalis, and corrosive fluids
- Ideal for chemical and water treatment industries
• Corrosion-Free Construction
- Non-metallic body prevents rust and scaling
- Ensures long service life in harsh environments
• Compact & Lightweight Design
- Easy to install in tight spaces
- Lightweight compared to metal valves
• Leak-Tight Sealing
- Uses high-quality seals (EPDM, PTFE, Viton)
- Provides reliable shut-off with minimal leakage
• Low Power Consumption
- Typically consumes 10–20 watts
- Energy-efficient for continuous operation
• Wide Voltage Options
- Available in:
- AC (110V, 230V)
- DC (12V, 24V)
- Suitable for different electrical systems
• Versatile Flow Control Options
- Available in:
- 2/2 way, 3/2 way configurations
- Normally Closed (NC) / Normally Open (NO)
• Good Pressure & Temperature Capability
- Typically supports up to PN10 pressure rating
- Temperature range up to ~90°C
• Low Maintenance
- Simple design with few moving parts
- Easy servicing and long operational life
| Parameter | Typical Value |
| Nominal Pressure Rating | PN10 (10 bar) |
| Working Pressure Range | 0 to 6–8 bar |
| Maximum Pressure | Up to 10 bar |
| Minimum Operating Pressure | 0 bar (direct acting) / ~0.5 bar (pilot type) |
| Test Pressure | 1.5 × rated pressure (≈ 15 bar) |
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
Benefits of Using PPH Solenoid Valve
Automatic & Fast Operation
- Electrically operated for instant ON/OFF control
- Fast response time (milliseconds)
- Ideal for automated systems and PLC control
Excellent Chemical Resistance
- Made from PPH (Polypropylene Homopolymer)
- Resistant to acids, alkalis, and aggressive chemicals
- Suitable for chemical processing and dosing systems
Corrosion-Free Construction
- Non-metallic body prevents rust and scaling
- Ensures long service life in harsh environments
Lightweight & Compact Design
- Much lighter than metal valves
- Easy installation in tight or complex piping systems
Energy Efficient
- Low power consumption (typically 10–20 W)
- Reduces operating cost in continuous use
Leak-Tight Performance
- High-quality seals (EPDM/PTFE/Viton)
- Provides reliable shut-off with minimal leakage
Low Maintenance
- Simple design with fewer moving parts
- Requires minimal servicing and reduces downtime
Suitable for Remote & Automated Control
- Can be integrated with:
- PLC systems
- Control panels
- Timers and sensors
- Ideal for fully automated processes
Versatile Applications
- Used in:
- Water treatment plants
- Chemical industries
- Irrigation systems
- Dosing and control systemsq
Types of PPH Solenoid Valve
Direct Acting Solenoid Valve
- Operates without requiring system pressure
- Solenoid directly opens/closes the valve
- Suitable for low pressure or vacuum systems
Pilot Operated Solenoid Valve
- Uses system pressure to assist operation
- Suitable for high flow and higher pressure applications
- Requires minimum pressure to function
Semi-Direct Acting (Combined Type)
- Combination of direct and pilot operation
- Works at low pressure but handles higher flow
2/2 Way Solenoid Valve
- Two ports (inlet & outlet)
- Used for ON/OFF flow control (most common type)
3/2 Way Solenoid Valve
- Three ports and two positions
- Used for diverting or switching flow
- Common in pneumatic control systems
4/2 or 5/2 Way Solenoid Valve
- Multiple ports for directional control
- Used in actuator and cylinder operations
Normally Closed (NC)
- Valve remains closed when power is OFF
- Opens when energized
- Most widely used type
Normally Open (NO)
- Valve remains open when power is OFF
- Closes when energized
Universal Type
- Can function as both NO and NC depending on installation
On/Off (Isolation) Solenoid Valve
- Simple start/stop flow control
- Used in water, chemicals, and general fluids
Applications of PPH Solenoid Valve
Process Industry
High Purity Applications
Electronic Industry
Electrical Industry
Semi-conductors Industry
Pharmaceutical Industry
Solar power panels
Sugar Industry
Paper & Pulp Industry
Nuclear Power Industry
Automotive Industry
DI water plants
Why Choose Petron Thermoplast?
At Petron Thermoplast, our PPH Solenoid Valve is designed for reliability and performance
Durable Materials
PPH for corrosive or hygienic applications.
Precision Engineering
Tight sealing and accurate flow control.
Customizable Options
PPH, manual or actuated, with unions or flanges.
Easy Maintenance
Union connections for quick servicing.
API-Compliant
Meets industry standards for safety and quality.
