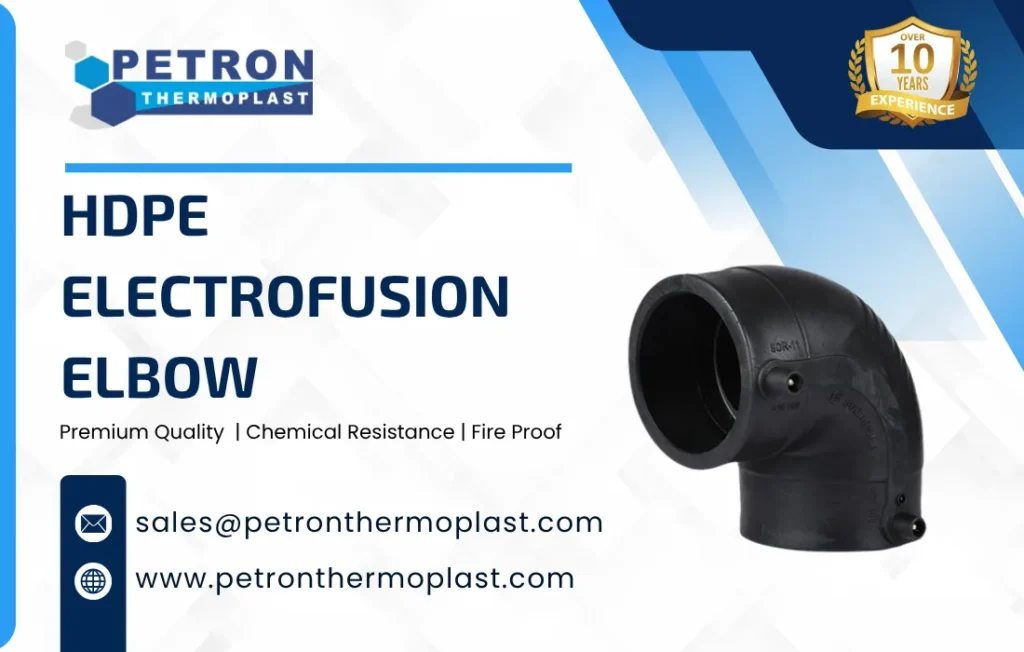

HDPE Electrofusion Elbow
The HDPE Electrofusion Elbow is a specially designed pipe fitting used to create angled turns (typically 90° or 45°) in high-density polyethylene (HDPE) piping systems. Utilizing electrofusion welding technology, it features built-in copper coils that heat during fusion to create a strong, leak-proof, and long-lasting joint. This elbow fitting is essential for changing the direction of HDPE pipelines without compromising flow performance or pressure resistance.
Manufactured from PE100 high-grade material, the elbow offers excellent resistance to chemicals, corrosion, and mechanical stress—making it ideal for demanding industrial and municipal applications.
Key Features of HDPE Electrofusion Elbow
Material: PE100 High-Density Polyethylene
Fusion Method: Electrofusion with built-in heating coils
Angles Available: 45° and 90° (custom angles on request)
Pressure Ratings: PN10 / PN16
Temperature Range: -10°C to +45°C
Corrosion and UV Resistant Standards: ISO 4427, ISO 4437, EN 12201, ASTM F1055
Leak-Proof Performance & Long-Term Reliability
Technical Information
| Parameter | Details |
|---|---|
|
Product Name |
HDPE Electrofusion Elbow |
|
Available Angles |
45°, 90° |
|
Material |
PE100 |
|
Size Range |
Size Range 20mm to 400mm (custom sizes on request) |
|
Connection Type |
Electrofusion |
|
Pressure Rating |
PN10 / PN16 |
|
Operating Temperature |
-10°C to +45°C |
|
Color |
Black |
|
Lifespan |
50+ years under standard conditions |
|
Standards Compliance |
ISO 4427, EN 12201, ISO 4437, ASTM F1055 |
HDPE PIPE FITTINGS
HDPE Electro Fusion Fittings
Electrofusion fittings are specialized HDPE components designed with embedded electric heating elements that, when energized, melt and fuse the fitting to the pipe surface. This technique provides a secure, leak-proof, and durable joint, making it ideal for high-pressure and critical pipeline applications. Electrofusion is especially preferred when working in confined spaces, where using large butt fusion equipment is impractical.
HDPE Butt Fusion Fittings
Butt fusion fittings are one of the most reliable and widely used types of HDPE pipe fittings. These fittings are joined using a butt fusion welding process, which involves heating the ends of both the pipe and the fitting to a precise temperature (typically around 200–220°C), then pressing them together under controlled pressure until they fuse into a single continuous piece. This results in a permanent, seamless, and high-integrity joint.
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
