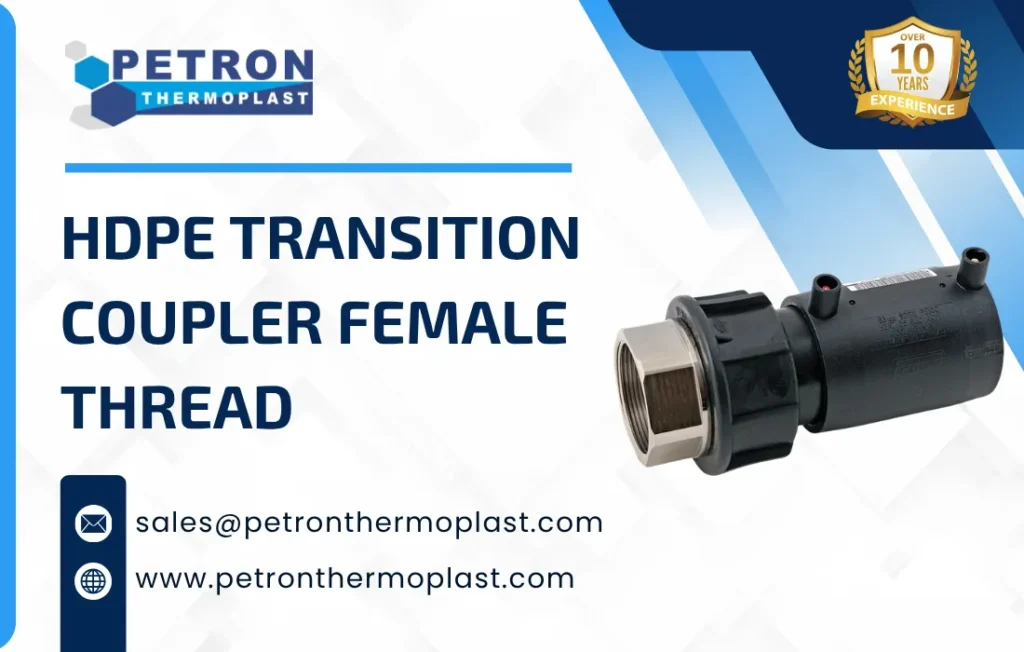

HDPE Transition Coupler Female Thread
An HDPE Transition Coupler (Female Thread) is a pipe fitting used to connect an HDPE pipe to another pipeline component that has a male threaded connection, combining electrofusion or compression joining on the HDPE side with a female threaded outlet on the other side. It is a connector that allows an HDPE pipe to be joined with a male threaded pipe or fitting, ensuring compatibility between different connection types.
The HDPE Electrofusion Transition Coupler (Female Thread) is engineered to connect HDPE piping systems to metal components with a female threaded interface. This fitting features a PE100 body compatible with electrofusion welding on one end, and a high-strength threaded metal insert on the other. It ensures a strong, leak-proof, and corrosion-resistant transition between plastic and metal piping networks, making it ideal for industrial, gas, and water applications.
- Chemical Resistance
- Low Maintenance Requirement
- Low Thermal Conductivity
- Long Service Life
- Easy Installation
- Corrosion Resistance
HDPE Transition Coupler Female Thread Details
*Technical Diagram
*Technical Data
| Parameter | Description |
| Material (HDPE Side) | High-Density Polyethylene (PE80 / PE100) |
| Threaded Insert Material | Brass, Stainless Steel, or Carbon Steel |
| Connection Type | Electrofusion / Compression (HDPE side) + Female Thread (BSP/NPT) |
| Thread Standard | BSP (British Standard Pipe) or NPT (National Pipe Thread) |
| Pressure Rating | PN10, PN12.5, PN16 (depending on SDR and design) |
| Temperature Range | -10°C to 45°C (installation), up to 60°C (operation) |
| Standards Compliance | ISO 4427, ISO 4437, EN 12201, ASTM standards |
| Fusion Voltage (if EF type) | Typically 39V |
| Fusion Time | 30–300 seconds (based on size) |
| Cooling Time | 5–20 minutes |
| Sealing Mechanism | Thread sealing with PTFE tape or sealant |
| Structure | Cylindrical body with one HDPE socket and one female threaded end |
| Size Range | Typically 20 mm to 110 mm (larger sizes available) |
| Color | Black (HDPE body) with metallic threaded insert |
| Weight | Lightweight compared to full metal fittings |
| Surface Finish | Smooth internal bore for efficient flow |
| Corrosion Resistance | Excellent (HDPE is non-corrosive) |
| Mechanical Strength | High tensile and impact strength |
| Leak Tightness | Leak-proof with proper fusion and thread sealing |
| Design Features | Anti-rotation metal insert, compact and robust design |
- Enables seamless transition between HDPE and metal threaded pipes
- Female threaded metal end for easy screw-type connection
- High-strength PE100 body ensures long service life
- Leak-proof and corrosion-resistant design
- Compatible with electrofusion welding techniques
- Ideal for gas, water supply, chemical, and industrial pipeline systems
| HDPE Material | SDR Value | Typical Pressure Rating |
| PE100 | SDR 11 | PN16 (16 bar) |
| PE100 | SDR 17 | PN10 (10 bar) |
| PE80 | SDR 11 | PN12.5 (12.5 bar) |
| PE80 | SDR 17 | PN8 (8 bar) |
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
Benefits of Using HDPE Transition Coupler Female Thread
1. Easy Connection with Threaded Components
- Female threads allow quick and direct connection to male threaded fittings, valves, and equipment
- No need for additional adapters
2. Leak-Proof Performance
- Provides a tight and secure joint when used with proper sealing (PTFE tape or sealant)
- Reduces risk of leakage in the system
3. Strong and Durable Joint
- Combines HDPE strength with metal threaded insert durability
- Withstands pressure, vibration, and mechanical stress
4. Corrosion Resistance
- HDPE body is resistant to corrosion and chemicals
- Suitable for water, chemical, and outdoor applications
5. Versatility
- Can be used in irrigation, gas distribution, and industrial piping systems
- Compatible with a wide range of threaded components
6. Easy Installation and Maintenance
- Simple to install using electrofusion or compression on one side and threading on the other
- Easy to dismantle and replace threaded connections if needed
7. Cost-Effective Solution
- Eliminates the need for multiple fittings
- Reduces installation time and labor costs
8. Compact Design
- Combines transition and connection in a single fitting
- Saves space in tight piping layouts
9. Long Service Life
- Designed to last 50 years or more under proper conditions
- Requires minimal maintenance
10. Suitable for Medium to High Pressure
- Can handle PN10 to PN16 pressure ratings depending on design and material
Types of HDPE Transition Coupler Female Thread
1. Electrofusion Female Thread Coupler
- HDPE side joined by electrofusion welding
- Female threaded metal insert on the other side
- Provides a strong, permanent, and leak-proof joint
- Common in gas and water distribution systems
2. Compression Female Thread Coupler
- Uses a compression fitting mechanism for HDPE connection
- Female threaded outlet for easy connection
- Suitable for quick installation and low to medium pressure systems
3. Brass Insert Female Thread Coupler
- Equipped with a brass threaded insert
- Offers good corrosion resistance and durability
- Widely used in water supply systems
4. Stainless Steel Insert Female Thread Coupler
- Uses stainless steel insert for higher strength
- Suitable for industrial and high-pressure applications
- Provides better resistance to corrosion and chemicals
5. Heavy-Duty / Reinforced Female Thread Coupler
- Designed with thicker HDPE body and stronger inserts
- Suitable for high-stress and heavy-duty environments
6. Long Spigot Female Thread Coupler
- Features extended HDPE spigot end
- Provides better grip and stronger fusion joint
- Used in critical installations
7. BSP Female Thread Coupler
- Female thread designed as BSP (British Standard Pipe)
- Commonly used in India and many international markets
8. NPT Female Thread Coupler
- Female thread designed as NPT (National Pipe Thread)
- Used in systems following American standards
9. Customized Female Thread Coupler
- Manufactured as per specific project requirements
- May include special coatings, sizes, or hybrid designs
Applications of HDPE Transition Coupler Female Thread
Process Industry
High Purity Applications
Electronic Industry
Electrical Industry
Semi-conductors Industry
Pharmaceutical Industry
Solar power panels
Sugar Industry
Paper & Pulp Industry
Nuclear Power Industry
Automotive Industry
DI water plants
