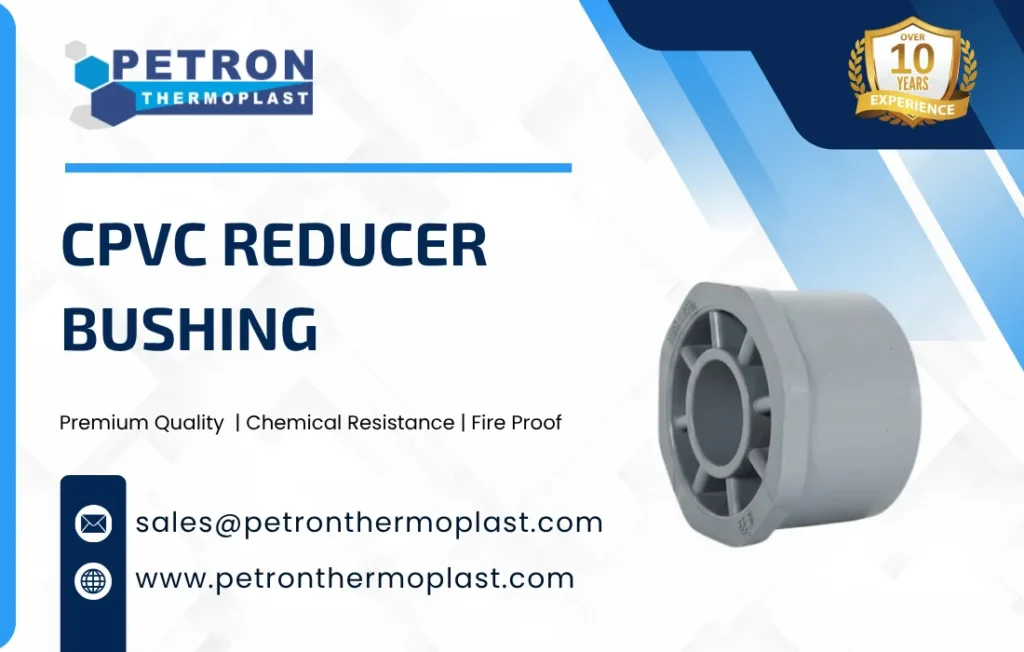

CPVC REDUCER BUSHING

CPVC reducer bushings are used to join metal pipes of different diameters by reducing the inner diameter of the pipe. PVC reducer bushing in steel and stainless steel with male and female NPT threaded ends are available from pressure connections and stainless hose and fittings (SHF).

Thread diameters for males range from 1/4″ to 4″, while female end threads range in size from 1/8″ to 3″. CPVC Reducer Bushings need to be in good shape, to reduce rapid tire wear and steering or braking problems.

Tees, straight adapters, elbows and other hydraulic fittings are available in steel, stainless steel and brass. A PVC reducer bushing is a zinc or brass component that is screwed into a port and then has a threaded hole, allowing for the example of 1-inch ports using a 3/4-inch fitting.

CPVC Pipes And Fittings

If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.

CPVC Reducer Bushing Technical Information

Reducing Bushing S X S

CBxxx/VBxxx

Size	mm			Weight (kg/pc)
Size	L	L1	S	PVC	CPVC
3/4″x1/2″	33	25	30	0.014	0.023
1″x1/2″	36	29	38	0.027	0.030
1″x3/4″	36	29	38	0.019	0.021
1-1/4″x1/2″	41	32	47	0.057	0.057
1-1/4″x3/4″	41	32	47	0.048	0.054
1-1/4″x1″	41	32	47	0.032	0.040
1-1/2″x1/2″	44	35	53	0.067	0.075
1-1/2″x3/4″	44	35	53	0.068	0.076
1-1/2″x1″	44	35	53	0.058	0.065
1-1/2″x1-1/4″	44	35	53	0.034	0.038
2″x1/2″	50	38	66	0.114	0.127
2″x3/4″	50	38	66	0.114	0.127
2″x1″	50	38	66	0.116	0.130
2″x1-1/4″	50	38	66	0.103	0.115
2″x1-1/2″	50	38	66	0.085	0.095
2-1/2″x1-1/2″	55	44	78	0.160	0.179
2-1/2″x2″	55	44	78	0.118	0.132
3″x1″	58	48	94	0.244	0.273
3″x1-1/2″	58	48	94	0.258	0.288
3″x2″	58	48	94	0.245	0.274
3″x2-1/2″	58	48	94	0.200	0.245
4″x1″	70	57	120	0.540	0.603
4″x1-1/4″	70	57	120	0.541	0.575
4″x1-1/2″	70	57	120	0.515	0.542
4″x2″	70	57	120	0.528	0.573
4″x2-1/2″	70	57	120	0.492	0.520
4″x3″	70	57	120	0.427	0.463
5″x4″	82	67	150	0.635	0.731
6″x3″	92	78	175	1.241	1.254
6″x4″	92	78	175	1.250	1.396
6″x5″	92	78	175	0.945	0.953
8″x4″	120	102	230	2.700	2.892
8″x6″	120	102	230	2.458	2.746
10″x6″	158	138	285	4.915	5.296
10″x8″	158	138	285	4.648	5.113
12″x6″	174	154	340	7.271	7.880
12″x8″	174	154	340	7.585	7.974
12″x10″	174	154	340	6.624	7.180
