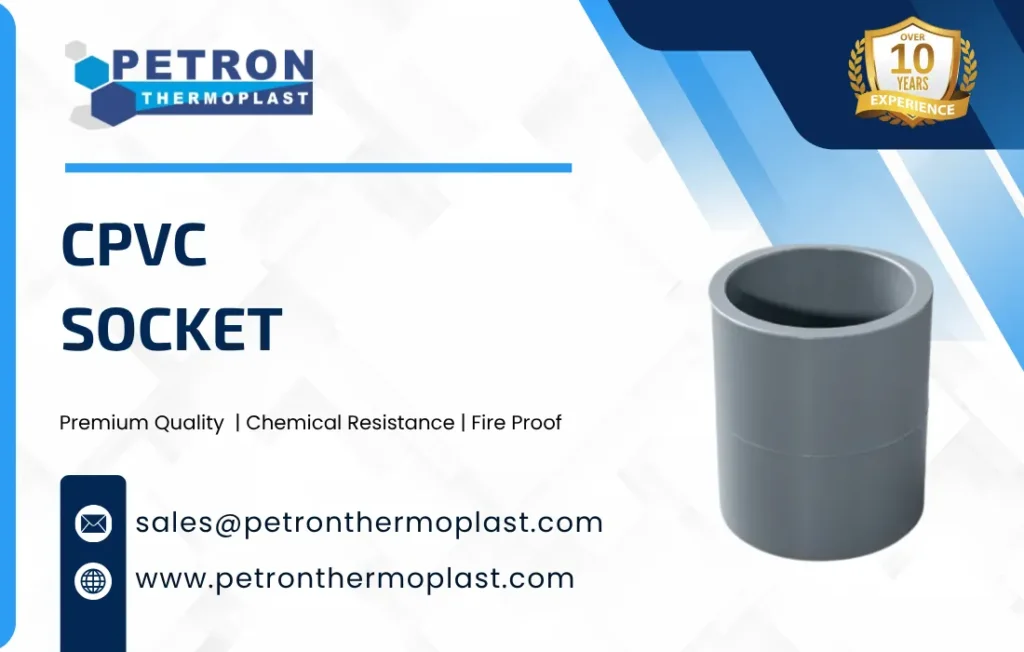

CPVC Socket

The CPVC Socket is a precision-molded pipe fitting used to connect two CPVC pipes of the same diameter in a straight line. It provides a secure, leak-proof joint through solvent welding, making it an essential component in CPVC piping systems for hot and cold water distribution and industrial fluid handling. Manufactured from high-quality Chlorinated Polyvinyl Chloride (CPVC), the socket offers exceptional thermal stability and chemical resistance, ensuring reliable performance in demanding applications.

A CPVC Socket is used to join two CPVC pipes of the same diameter in a straight line. It has socket ends on both sides, allowing pipes to be connected using solvent cement, which forms a strong and leak-proof joint. CPVC sockets are commonly used in hot and cold water systems, industrial piping, and chemical processing pipelines because CPVC material provides excellent corrosion resistance, chemical resistance, and high temperature durability.

CPVC Socket Details

ID: Inner Diameter
OD: Outer Diameter
WT: Wall Thickness
SL: Socket Length (Depth of the insertion point)
L: Total Length of the fitting

Size (Inch)	ID (mm)	OD (mm)	WT (mm)	SL (mm)	L (mm)
½	21.64	29.10	3.73	22.23	47
¾	26.97	34.79	3.91	25.40	54
1	33.78	42.88	4.55	28.58	60
1¼	42.55	52.25	4.85	31.75	67
1½	48.72	58.88	5.08	34.93	73
2	60.78	71.86	5.54	38.10	80
2½	73.56	87.58	7.01	44.45	96
3	89.50	113.74	7.62	47.63	102
4	114.99	132.11	8.56	57.15	121
6	153.88	168.10	7.11	77.25	160

Property	Description
Product Name	CPVC Socket
Material	Chlorinated Polyvinyl Chloride (CPVC)
Connection Type	Socket (Solvent Weld Joint)
Size Range	½” to 4” (15 mm to 110 mm)
Pressure Rating	SCH 40 / SCH 80 / PN10 / PN16
Temperature Range	Up to 93°C
Standards	ASTM D2846, ASTM F441, DIN, ISO
Color	Light grey / cream
Application	Water systems, chemical handling, HVAC
Density / Specific Gravity	1.45 – 1.58 g/cm³
Water Absorption	0.03 – 0.05%
Surface Finish	Smooth, non-porous
Appearance	Opaque, glossy
Odor	Odorless
Hardness (Rockwell)	~119
Thermal Conductivity	~0.14 W/m·K
Vicat Softening Temp	~100–105°C

High Temperature Tolerance: Suitable for applications up to 93°C (200°F), ideal for hot water and industrial fluids.
Chemical Resistance: Resistant to a wide range of corrosive chemicals, acids, and bases.
Strong and Durable: Rigid design ensures excellent mechanical strength and long-term performance.
Smooth Flow: Internal surfaces are smooth, minimizing pressure loss and buildup.
Solvent Weld Jointing: Simple installation with CPVC solvent cement ensures a secure and leak-free connection.
Corrosion-Free: Does not rust or scale, ensuring clean and safe fluid transfer.
Low Thermal Conductivity: Reduces heat loss in hot water systems.

Pipe Size (Inch)	Pipe Size (mm)	Max Pressure Rating (psi)	Max Pressure Rating (bar)	Temperature Limit
½”	15 mm	400 psi	27.6 bar	Up to 93°C
¾”	20 mm	400 psi	27.6 bar	Up to 93°C
1″	25 mm	370 psi	25.5 bar	Up to 93°C
1¼”	32 mm	320 psi	22.0 bar	Up to 93°C
1½”	40 mm	300 psi	20.7 bar	Up to 93°C
2″	50 mm	280 psi	19.3 bar	Up to 93°C
2½”	65 mm	230 psi	15.8 bar	Up to 93°C
3″	80 mm	200 psi	13.8 bar	Up to 93°C
4″	100 mm	180 psi	12.4 bar	Up to 93°C

If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.

Benefits of Using CPVC Socket

Easy Installation

CPVC sockets are simple to install using solvent cement, which creates a quick and secure joint between pipes.

Leak-Proof Connection

The solvent welding process forms a strong bond, ensuring tight and leak-free pipe connections.

High Temperature Resistance

CPVC sockets can handle hot water up to 93°C, making them suitable for hot and cold water systems.

Corrosion Resistance

They do not rust or corrode like metal fittings, which increases the lifespan of the piping system.

Chemical Resistance

CPVC sockets resist many acids, salts, and chemicals, making them useful in industrial applications.

Smooth Flow Characteristics

The smooth inner surface reduces friction and prevents scaling or deposits, ensuring efficient water flow.

Durability and Long Service Life

CPVC sockets are strong, durable, and can last for many years with minimal maintenance.

Lightweight Material

Being lightweight makes them easy to handle, transport, and install compared to metal fittings.

Cost-Effective

Lower installation and maintenance costs make CPVC sockets an economical choice for systems.

Safe for Drinking Water

CPVC material is suitable for potable water systems and does not affect water quality.

Applications of CPVC Socket

Process Industry

High Purity Applications

Electronic Industry

Electrical Industry

Semi-conductors Industry

Pharmaceutical Industry

Solar power panels

Sugar Industry

Paper & Pulp Industry

Nuclear Power Industry

Automotive Industry

DI water plants

Why Choose Petron Thermoplast?

There are many reasons to choose the CPVC Socket by Petron Thermoplast. CPVC Socket products are backed by a 100% satisfaction guarantee. We offer competitive prices and fast delivery times for CPVC Socket. We have a wide range of CPVC Socket products to meet your needs, from standard grades to custom alloys. Our team of experts is available to help you find the right product for your application. According to your requirement, for a specific size or thickness in CPVC Socket, contact our sales professionals, and they will provide you with precise sizes available in stock and confirm the delivery schedule to your nearest port.
