CPVC Venturi Injector

A CPVC Venturi Injector is a device made from Chlorinated Polyvinyl Chloride (CPVC) that uses the Venturi principle to draw and mix liquids or gases into a flowing water stream. It works by creating a pressure difference when water passes through a narrowed section of the injector, which allows chemicals, fertilisers, or other solutions to be sucked into the main pipeline.CPVC Venturi injectors are commonly used in irrigation systems, water treatment plants, chemical dosing systems, and industrial applications because CPVC material provides excellent corrosion resistance, durability, and high temperature tolerance.

The CPVC Venturi Injector is a precision-engineered device designed to inject or dose liquids and gases into a main fluid stream using the Venturi principle. This injector is ideal for use in high-temperature and corrosive fluid systems. It operates based on pressure differential, creating a vacuum that draws the secondary fluid into the primary flow without the need for additional mechanical components. This makes it highly suitable for chemical dosing, disinfection, fertigation, and water treatment applications.

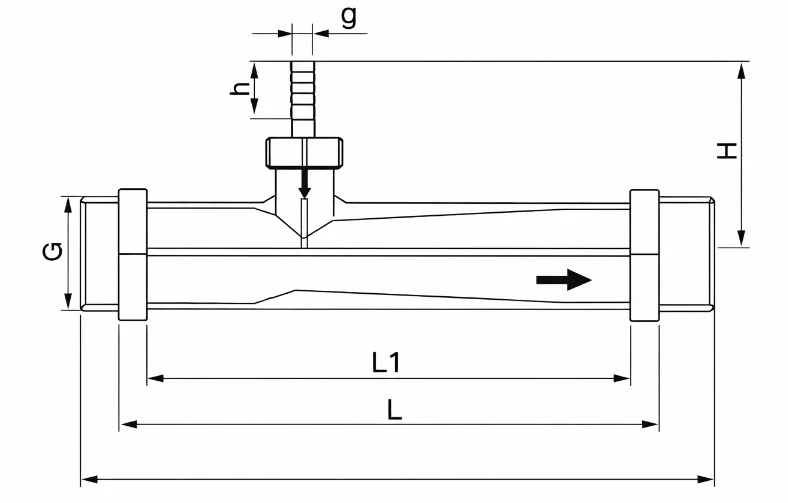

CPVC Venturi Injector Details

G: Nominal Thread Size (Gas thread/BSP).
L: Total Length of the component.
L1: Body Length or Internal Length.
h: Socket depth or specific offset height.
H: Total Height or handle clearance height.

G	L	L1	h	H
1/4”	113	88	16	43
1/2”	139	110	28	63
3/4”	157	111	28	63
1”	225	181	37	88
1-1/4”	230	185	37	88
1-1/2”	257	208	37	89
2”	295	228	40	70

Parameter / Property	Details / Value
Material	Chlorinated Polyvinyl Chloride (CPVC)
Size Range	½ inch to 2 inches (custom sizes available)
Operating Principle	Venturi effect (vacuum created by fluid flow through a constricted section)
Temperature Range	0°C to 100°C
Pressure Rating	Up to 10 kg/cm² at 23°C
Injection Port	Standard threaded or barbed inlet
Color	Light Grey / Beige or Light Yellow / Cream
Connection Type	Socket or threaded ends (BSP/NPT)
Standards Compliance	ASTM D2846 / ASTM F439 / IS 15778
Density	1.45 – 1.58 g/cm³
Tensile Strength	50 – 60 MPa
Flexural Strength	90 – 100 MPa
Impact Strength	High impact resistance
Hardness	Rockwell Hardness R110 – R120
Thermal Conductivity	0.14 W/m·K
Coeff. of Thermal Expansion	6.2 × 10⁻⁵ mm/mm/°C
Water Absorption	Less than 0.1%
Chemical Resistance	Excellent (Acids, Alkalis, Salts, Fertilizers)
Applications	Chemical dosing, water disinfection, fertigation, filtration, RO plants

Efficient Injection Mechanism: Utilizes the Venturi effect to mix secondary fluids into a primary stream without external energy sources.
High Chemical Resistance: Compatible with a wide range of acids, alkalis, and corrosive fluids, ideal for aggressive media.
Thermal Stability: Withstands high temperatures up to 93°C (200°F), suitable for hot water and chemical systems.
Durable CPVC Body: Rigid construction provides excellent mechanical strength and long service life.
Compact and Lightweight: Easy to install, transport, and integrate into existing systems.
Low Maintenance: Non-corrosive material minimizes fouling, scaling, and operational wear.
Consistent Performance: Delivers uniform dosing rates with minimal pressure drop.
Safe for Potable Use: Manufactured from non-toxic CPVC material in compliance with safety standards.

Pipe Size (Inch)	Pipe Size (mm)	Pressure Rating (psi)	Pressure Rating (bar)	Maximum Temperature
½”	15 mm	400 psi	27.6 bar	Up to 93°C
¾”	20 mm	400 psi	27.6 bar	Up to 93°C
1″	25 mm	370 psi	25.5 bar	Up to 93°C
1¼”	32 mm	320 psi	22.0 bar	Up to 93°C
1½”	40 mm	300 psi	20.7 bar	Up to 93°C
2″	50 mm	280 psi	19.3 bar	Up to 93°C
2½”	65 mm	230 psi	15.8 bar	Up to 93°C
3″	80 mm	200 psi	13.8 bar	Up to 93°C
4″	100 mm	180 psi	12.4 bar	Up to 93°C

If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
