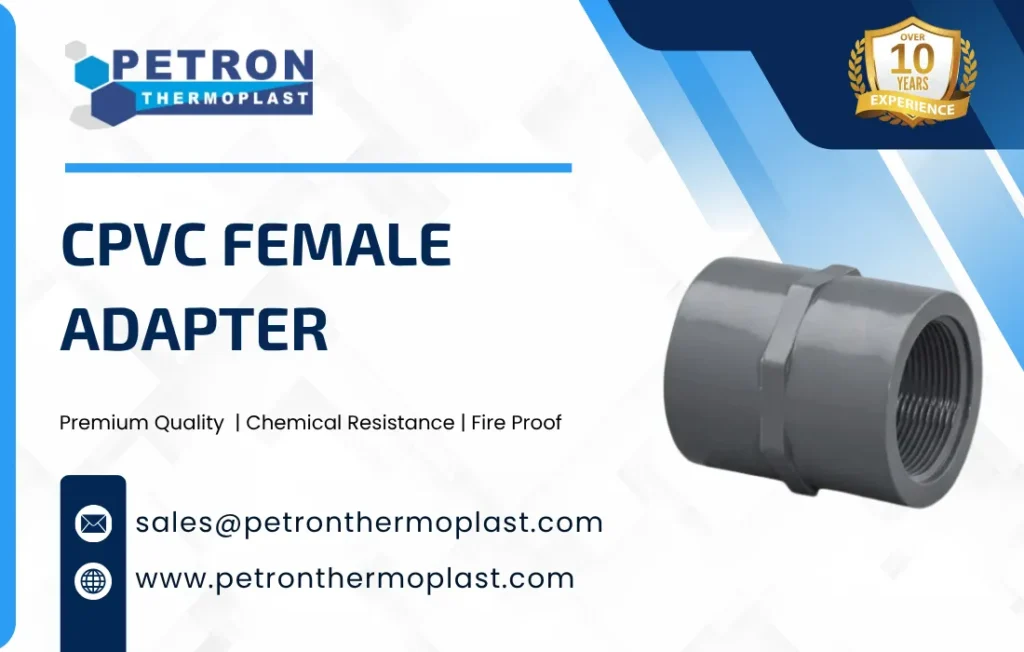

CPVC Female Adapter
A CPVC Female Adapter is a pipe fitting made from Chlorinated Polyvinyl Chloride (CPVC) that is used to connect a CPVC pipe to a male threaded pipe or fitting. One end of the adapter has a socket (slip) connection for solvent cement joining with a CPVC pipe, while the other end has female threads that allow it to connect to a male threaded component such as a valve, tap, or metal pipe. It is designed so that male connectors with exposed conductors can be comfortably inserted into it to ensure a solid physical and electrical connection.
A CPVC Female Adapter Manufacturer is a plug attached to a wire, cable, or piece of hardware and has one or more blank holes inside, which are electrical terminals. It is commonly used in industrial piping and water supply systems where a transition from a CPVC pipe to a threaded connection is required. CPVC Female Adapters are known for their corrosion resistance, high temperature tolerance, and durability, making them suitable for both hot and cold water applications.
- Chemical Resistance
- Low Maintenance Requirement
- Low Thermal Conductivity
- Long Service Life
- Easy Installation
- Corrosion Resistance
CPVC Female Adapter Details
ID: Inside Diameter
OD: Outside Diameter
WT: Wall Thickness
SL: Socket Length
L: Length
H: Height
| SIZE (Inch) | ID (mm) | OD (mm) | WT (mm) | SL (mm) | L (mm) | H (mm) |
| ½ | 21.64 | 29.1 | 3.73 | 22.23 | 29 | 40 |
| ¾ | 26.97 | 34.79 | 3.91 | 25.4 | 35 | 46 |
| 1 | 33.78 | 42.88 | 4.55 | 28.58 | 43 | 55 |
| 1¼ | 42.55 | 52.25 | 4.85 | 31.75 | 53 | 59 |
| 1½ | 48.72 | 58.88 | 5.08 | 34.93 | 60 | 67 |
| 2 | 60.78 | 71.86 | 5.54 | 38.1 | 72 | 71 |
| 2½ | 73.56 | 87.58 | 7.01 | 44.45 | 87 | 77 |
| 3 | 89.5 | 104.74 | 7.62 | 47.63 | 104 | 87 |
| 4 | 114.99 | 132.11 | 8.56 | 57.15 | 128 | 105 |
| Property | Details |
| Product Type | Female Adapter (Socket × Female Thread) |
| Function | Connects CPVC pipe to threaded fittings (metal/plastic) |
| Material | CPVC (Chlorinated Polyvinyl Chloride) |
| Connection Type | Socket (Solvent Weld) × Female Thread (FNPT/BSP) |
| Size Range | ½” to 4” |
| Pressure Rating | Up to PN15 (~15 bar at 25°C) |
| Temperature Range | Up to 93°C continuous service |
| Schedule | SCH 40 / SCH 80 / SDR 11 |
| Thread Type | Female threaded (plastic or brass insert optional) |
| Manufacturing Process | Injection molded |
| Standards | ASTM D2846, ASTM F439, ASTM F437, NSF 14/61 |
| Color | Grey / Off-white / Cream |
| Joint Type | Solvent cement + threaded joint |
| Application | Industrial piping, tanks, valves connection |
| Density | ~1.50 – 1.60 g/cm³ |
| Tensile Strength | ~50 – 60 MPa |
| Flexural Strength | ~90 – 110 MPa |
| Modulus of Elasticity | ~2400 – 3000 MPa |
| Impact Strength | Moderate to high |
| Hardness | ~80 – 85 Shore D |
| Water Absorption | ≤ 0.04% |
| Heat Deflection Temperature | ~90 – 105°C |
| Thermal Conductivity | Low (good insulation) |
| Weight | Lightweight (varies by size) |
- High Temperature Resistance
CPVC Female Adapters can handle high temperatures, making them suitable for both hot and cold water piping systems. - Corrosion and Rust Resistance
The CPVC material does not rust or corrode, ensuring long-term reliability in industrial applications. - Excellent Chemical Resistance
These adapters are resistant to many acids, bases, and salts, making them suitable for chemical processing systems. - Strong Threaded Connection
The female threaded end allows a secure connection with male threaded fittings, reducing the risk of leakage. - Lightweight Material
CPVC Female Adapters are lightweight, which makes them easy to handle, transport, and install. - Smooth Internal Surface
The smooth interior reduces friction loss and scaling, ensuring efficient fluid flow. - Easy Installation
The socket end can be easily joined with CPVC pipes using solvent cement, allowing quick and reliable installation. - Durable and Long Service Life
CPVC material provides high strength and durability, ensuring a long operational life. - Low Maintenance
Due to its corrosion resistance and durability, the adapter requires minimal maintenance over time.
| Temperature | Maximum Pressure Rating* |
| 23°C (73°F) | Up to 150 – 300 psi |
| 49°C (120°F) | Up to 100 – 210 psi |
| 60°C (140°F) | Up to 80 – 160 psi |
| 82°C (180°F) | Up to 50 – 100 psi |
| 93°C (200°F) | Up to 25 – 60 psi |
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
Benefits of Using CPVC Female Adapter
Corrosion Resistance
A CPVC Female Adapter is highly resistant to corrosion, rust, and chemical reactions, making it suitable for water supply and chemical piping systems.
High Temperature Resistance
CPVC material can withstand higher temperatures compared to standard PVC, making the adapter ideal for hot and cold water applications.
Strong and Durable
The adapter has high mechanical strength and durability, ensuring a long service life in industrial piping systems.
Leak-Proof Connection
It provides a secure threaded connection between CPVC pipes and metal or threaded fittings, reducing the chances of leakage.
Easy Installation
CPVC Female Adapters are lightweight and easy to install using solvent cement and threaded joints, saving installation time and labor.
Low Maintenance
Due to its corrosion resistance and durability, it requires minimal maintenance during its service life.
Chemical Resistance
CPVC can handle many acids, bases, and salts, making the adapter suitable for industrial and chemical processing applications.
Cost-Effective
Compared to metal fittings, CPVC Female Adapters are generally more economical while providing reliable performance.
Types of CPVC Female Adapter
Plain Female Adapter (Socket × Female Thread)
This type has a socket end for solvent cement connection with a CPVC pipe and a female threaded end to connect with male threaded fittings or valves.
Brass Insert Female Adapter
This adapter contains a brass threaded insert inside the CPVC body. It provides stronger threads and is commonly used where higher strength and durability are required.
Heavy Duty Female Adapter
Designed with thicker walls for high-pressure and industrial piping systems. It offers improved strength and durability.
Reducing Female Adapter
This type is used to connect pipes of different sizes, where the socket side and threaded side have different diameters.
Threaded Female Adapter
Both ends contain threaded connections and are used where threaded fittings are required on both sides.
Industrial CPVC Female Adapter
Specially designed for chemical processing, industrial pipelines, and high-temperature applications where higher chemical resistance is required.
Applications of CPVC Female Adapter
Process Industry
High Purity Applications
Electronic Industry
Electrical Industry
Semi-conductors Industry
Pharmaceutical Industry
Solar power panels
Sugar Industry
Paper & Pulp Industry
Nuclear Power Industry
Automotive Industry
DI water plants
Why Choose Petron Thermoplast?
In the field of Oil, gas, water fluid, and chemical injection technology, Petron Thermoplast Company played a leading role, known for innovation and reliability. Petron Thermoplast has engineered high performance CPVC Female Adapter that maximizes mixing efficiency and durability. Our design is patented to ensure consistent performance across a wide range of flow rates and pressures.
Petron Thermoplast CPVC Female Adapters are particularly favored in chemical treatment applications due to their precision, long service life, and compatibility with corrosive water.
Suitable for Industrial & Utility Applications
Our CPVC Female Adapters are widely used in Oil, gas treatment plants, effluent systems, cooling water lines, chemical handling (mild chemicals), and industrial utilities.
Export Grade Quality & Standards Compliance
All CPVC Female Adapters are manufactured under strict quality control and comply with international standards, making them suitable for domestic and global projects.
