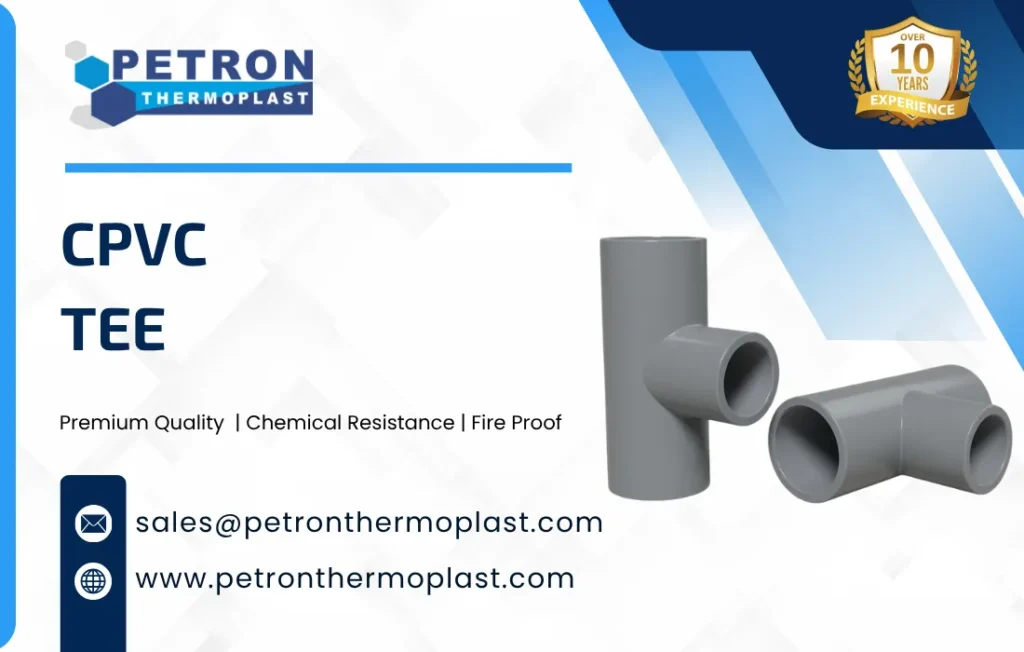

CPVC TEE

CPVC Tee Manufacturer fit at three ends: two in a straight line and one at a 90-degree angle. Tees are used to divide a line into two independent lines joined at a 90 degree angle. CPVC tee can also be used to connect two lines together to form a mainline. They are also often used in the construction of PVC buildings. Tees are a type of fitting that are incredibly adaptable and are one of the most widely used parts. Most CPVC tees have slide socket ends; However, there are also threaded versions.

A CPVC Tee is a pipe fitting that is used to connect three CPVC pipes in a T-shaped configuration. It allows the main pipeline to branch off into another direction at a 90-degree angle.CPVC tees are commonly used in hot and cold water systems, industrial piping, and chemical distribution lines to divide or combine the flow of liquids while maintaining a strong and leak-proof connection through solvent cement joints.These tees are used to join two lines together to form a mainline. They are also often employed in the manufacture of CPVC constructions. Tees are incredibly adaptable fittings because they are one of the most commonly used parts in the chemical industry.

CPVC TEE Details

ID-1 – Larger Inner Diameter
ID-2 – Smaller Inner Diameter
SL – Socket Length
L – Length
H – Height

Size (Inch)	ID (mm)	OD (mm)	WT (mm)	SL (mm)	L (mm)	H (mm)
½	21.64	29.10	3.73	22.23	50	72
¾	26.97	34.79	3.91	25.40	57	79
1	33.78	42.88	4.55	28.58	67	93
1¼	42.55	52.25	4.85	31.75	80	108
1½	48.72	58.88	5.08	34.93	94	121
2	60.78	71.86	5.54	38.10	107	138
2½	73.56	87.58	7.01	44.45	130	174
3	89.50	113.74	7.62	47.63	140	200
4	114.99	132.11	8.56	57.15	188	245
6	153.88	168.10	7.11	77.25	250	330

Parameter	Technical Details / Value
Product Name	CPVC Tee
Material	Chlorinated Polyvinyl Chloride (CPVC)
Shape	T-Shaped Pipe Fitting
Connection Type	Socket / Slip Joint
Size Range	½ inch to 4 inch (15 mm to 100 mm)
Joining Method	Solvent Cement Welding
Temperature Resistance	0 to 100°C
Pressure Compatibility	Suitable for SDR-11 / Schedule 40 CPVC piping systems
Color	Light Yellow / Cream
Standards	ASTM D2846, ASTM F439
Chemical Resistance	Excellent resistance to acids, alkalis (bases), and salts
Application	Hot & cold water industrial piping, chemical handling systems
Installation Method	Pipes inserted into socket ends with CPVC solvent cement
Density	1.45 – 1.58 g/cm³
Tensile Strength	50 – 60 MPa
Flexural Strength	90 – 100 MPa
Impact Strength	High impact resistance
Hardness	Rockwell Hardness R110 – R120
Thermal Conductivity	0.14 W/m·K
Coefficient of Thermal Expansion	6.2 × 10⁻⁵ mm/mm/°C
Water Absorption	Less than 0.1%

T-Shaped Design
CPVC tees have a T-shaped structure that allows the pipeline to branch off at a 90° angle.
High Temperature Resistance
They can withstand temperatures up to 93°C (200°F), making them suitable for hot and cold water systems.
Corrosion Resistant
CPVC material is highly resistant to rust, corrosion, and scaling.
Chemical Resistance
CPVC tees can handle many chemicals such as acids, salts, and alkalis, making them suitable for industrial applications.
Leak-Proof Joint
When connected using solvent cement, they form a strong and reliable leak-free bond.
Smooth Internal Surface
The smooth inner wall reduces friction and helps maintain efficient fluid flow.
Lightweight Construction
CPVC tees are lightweight compared to metal fittings, making handling and installation easier.
Durable and Strong
They have good mechanical strength and provide long-term performance.
Low Maintenance
Because of their corrosion and chemical resistance, they require minimal maintenance.
Wide Size Availability
CPVC tees are available in various sizes to fit different piping system requirements.

Pipe Size (Inch)	Pipe Size (mm)	Pressure Rating (psi)	Pressure Rating (bar)	Maximum Temperature
½”	15 mm	400 psi	27.6 bar	Up to 93°C
¾”	20 mm	400 psi	27.6 bar	Up to 93°C
1″	25 mm	370 psi	25.5 bar	Up to 93°C
1¼”	32 mm	320 psi	22.0 bar	Up to 93°C
1½”	40 mm	300 psi	20.7 bar	Up to 93°C
2″	50 mm	280 psi	19.3 bar	Up to 93°C
2½”	65 mm	230 psi	15.8 bar	Up to 93°C
3″	80 mm	200 psi	13.8 bar	Up to 93°C
4″	100 mm	180 psi	12.4 bar	Up to 93°C

If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.

Benefits of Using CPVC TEE

Efficient Flow Distribution

A CPVC tee allows the pipeline to split the flow into two directions, making it ideal for branch connections.

Corrosion Resistance

CPVC material does not rust or corrode like metal fittings, ensuring a longer service life.

High Temperature Resistance

CPVC tees can handle temperatures up to 93°C, making them suitable for hot and cold water systems.

Leak-Proof Joint

When installed with CPVC solvent cement, it forms a strong and leak-free connection.

Chemical Resistance

CPVC tees are resistant to many chemicals such as acids, salts, and alkalis, making them suitable for industrial applications.

Lightweight Material

They are lighter than metal fittings, making transportation and installation easier.

Smooth Inner Surface

The smooth internal surface reduces friction, preventing scaling and improving fluid flow.

Easy Installation

CPVC tees can be quickly installed using solvent cement without requiring complex tools.

Low Maintenance

Due to their durability and corrosion resistance, they require minimal maintenance.

Long Service Life

CPVC tees are strong and durable, providing reliable performance for many years in industrial piping systems.

Types of CPVC TEE

Equal CPVC Tee

This is the most common type where all three openings are of the same size, allowing equal flow distribution in the piping system.

Reducing CPVC Tee

In this type, the branch outlet is smaller than the main pipe, allowing connection of pipes with different diameters.

Threaded CPVC Tee

This tee has threaded ends that allow connection with threaded pipes or fittings for easy installation and removal.

Socket (Slip) CPVC Tee

This type has socket ends where pipes are inserted and joined using CPVC solvent cement for a permanent and leak-proof connection.

Female Threaded Branch CPVC Tee

In this type, the branch outlet has internal threads, while the other ends may be socket type, allowing connection with threaded components like valves or adapters.

Applications of CPVC TEE

Process Industry

High Purity Applications

Electronic Industry

Electrical Industry

Semi-conductors Industry

Pharmaceutical Industry

Solar power panels

Sugar Industry

Paper & Pulp Industry

Nuclear Power Industry

Automotive Industry

DI water plants

Why Choose Petron Thermoplast?

At Petron Thermoplast, our CPVC Tee is designed for reliability and performance Durable Materials: CPVC for corrosive or hygienic applications. Precision Engineering: Tight sealing and accurate flow control. Customizable Options: manual or actuated, with unions or flanges. Easy Maintenance: Union connections for quick servicing. API-Compliant: Meets industry standards for safety and quality.
