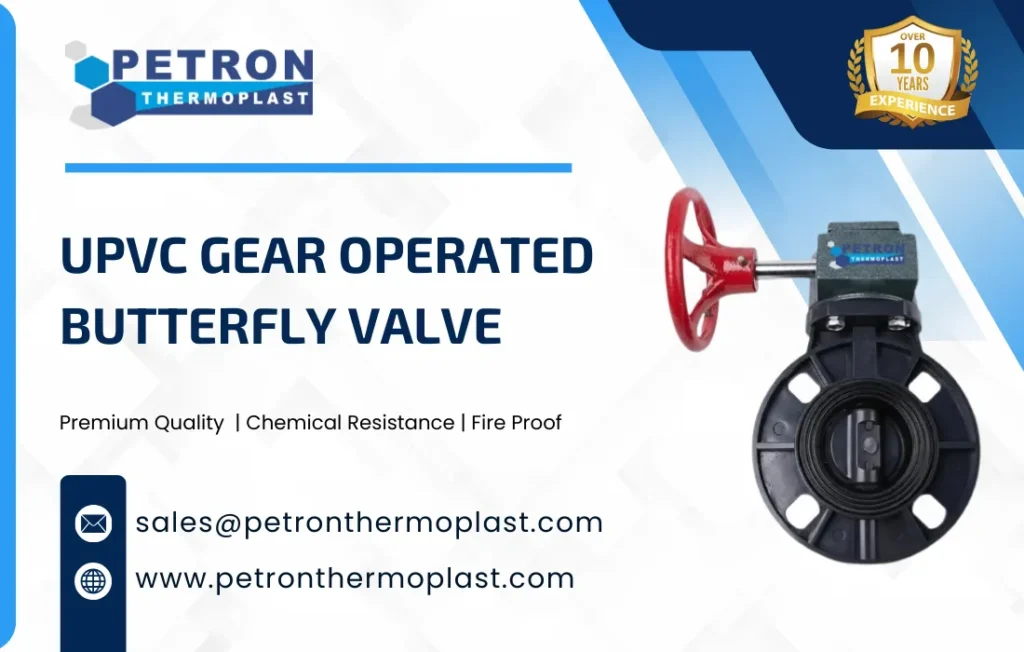

UPVC Gear Operated Butterfly Valve
The UPVC Gear Operated Butterfly Valve is a robust and efficient flow control solution, engineered for demanding fluid handling systems. Made from Unplasticized Polyvinyl Chloride (UPVC), this valve offers outstanding chemical and corrosion resistance, making it ideal for aggressive fluid media and corrosive environments. The integrated gear operator provides smooth and precise control of the valve position, allowing for effortless operation even under high pressure conditions. Its wafer-style body design enables easy installation between standard flanges, making it suitable for industrial, water treatment, and chemical process applications.
Key Features of UPVC Gear Operated Butterfly Valve
Gear Operated Control: Manual gearbox ensures precise and smooth valve operation with minimal effort.
Corrosion-Resistant Material: UPVC construction offers excellent resistance to chemicals and aggressive fluids.
Compact Wafer Design: Saves space and simplifies installation between flanges.
Quarter-Turn Operation: Provides quick shut-off or throttling with a 90° handle turn via gear mechanism.
Leak-Proof Sealing: High-performance elastomer liners ensure reliable sealing.
Durable & Low Maintenance: Long service life with minimal wear and maintenance requirements.
Position Indicator: Gear unit includes a visual indicator for valve position monitoring.
Technical Information
| Parameter | Details |
|---|---|
|
Body Material |
UPVC (Unplasticized Polyvinyl Chloride) |
|
Disc Material |
UPVC |
|
Liner Material |
EPDM / FKM (Viton) |
|
Gearbox Material |
Cast Iron / Powder-Coated Steel / PP (varies) |
|
End Connection |
Wafer type (fits between DIN, ANSI, JIS flanges) |
|
Operation Type |
Manual Gear Operated |
|
Pressure Rating |
PN10 (10 bar / 150 psi) |
|
Temperature Range |
0°C to 60°C (32°F to 140°F) |
|
Size Range |
2” to 12” (50 mm to 315 mm) |
|
Standard Compliance |
ISO 5211, DIN, ANSI, JIS Standards |
|
Applications |
Water treatment, chemical processing, industrial piping systems, irrigation systems, and wastewater management |
UPVC Valves Range
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
