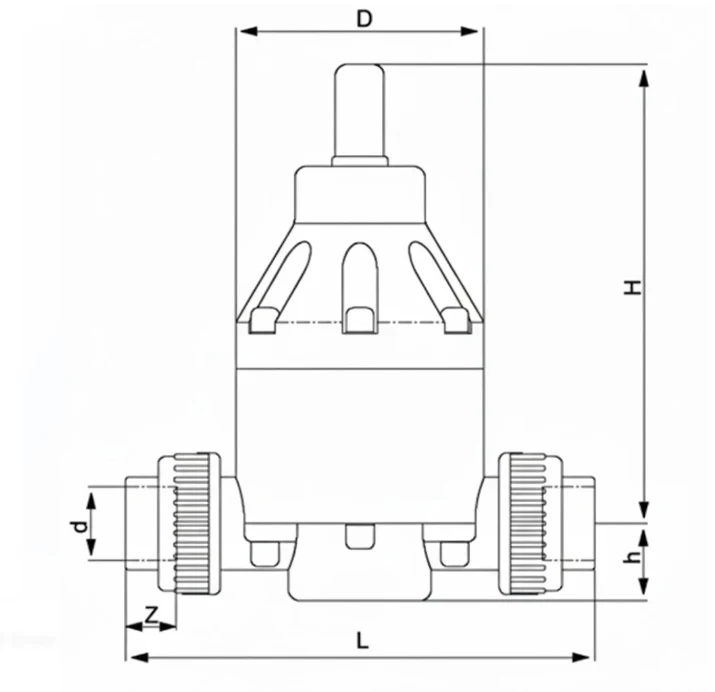

UPVC Pressure Reducing Valve
The UPVC Pressure Reducing Valve is a precision-engineered device designed to regulate and maintain downstream pressure in fluid systems regardless of fluctuating upstream pressure. Constructed from Unplasticized Polyvinyl Chloride (UPVC), this valve offers outstanding chemical resistance and is ideal for corrosive or aggressive media. It ensures safe, consistent flow by automatically adjusting pressure, making it suitable for water treatment, irrigation, and chemical processing systems.
Key Features of UPVC Pressure Reducing Valve
Automatic Pressure Regulation: Maintains constant downstream pressure despite input fluctuations.
Corrosion-Resistant Body: UPVC construction ensures durability in aggressive chemical environments.
Adjustable Set Pressure: Customizable output pressure range using external adjustment screw.
Non-Metallic Internals: Prevents corrosion and minimizes maintenance.
Compact & Lightweight: Easy to install and suitable for space-restricted setups.
Reliable Sealing: High-performance diaphragm and seals prevent leakage and ensure accurate control.
Low Maintenance: Designed for long service life with minimal servicing requirements.
Technical Information
| Parameter | Details |
|---|---|
|
Body Material |
UPVC (Unplasticized Polyvinyl Chloride) |
|
Diaphragm Material |
EPDM / FKM (Viton) |
|
Seal Material |
EPDM / FKM (Viton) |
|
End Connections |
Socket / Threaded / Flanged (DIN / ANSI / JIS) |
|
Pressure Rating |
PN10 (10 bar / 150 psi) |
|
Set Pressure Range |
0.5 to 6 bar (7 to 87 psi), adjustable |
|
Temperature Range |
0°C to 60°C (32°F to 140°F) |
|
Size Range |
½” to 4” (20 mm to 110 mm) |
|
Flow Direction |
Unidirectional |
|
Standard Compliance |
ASTM D1784, ISO 9393, DIN / ANSI Standards |
|
Applications |
Water supply systems, irrigation networks, chemical dosing, and industrial fluid control systems |
