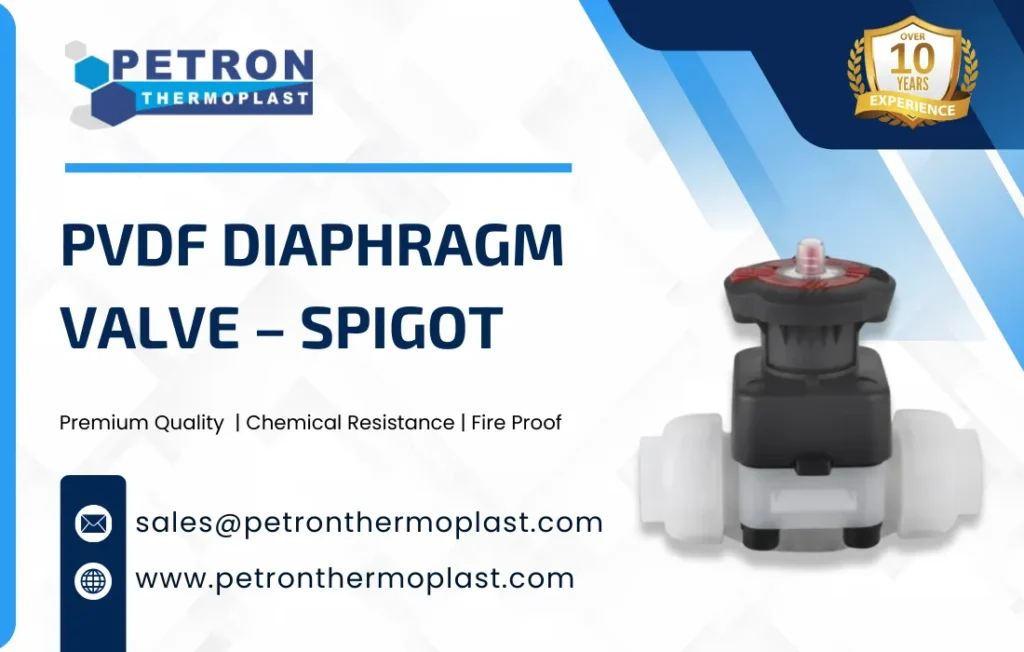

PVDF Diaphragm Valve Spigot
The PVDF Diaphragm Valve Spigot is a specialized valve designed for precise flow control and isolation in corrosive and demanding industrial environments. Constructed from high-grade Polyvinylidene Fluoride (PVDF), it offers exceptional chemical resistance, mechanical strength, and durability. The spigot end connection provides a smooth and secure fit into piping systems without the need for flanges or threads, simplifying installation in compact spaces. This diaphragm valve uses a flexible elastomeric diaphragm to regulate flow, ensuring leak-tight sealing and minimal contamination, making it ideal for applications in chemical processing, pharmaceuticals, water treatment, and semiconductor industries.
Key Features of PVDF Diaphragm Valve Spigot
Superior Chemical Resistance: PVDF body ensures excellent resistance to a wide range of aggressive chemicals and solvents.
Spigot End Connection: Allows easy insertion into pipes with solvent welding or butt fusion, providing a secure and seamless joint.
Diaphragm Sealing: Flexible diaphragm isolates the fluid from the valve’s mechanical parts, preventing contamination and leakage.
Smooth Flow Control: Offers precise throttling capabilities with minimal pressure loss.
Corrosion and Wear Resistant: Durable construction for extended service life in harsh environments.
Compact Design: Ideal for installations with limited space due to its spigot connection and lightweight build.
Wide Application Range: Suitable for chemical, pharmaceutical, water treatment, and semiconductor process lines.
Low Maintenance: Simple design with easy diaphragm replacement reduces downtime.
Technical Information
| Specification | Details |
|---|---|
|
Body Material |
PVDF (Polyvinylidene Fluoride) |
|
Diaphragm Material |
EPDM, FKM (Viton), or PTFE lined elastomer |
|
Connection Type |
Spigot end (for solvent welding or fusion) |
|
Pressure Rating |
Up to 10 bar (varies with size and diaphragm) |
|
Temperature Range |
-10°C to +120°C |
|
Sizes Available |
DN15 to DN100 (½” to 4”) |
|
Operation |
Manual (handwheel or lever), Pneumatic (optional) |
|
Flow Characteristic |
Linear or equal percentage |
|
Sealing Type |
Diaphragm seal (leak-proof and contamination-free) |
|
Applications |
Chemical processing, pharmaceuticals, water treatment, semiconductor manufacturing |
PVDF Valves
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
