PVDF Pressure Reducing Valve
The PVDF Pressure Reducing Valve is a precision-engineered valve designed to automatically reduce and regulate high inlet pressure to a stable, lower outlet pressure in fluid systems. Constructed from high-quality Polyvinylidene Fluoride (PVDF), this valve offers excellent chemical resistance, making it ideal for corrosive, acidic, or high-purity fluid applications. It is widely used in chemical processing, water treatment, semiconductor manufacturing, and other industries requiring reliable pressure control for safe and efficient operation.
Key Features of PVDF Pressure Reducing Valve
Corrosion-Resistant Body: Made entirely from PVDF for outstanding resistance to harsh chemicals and UV exposure.
Stable Pressure Control: Maintains consistent downstream pressure regardless of inlet pressure fluctuations.
Self-Actuating: Operates without external power, using internal spring mechanisms for automatic pressure regulation.
Compact Design: Lightweight and easy to install in tight spaces.
Adjustable Setpoint: Outlet pressure can be adjusted to match system requirements.
Smooth Flow Control: Minimizes pressure surges and water hammer effects.
Low Maintenance: Durable materials ensure long service life with minimal upkeep.
Wide Application Range: Suitable for aggressive chemical media, ultra-pure fluids, and corrosive environments.

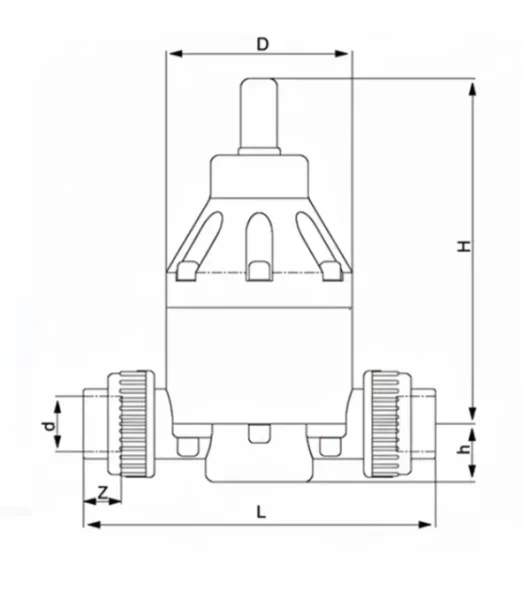

Technical Information
| Technical Parameter | Specification |
|---|---|
|
Body Material |
PVDF (Polyvinylidene Fluoride) |
|
Seal Material |
PTFE, EPDM, or FKM (depending on media) |
|
Valve Type |
Pressure Reducing Valve |
|
Connection Type |
Flanged, Threaded, or Socket Weld |
|
Size Range |
1/2″ to 4″ (15 mm to 100 mm) |
|
Pressure Rating |
Up to 10 bar |
|
Temperature Range |
-20°C to +120°C (depending on seal material) |
|
Pressure Reduction Range |
Adjustable (typically up to 70% reduction) |
|
Operation Mode |
Self-actuating, spring-loaded |
|
Mounting Position |
Any |
|
Standards Compliance |
ISO, ANSI, DIN (depending on model) |
PVDF Valves
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
